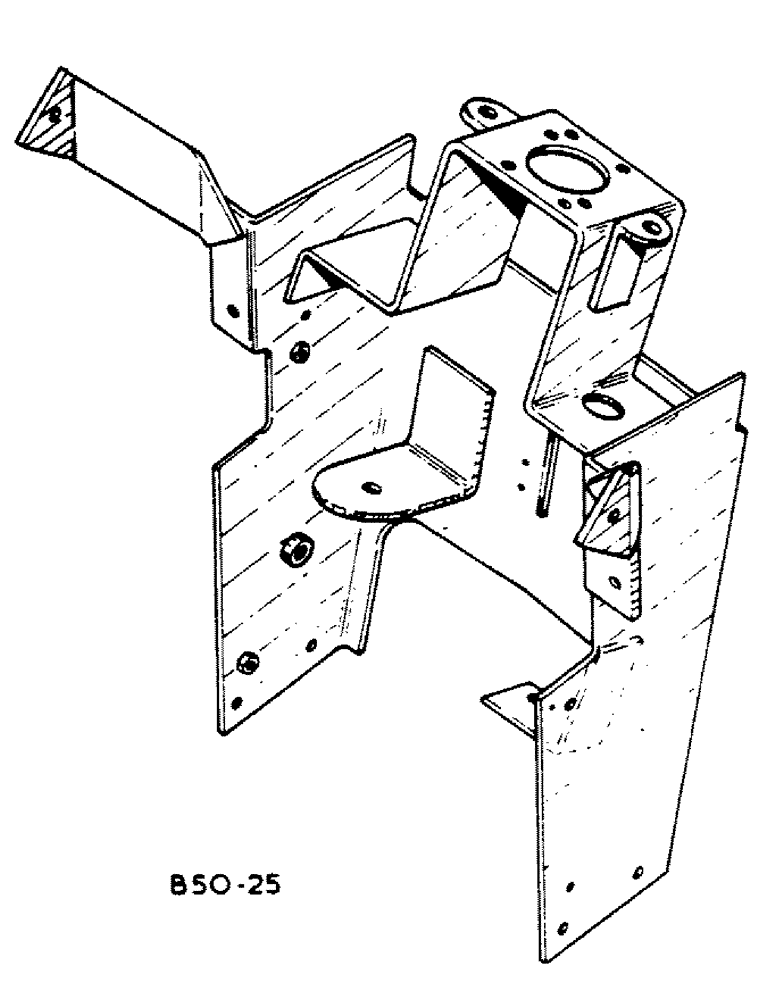

Запчасти Case IH 784 (13-08) - SUPERSTRUCTURE, STEERING SUPPORT (05) - SUPERSTRUCTURE

1

3121632R2

SUPPORT ASSY.

SUPPORT ASSY, steering

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

160221

SCREW,Cross Pan Hd, #12 - 24 x 1/2"

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

225-14112

NUT,#12-24

no. 12 mach screw type 1, harness ground on steering support

1шт.
