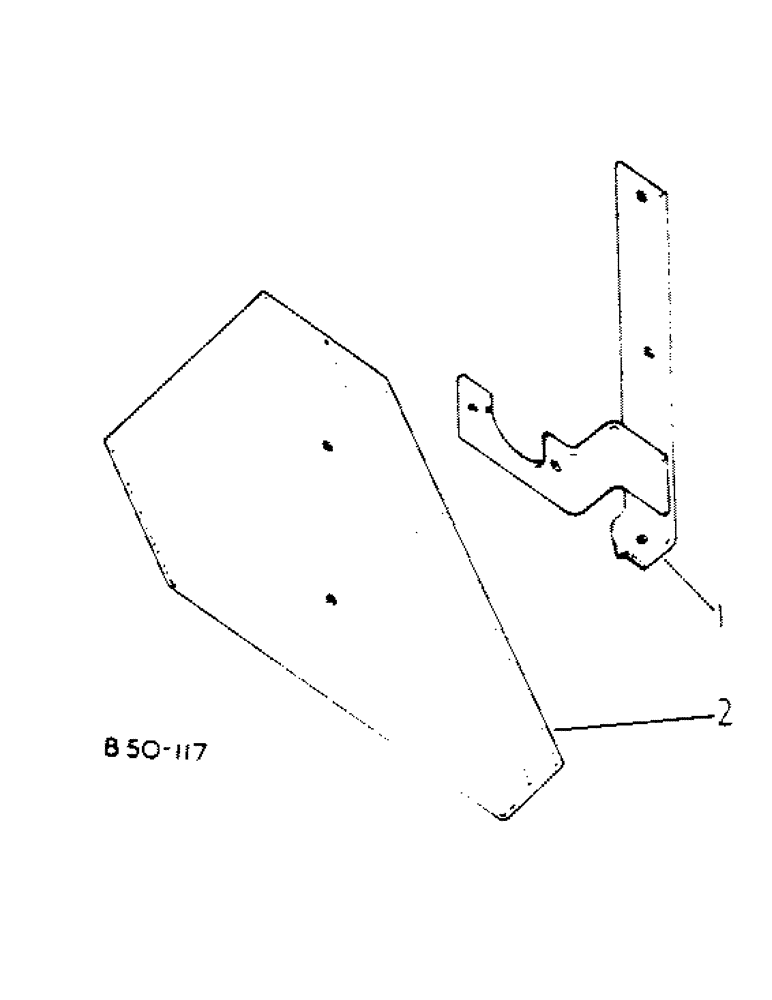

Запчасти Case IH 784 (02-01) - MISCELLANEOUS, PRODUCT GRAPHIC Accessories & Attachments / Miscellaneous
№
Артикул
Название
Примечание
Количество
1135266R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, 784 International LH, utility tractors
1шт.
1135274R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, 784 International LH, row crop and all wheel drive tractors
1шт.
1135267R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, 784 International RH, utility tractors
1шт.
1135275R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, 784 International RH, row crop and all wheel drive tractors
1шт.
1265139C1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, caution instruction tractors w/o cab
1шт.
111480C3
DECAL
PRODUCT-GRAPHIC, caution instruction tractors w/ cab
1шт.
533864R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, diesel fuel
1шт.
65771C1
DECAL
PRODUCT-GRAPHIC, side PTO caution inst
1шт.
537665R1
DECAL
PRODUCT-GRAPHIC, transmission control, Z pattern shift
1шт.
537662R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, PTO and raise response guide, Z pattern shift
1шт.
1135102R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, PTO and raise response guide, H pattern shift
1шт.
537663R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, drop response guide
1шт.
537664R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, draft control guide
1шт.
1093228R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, patent
1шт.
1135126R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, fuel control
1шт.
1093171R1
DECAL
PRODUCT-GRAPHIC, product operation warning instruction
1шт.
1093172R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, engine oil instruction
1шт.
1093173R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, fuel filter and water separator instructions
1шт.
1093174R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, alternator
1шт.
1093175R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, anti-freeze
1шт.
1135340R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, fuse box symbols
1шт.
1093204R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, 7 pin socket
1шт.
64520C1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, operator caution
1шт.
64553C2
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, power drive caution
1шт.
1135299R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, torque amplifier
1шт.
533592R1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, governor control
1шт.
1265125C1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, dual speed PTO
1шт.
1265116C1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, light switch
1шт.
1265117C1
PRODUCT GRAPHIC
PRODUCT-GRAPHIC, turn signal
1шт.
1273644C1
DECAL
PRODUCT-GRAPHIC, dimmer switch
1шт.
1287945C1
DECAL
PRODUCT-GRAPHIC, IPTO overspeed 600 RPM maximum
1шт.
1135278R1
PRODUCT GRAPHIC
DECALS, on side of the dash that match the hood stripe, see Fig. 13-3
1шт.
1135279R1
PRODUCT GRAPHIC
DECALS, on side of the dash that match the hood stripe, see Fig.13-3
1шт.
Выбрано товаров: 33
