Запчасти Case IH 784 (07-71) - DRIVE TRAIN, PROTECTION SHIELDS, FOUR WHEEL DRIVE SHAFT (04) - Drive Train

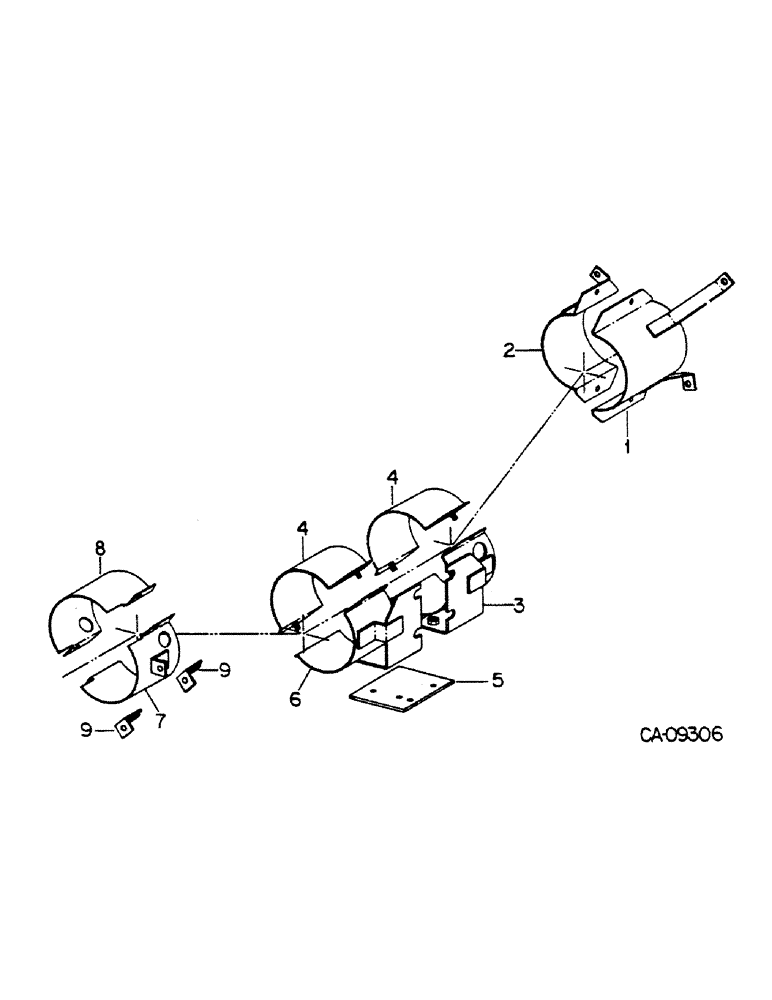

Схема запчастей Case IH 784 - (07-71) - DRIVE TRAIN, PROTECTION SHIELDS, FOUR WHEEL DRIVE SHAFT (04) - Drive Train
4
6
7
4
9
3
5
9
2
8
1

Артикул

Название

Примечание

Количество

1

82170C1

SHIELD

ASSY, front axle outer

1шт.

2

82171C1

SHIELD

ASSY, front axle inner

1шт.

30359R1

NUT

M10 znd class 8

3шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

934310R1

NUT,M8, Cl 8

M8 class 8

2шт.

3

82159C1

SHIELD

ASSY, pillowback front, outer

1шт.

4

82195C1

SHIELD

ASSY, pillowback, inner

2шт.

934310R1

NUT,M8, Cl 8

M8 class 8

4шт.

5

82177C1

PLATE

includes bolts

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

6

82160C1

SHIELD

ASSY, pillowback rear, outer

1шт.

7

82163C1

SHIELD

ASSY, rear, outer

1шт.

8

82161C1

SHIELD

rear inner

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

5шт.

934310R1

NUT,M8, Cl 8

M8 class 8

2шт.

9

82164C1

ANGLE

ASSY, shield mtg

2шт.

Выбрано товаров: 16
