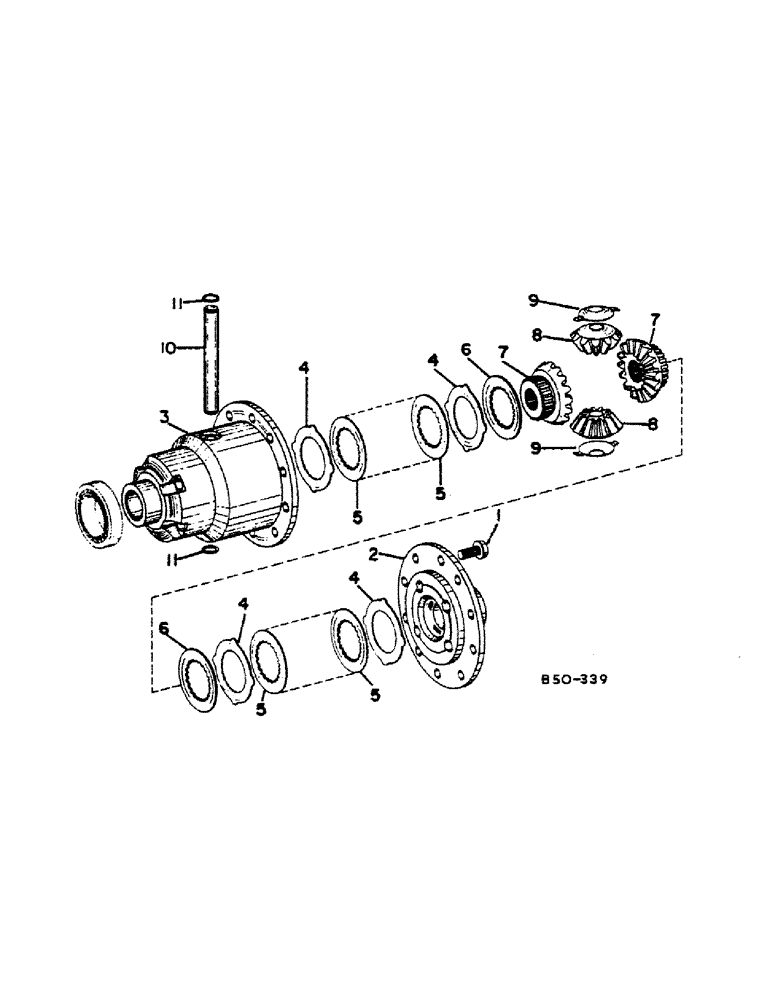

Запчасти Case IH 784 (07-66) - DRIVE TRAIN, DIFFERENTIAL, ALL WHEEL DRIVE, ZF AXLE (04) - Drive Train
5
4
10
6
5
9
8
5
2
5
4
1
11
3
7
8
4
9
6
7
4
11
№
Артикул
Название
Примечание
Количество
1
3230285R1
BOLT
M10 x 22 locking
10шт.
2
CASE, differential
1шт.
Ref. 2, for ZF axle is P/N 3230282R1.
1шт.
3
CASE, differential, part of ref no. 2
1шт.
4
3223459R1
SHIM
PLATE, driven
10шт.
5
3223460R1
DRIVE PLATE
PLASTE, drive
8шт.
6
3223463R1
FIN
PLATE, thrust 2.8mm
2шт.
6
3223462R1
PLATE, THRUST
2.9mm
2шт.
6
3223461R1
WASHER
PLATE, thrust 3.0mm
2шт.
7
3230283R1
GEAR
differential side
2шт.
8
3230284R1
GEAR
differential pinion
2шт.
9
3147204R1
WASHER, THRUST
2шт.
10
SHAFT, differential
1шт.
11
3139039R1
RING, SNAP
2шт.
Выбрано товаров: 14
