Запчасти Case IH 784 (07-63) - DRIVE TRAIN, STEERING KNUCKLE ASSEMBLY, ALL WHEEL DRIVE, ZF AXLE (04) - Drive Train

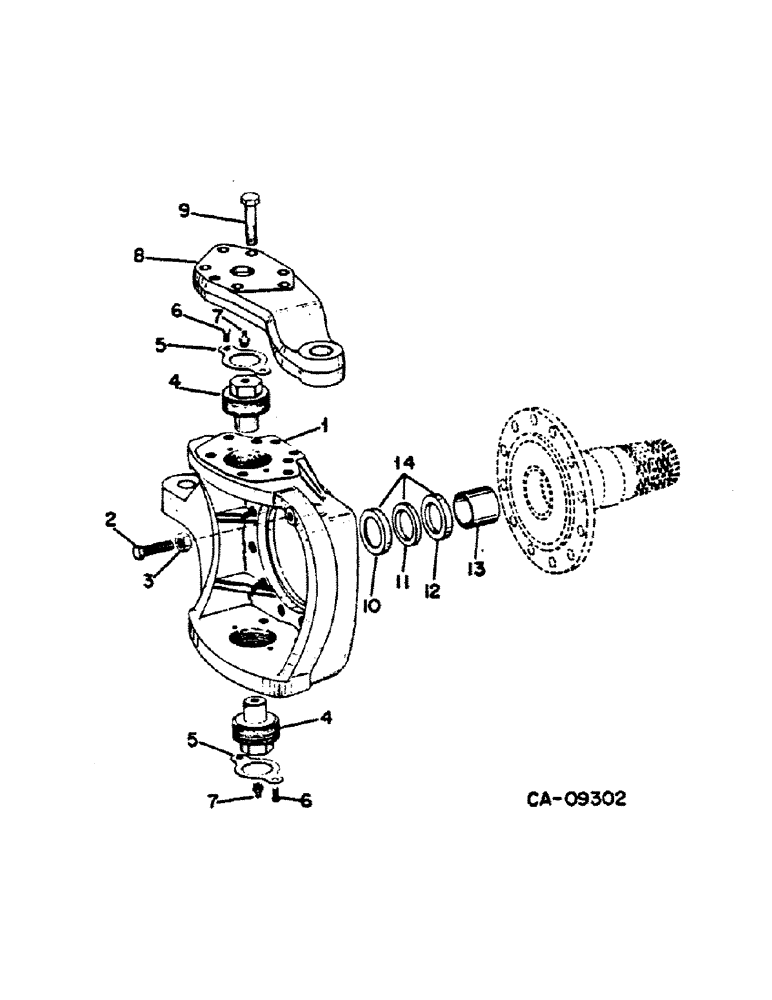

Схема запчастей Case IH 784 - (07-63) - DRIVE TRAIN, STEERING KNUCKLE ASSEMBLY, ALL WHEEL DRIVE, ZF AXLE (04) - Drive Train
13
12
4
11
7
14
4
10
6
2
3
9
5
8
6
1
5
7

Артикул

Название

Примечание

Количество

1

3230955R1

HOUSING

steering knuckle RH

1шт.

1

3230954R1

HOUSING

steering knuckle LH

1шт.

2

3134225R1

BOLT

M12 x 40

4шт.

3

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

hex M12

4шт.

4

3216588R1

LARGE PIN

PIN, axle king

4шт.

5

3216589R1

PLATE, LOCKING

4шт.

6

930107R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

SCREW, M6 x 10

8шт.

7

712992R91

LUBE NIPPLE

FITTING

1шт.

8

1502271C1

STRAP

ARM, steering

1шт.

3230953R1

COVER

king pin

1шт.

9

3229114R1

LOCK BOLT

M14 x 50

6шт.

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

Hex, M14 x 50, 8.8

4шт.

10

HOLDER, order 3405555R1

4шт.

11

SEAL, felt, order 3405555R1

4шт.

12

SEAL, oil, order 3405555R1

4шт.

13

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

4шт.

14

3405555R1

SEAL

ASSY, includes ref no. 10, 11 and 12

4шт.

Выбрано товаров: 17
