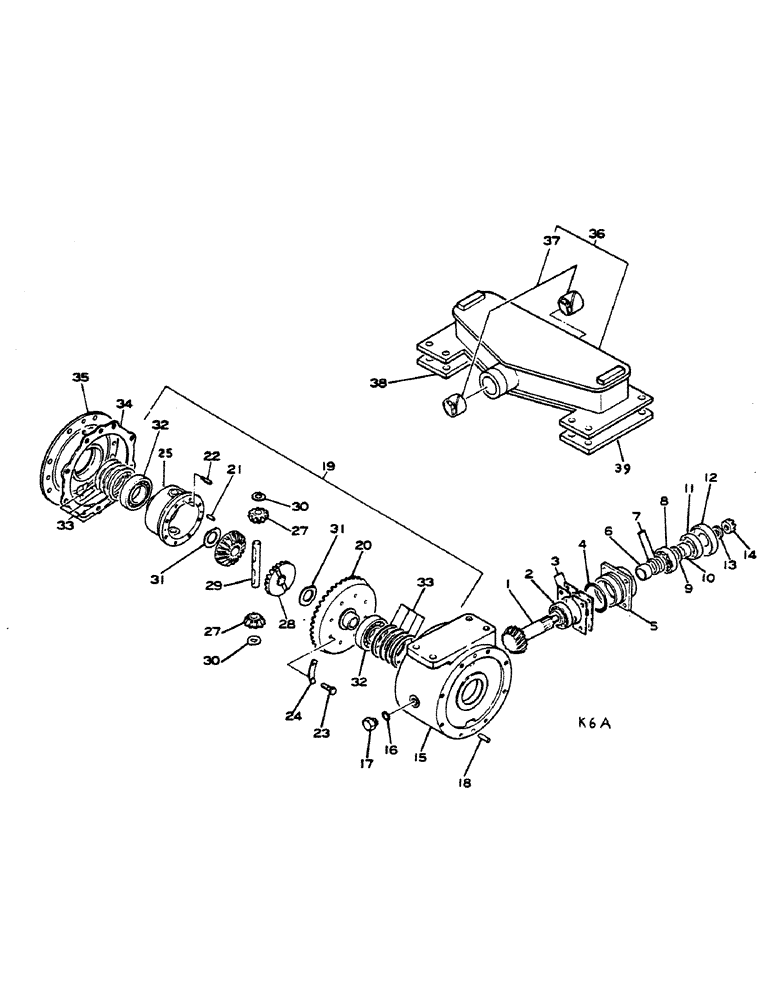

Запчасти Case IH 784 (07-59) - DRIVE TRAIN, DIFFERENTIAL, ALL WHEEL DRIVE, KIMCO AXLE (04) - Drive Train

1

1014543C91

GEAR-SET

SET, bevel pinion shaft and gear, consists of ref no. 1 and 20

1шт.

Ref. 1 is not a part of the Ref. 19 Differential Gear Assy.

1шт.

2

984144C2

BEARING

front pinion

1шт.

3

984143C1

SHIM

0.5mm

1шт.

3

984142C1

SHIM

0.2mm

1шт.

4

1014680C1

O-RING

1шт.

5

984633C2

RETAINER

pinion

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

131099

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

984636C2

COLLAR

1шт.

7

984621C2

SHIM

0.1mm

1шт.

7

984622C2

SHIM

0.05mm

1шт.

8

984634C1

ROLLER BEARING,31.75 mm ID x 62.001 mm OD

pinion rear

1шт.

9

22458R1

O-RING,1.489" ID x 1.629" OD x 0.07"

1-1/2 x 1-5/8 class 5

1шт.

10

1004317C1

COLLAR

1шт.

11

1004318C1

OIL SEAL

SEAL, oil

1шт.

12

1002409C2

COVER

oil seal

1шт.

13

1003725C1

WASHER

1шт.

14

1003759C1

NUT,5/8"-18

NUT includes pin

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

15

1004729C2

CASE

differential

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

17

9410360

PLUG

5/8 C-Z str thd o-ring boss

2шт.

18

974173C1

PIN

4шт.

19

984164C93

GEAR

ASSY, differential

1шт.

20

GEAR, bevel, order bevel gear set

1шт.

21

1014966C1

PIN

dowel

2шт.

22

973686C2

BOLT,28mm L

set

1шт.

23

931542R1

BOLT

8шт.

24

973687C1

LOCK WASHER

lock

4шт.

25

984117C2

CARRIER

differential

1шт.

26

(Not used this application)

1шт.

27

984880C91

GEAR

ASSY, pinion, consists of

1шт.

973690C4

GEAR WHEEL

GEAR

2шт.

984881C1

BUSHING

2шт.

28

984078C1

GEAR

side

2шт.

29

973692C3

PIN

pinion gear

1шт.

30

984882C1

THRUST WASHER

thrust

2шт.

31

973694C2

THRUST WASHER

thrust 2.15mm

1шт.

31

974001C2

THRUST WASHER

thrust 2.0mm

1шт.

32

1014679C1

BEARING, BALL

BEARING

2шт.

33

973697C1

SHIM

0.05mm

1шт.

33

973698C1

SHIM

0.2mm

1шт.

33

973699C1

SHIM

0.3mm

1шт.

33

973700C1

SHIM

0.5mm

1шт.

34

973639C2

GASKET

rear axle

1шт.

35

984205C1

CARRIER

1шт.

36

984781C95

SUPPORT

ASSY

1шт.

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

hardened

2шт.

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 90 deg

1шт.

37

984912C1

BUSHING

pivot

2шт.

38

1014546C2

SPACER

, Serial Range: -4018

2шт.

38

1004397C1

SPACER

, Start Serial: 4019

1шт.

38

1061954C1

SPACER

1шт.

25496R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

3/8 x 7/8 PHC type 8

1шт.

24876C1

SCREW, 5/8-11 x 2-1/4

6шт.

752904R1

NUT

NUT, lock 5/8-11, LH front, rear and RH front

6шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, , RH rear 5/8"

2шт.

1004382C1

GASKET

1шт.

39

1014546C2

SPACER

1шт.

Tractor serial no. 686 and below.

1шт.

39

1004398C1

SPACER

, Serial Range: -4018

1шт.

Tractor serial no. 687 and above.

1шт.

39

1061954C1

SPACER

, Start Serial: 4019

1шт.
