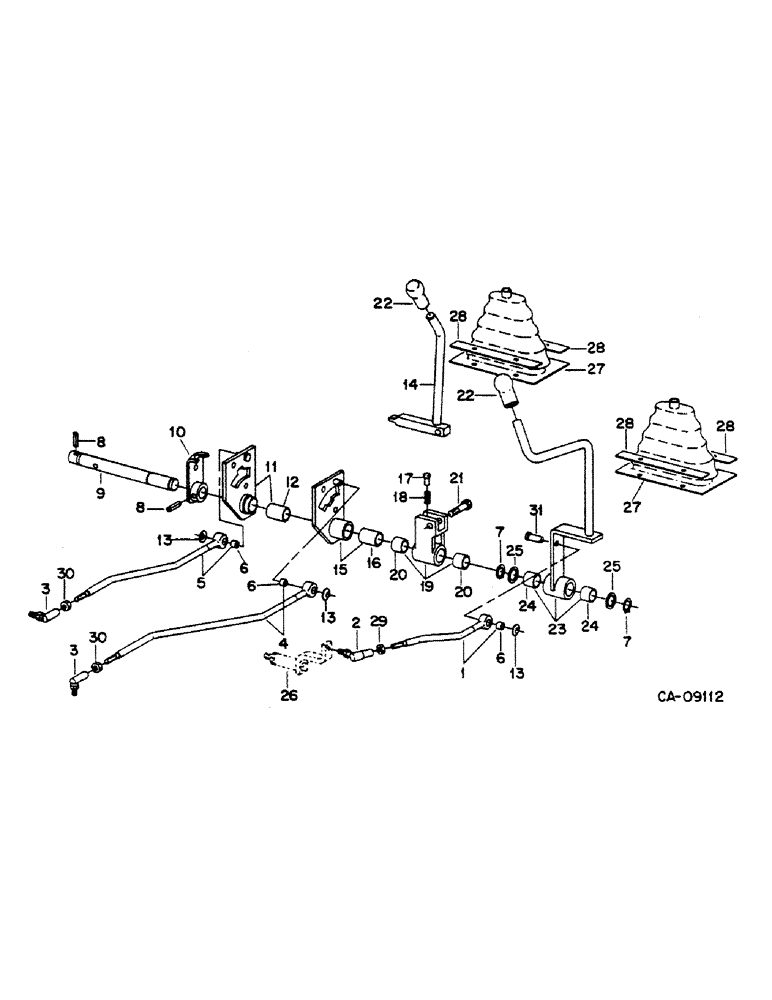

Запчасти Case IH 784 (07-37) - DRIVE TRAIN, TRANSMISSION CONTROLS, EXTERNAL, TRACTORS WITH FORWARD AND REVERSE (04) - Drive Train

1

3129232R91

ROD ASSY.

ROD, shift, includes ref no. 6

1шт.

2

653867C1

BALL JOINT

JOINT, 3/8 C-Z type G-4 ball

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

3

1500497C1

BALL JOINT

JOINT, ball

2шт.

274841

BEARING CONE,2.9528" ID x 0.9843"

NUT, 7/16-NF CAD P/T lock type 5, or

2шт.

702455R1

LOCK NUT

7/16-20 prev. torque turrent

2шт.

4

3129226R91

ROD ASSY.

ROD ASSY, speed shift, 3rd/4th, includes ref no. 6

1шт.

5

3129222R91

ROD ASSY.

ROD ASSY, speed shift, 1st/2nd, includes ref no. 6

1шт.

6

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end eye

3шт.

7

454331R1

SNAP RING,#87, Ext

2шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

2шт.

9

3129270R1

SHAFT

range shift lever

1шт.

10

3129218R2

PLATE

GATE ASSY, shift

1шт.

11

3129211R91

LEVER ASSY.

LEVER ASSY, shift, 1st/2nd, includes ref no. 12

1шт.

Q3641

WASHER

.406 x .750 x .021 pln

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

13

83723R1

WAVE WASHER

wave

3шт.

14

3129265R2

LEVER

speed shift

1шт.

See SB00688, sector arm housing P/N 3129214R92.

1шт.

15

3129217R91

LEVER ASSY.

LEVER ASSY, speed shift, 3rd/4th, includes ref no. 16

1шт.

Q3641

WASHER

.406 x .750 x .021 pln

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

16

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

17

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

18

71486C1

SPRING

1шт.

19

3129214R92

HOUSING ASSY.

HOUSING ASSY, selector arm, includes ref no. 20

1шт.

20

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

housing

2шт.

21

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, , Selector arm pivot 3/8" x 2", Serial Range: -9399

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot, Start Serial: 9400

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

22

1265216C1

BALL KNOB

KNOB, shift lever, replaces 3129267R1

2шт.

23

3129271R92

LEVER ASSY.

LEVER ASSY, range shift, includes ref no. 24

1шт.

24

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

range shift lever

2шт.

25

615192R1

WASHER

.906 x 1.250 x .027 pln

2шт.

26

ARM ASSY, range shift outer rear, see gear mechanism range

1шт.

27

1502031C1

BOOT

control lever

2шт.

28

1502032C1

STRIP

retaining

4шт.

28

1283389C1

STRIP

retaining, 1 used on RH side of RH boot on tractors w/ROPS

1шт.

27046R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

SCREW, no. 8-18 x 7/8 PHC P/HDCR tap

8шт.

29

3048059R91

LOCK NUT

NUT, 3/8-24 hex lock

1шт.

30

1500536C1

JAM NUT

7/16-28 hex jam

2шт.

31

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1.218 PHC clevis

1шт.

Q3641

WASHER

.406 x .750 x .021 pln

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

1135111R1

DECAL

PRODUCT GRAPHIC, range, high and low

1шт.

P/N 1135111R1 Decal has rabbit on top and turtle on bottom, not H & L.

1шт.

533593R1

PRODUCT GRAPHIC

forward/reverse

1шт.

1135097R1

DECAL

PRODUCT GRAPHIC, 1/2 speed

1шт.

1135098R1

DECAL

PRODUCT GRAPHIC, 3/4 speed

1шт.
