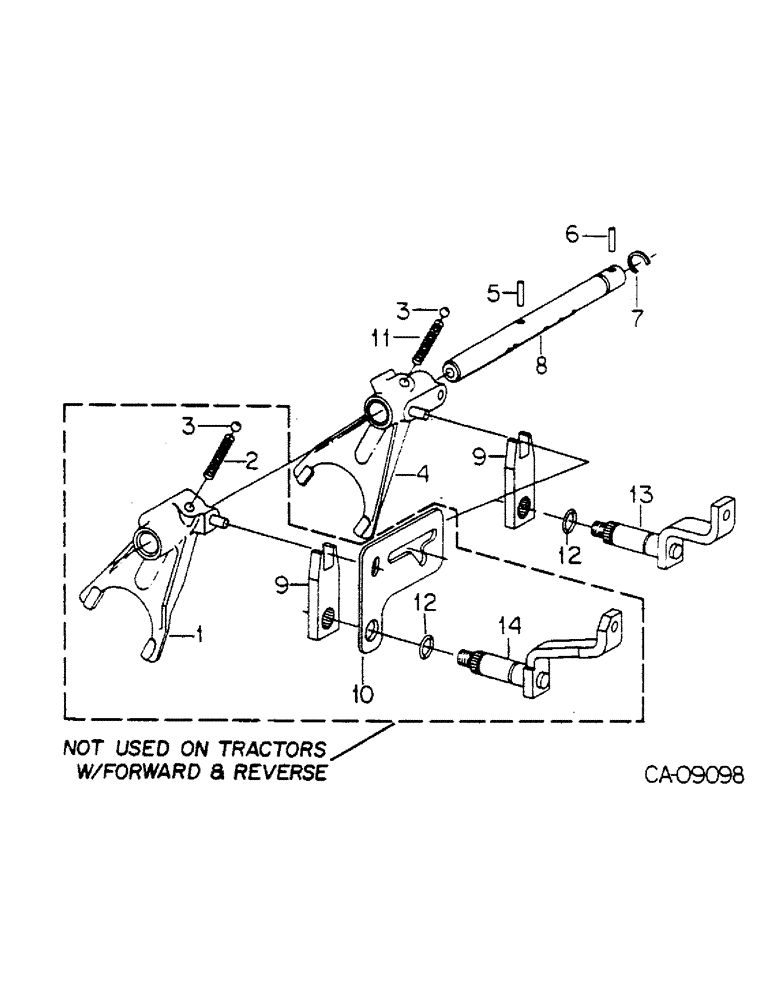

Запчасти Case IH 784 (07-31) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION, H PATTERN SHIFT, TRACTORS W/ S/N 9399 & BELOW (04) - Drive Train

1

538911R4

FORK

front

1шт.

Tractors without forward and reverse

1шт.

2

103062C1

SPRING

poppet ball, front fork

1шт.

3

17013R1

BALL,13/32" Dia

2шт.

4

538912R4

FORK

rear

1шт.

Tractors without forward and reverse

1шт.

4

538913R4

FORK

rear

1шт.

Tractors with forward and reverse

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

Tractors without forward and reverse

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail #75, Ext

1шт.

8

537473R3

RAIL

range shift fork

1шт.

Tractors without forward and reverse

1шт.

8

402150R1

RAIL

range shift fork

1шт.

Tractors with forward and reverse

1шт.

9

405169R2

ARM

range shift inner

2шт.

10

1286419C1

PLATE, LOCKING

PLATE, interlock range, replaces 1265223C1

1шт.

Tractors without forward and reverse

1шт.

11

534053R1

SPRING

poppet ball

1шт.

12

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 class 6

2шт.

13

405167R3

ARM

ASSY, range shift outer rear

1шт.

Q3501

WASHER

.781 x 1.250 x .054 pln

2шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln P/T lock type 5

1шт.

14

405164R4

ARM

ASSY, range shift outer front

1шт.

Tractors without forward and reverse

1шт.

Q3501

WASHER

.781 x 1.250 x .054 pln

2шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln P/T lock type 5

1шт.

1288283C1

PACKAGE,SERVICE

PACKAGE, internal range shift service, consists of, Serial Range: -9399

1шт.

Tractors without forward and reverse

1шт.

1286428C1

FORK

ASSY, front

1шт.

1286416C1

FORK

ASSY, rear

1шт.

1286415C1

RAIL

range shift

1шт.

148501C1

RING, SNAP

RING, retaining

2шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

103062C1

SPRING

2шт.

17013R1

BALL,13/32" Dia

2шт.

1286421C1

ARM

range shift

2шт.

1286423C1

BUSHING

range shift

2шт.

1286419C1

PLATE, LOCKING

PLATE, interlock

1шт.

1286444C2

STRIP

retainer

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln

10шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln P/T lock type 5, instructions, installing (NSS)

2шт.
