Запчасти Case IH 784 (07-12) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

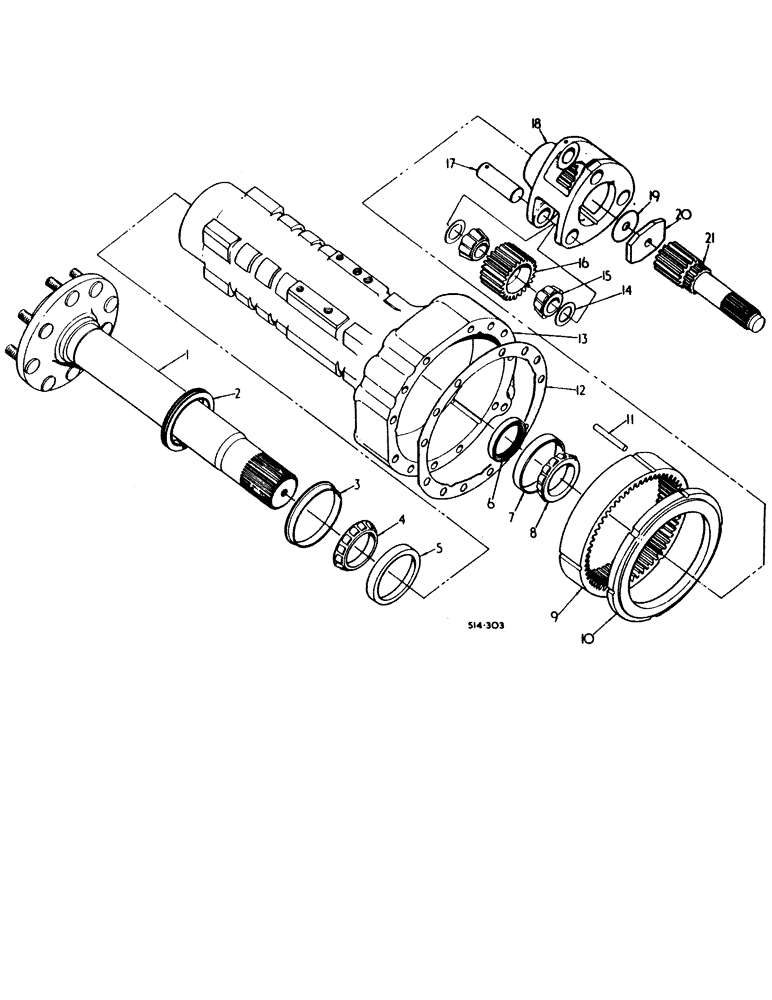

Схема запчастей Case IH 784 - (07-12) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train
5
10
21
1
13
16
2
15
11
3
17
7
9
14
19
18
12
4
20
6
8

Артикул

Название

Примечание

Количество

1

404340R13

SPARE PART

AXLE ASSY, rear, utility tractors

2шт.

Ref.1 P/N 404340R13 see sec 15 Fig. 3. Ref. 5 for keyed clamp. Key is not a serviced item. New clamp must be purhased.

1шт.

1

527353R11

AXLE, REAR

AXLE ASSY, rear, row crop tractors

1шт.

Ref 1A P/N 527353R11 has a keyed shaft, without studs.

1шт.

P/N 527353R11 has P/N 535862R1 Sleeve as part of the Axle. 3.130 I.D., 3.62 O.D. & .700 wide

1шт.

1

404345R13

HALF SHAFT

AXLE ASSY, rear, utility and all wheel drive tractors

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

2

105471C1

OIL SEAL

SEAL, rear axle outer oil

2шт.

3

399796R1

SLEEVE

wear

2шт.

4

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

rear axle outer cone

2шт.

5

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, rear axle outer cup

2шт.

6

530102R91

OIL SEAL

SEAL, rear axle inner oil

2шт.

7

ST981

BEARING CONE,112.71mm OD x 19.05mm W

BEARING, rear axle inner cup

2шт.

8

972467R91

BEARING ASSY

ASSY, rear axle inner

2шт.

9

535317R1

GEAR, RING

66T

2шт.

10

114620C1

RING,260mm OD

brake outer disc

2шт.

11

529686R1

DOWEL

PIN, 3/8 x 2-1/4 dowel

6шт.

12

399762R3

GASKET

rear axle carrier

2шт.

13

3123815R2

CARRIER

rear axle LH, utility and all wheel drive tractors

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

11шт.

13

3123817R2

CARRIER

rear axle LH, row crop tractors

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

10шт.

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

5/8 x 6-1/4 PHC type 8

1шт.

13

3123816R1

CARRIER

rear axle RH, utility and all wheel drive tractors

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

11шт.

13

3123818R1

CARRIER

rear axle RH, row crop tractors

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

10шт.

20926R1

SCREW, 7/8-9 x 10 cap

1шт.

14

65421C1

SHIM KIT

PACKAGE, planet gear shim service

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, planet gear cone

12шт.

16

66128C2

PINION

GEAR, planet

6шт.

17

399812R1

SHAFT

PIN, planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

114613C1

CARRIER

planet gear, on orders for 404344R2, furnish 114613C1 w/ 3 of 66128C2

2шт.

19

65422C1

SHIM KIT

PACKAGE, rear axle retainer shim

1шт.

20

399748R1

SPACER

planet carrier ret

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-NF x 1-1/2 pln type 8, bolt

2шт.

21

404343R1

SHAFT

planetary drive RH

1шт.

21

404342R1

SHAFT

planetary drive LH

1шт.
