Запчасти Case IH 784 (07-06) - DRIVE TRAIN, CLUTCH, 11 INCH, DANA, SERIAL NO. 9490 AND BELOW (04) - Drive Train

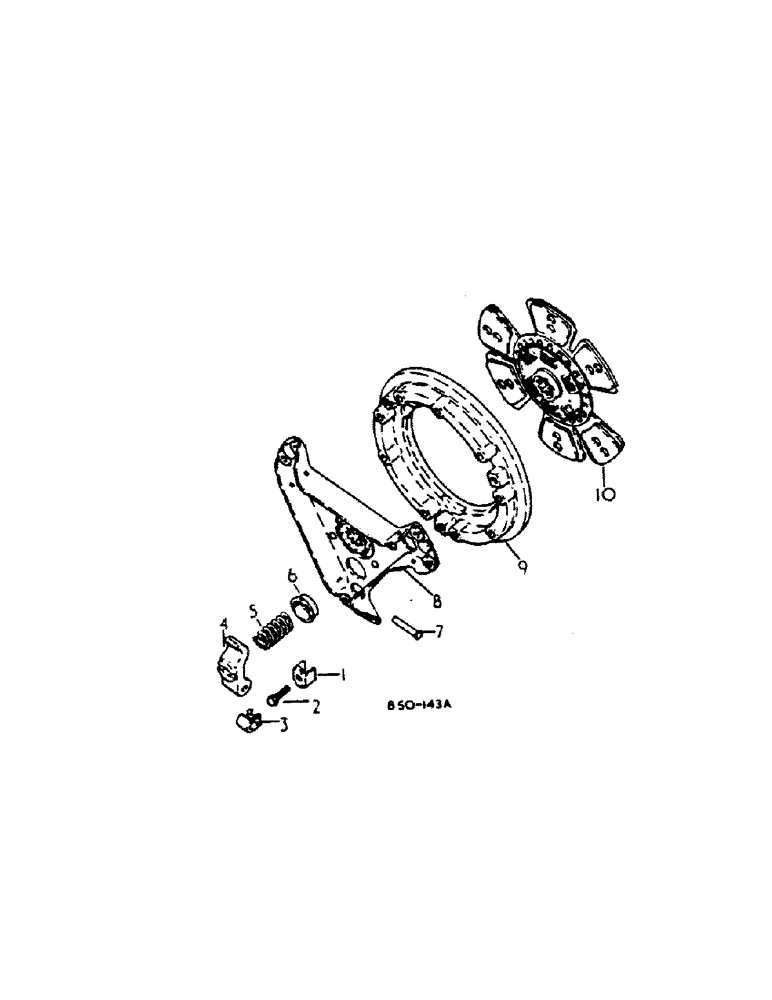

Схема запчастей Case IH 784 - (07-06) - DRIVE TRAIN, CLUTCH, 11 INCH, DANA, SERIAL NO. 9490 AND BELOW (04) - Drive Train
8
1
7
4
9
6
10
3
5
2

Артикул

Название

Примечание

Количество

70716C1

COVER ASSY

PLATE ASSY, clutch pressure, consists of ref nos. 1 thru 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

WASHER

3шт.

2

69911C1

KIT

KIT, cover parts with screw, clip, nut and washer nut, 5/16-24 hex

3шт.

3

CLIP, return

3шт.

4

69912C1

KIT

KIT, lever and pivot pin

1шт.

5

69910C2

KIT

KIT, pressure spring and cup

1шт.

6

CUP, spring

3шт.

7

PIN, pivot

3шт.

8

69914C1

HUB ASSY.

KIT, bracket and hub

1шт.

9

69913C1

KIT

KIT, pressure plate

1шт.

10

3121507R93

CLUTCH DISC

CLUTCH DISK PLATE ASSY, clutch driven disc, or

1шт.

10

293248A1R

REMAN-CLUTCH DISC

784 w/Dana Clutch, SN 9490 & Below, Reman For New P/N 3121507R93

1шт.

10

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.

10

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

Remanufactured, Clutch Plate, 11 in, 10 Tooth Hub

1шт.

10

92602C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

10

70093C91

PLATE

PLATE ASSY, clutch driven disc

1шт.

Выбрано товаров: 18
