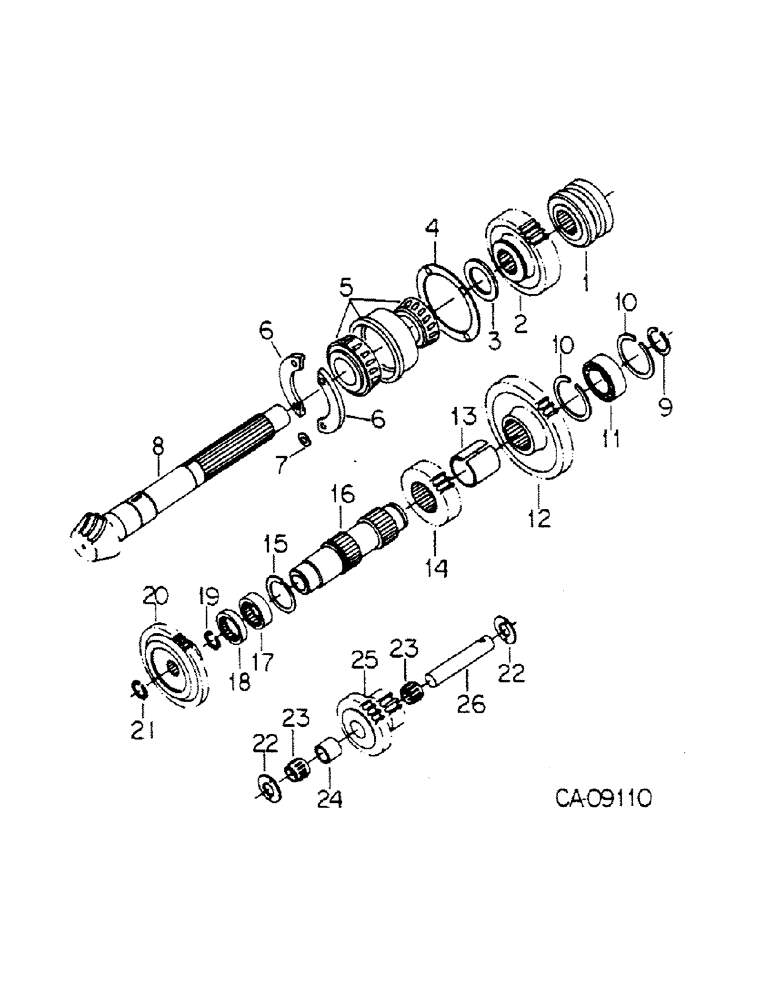

Запчасти Case IH 784 (07-03) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

1

1277137C1

COLLAR ASSY.

COLLAR, hi-speed shift, replaces collar 399830R2 below by also ordering gear 65782C1 or 399462R1, Serial Range: -9399

1шт.

2

1277141C1

GEAR

fwd/rev sliding, 41T, Replaces: 65782C1, slow speed train type D

1шт.

2

1286470C1

GEAR

fwd/rev sliding, 42T, Replaces: 399462R1, fast speed train type B and E

1шт.

3

65788C1

WASHER

bevel pinion shaft thrust

1шт.

4

SHIM, main shaft brg retainer .004

1шт.

4

SHIM, main shaft brg retainer .007, order package 65423C1

2шт.

5

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

ASSY, main shaft

1шт.

6

65784C2

RETAINER

ASSY, main shaft brg

2шт.

NLS

NO LONGER SERVICED

4шт.

7

65787C1

WASHER

brg, retainer screw

4шт.

8

SHAFT, pinion, order bevel gear set

1шт.

9

327068R1

RING, SNAP

RING, countershaft brg ext snap

1шт.

10

399832R1

RING, SNAP

RING, countershaft brg int snap

2шт.

11

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BEARING, countershaft front ball

1шт.

12

404097R1

GEAR

constant mesh, 46T

1шт.

13

399835R1

BUSHING

countershaft gears

1шт.

14

404100R1

PINION

GEAR, lo range driving, 27T, slow speed train type D

1шт.

14

103150C1

PINION

GEAR, lo range driving, 24T, fast speed train type B and E

1шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

RING, lo range driving gear ret snap

1шт.

16

404096R1

SHAFT

range transmission

1шт.

17

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft needle

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING, pump drive gear

1шт.

19

399837R1

SNAP RING,#118, 1.121", Ext

RING, pump drive gear

1шт.

20

404218R1

GEAR

pump drive, 55T

1шт.

21

533266R1

RING, SNAP

RING, IPTO front drive shaft rear snap

1шт.

22

3112846R1

THRUST WASHER

WASHER, idler thrust

2шт.

23

3113041R91

ROLLER CAGE BEARING

reverse idler gear needle

2шт.

24

3112845R1

SPACER

idler bearing

1шт.

25

3112843R1

GEAR

rev idler, 18 and 27T, slow speed train type D

1шт.

25

70298C1

PINION

GEAR, rev idler, 20 and 24T, fast speed train type B and E

1шт.

26

399838R3

SHAFT

reverse idler

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

65423C1

SHIM KIT

PACKAGE, main shaft brg cage shim service

1шт.
