Запчасти Case IH 784 (07-01) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train

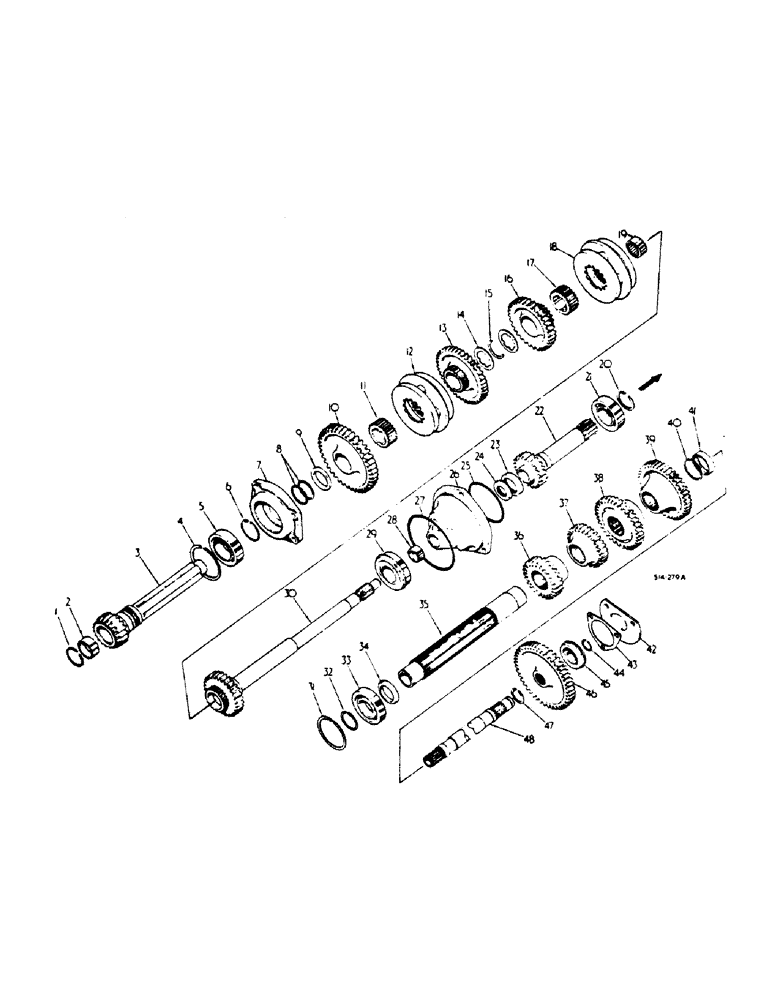

Схема запчастей Case IH 784 - (07-01) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train
5
38
25
8
21
19
48
13
18
26
4
1
9
36
30
12
27
37
14
41
32
29
42
46
24
39
23
11
17
44
6
28
31
22
33
40
15
2
45
10
35
7
20
34
3
16
47
43

Артикул

Название

Примечание

Количество

1

66014C1

SNAP RING

RING, front needle brg int snap

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

main shaft needle

1шт.

3

65258C1

SHAFT

main

1шт.

3

3118323R1

SHAFT

main, tractors w/torque amplifier

1шт.

4

398334R1

SNAP RING

RING, main shaft brg retainer inner snap

1шт.

5

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

BEARING, main shaft ball

1шт.

6

327068R1

RING, SNAP

RING, main shaft brg retainer outer snap

1шт.

7

534411R1

BEARING ASSY

CAGE ASSY, main shaft brg

1шт.

NLS

NO LONGER SERVICED

4шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

mainshaft lub line seal

2шт.

9

398332R1

WASHER

ring

1шт.

10

66153C2

PINION

GEAR, 1st speed driven, 45T, slow speed train type D

1шт.

10

398269R2

GEAR

1st speed driven, 44T, fast speed train type E

1шт.

10

398331R2

PINION

GEAR, 1st speed driven, 41T, fast speed train type B

1шт.

11

398325R1

HUB

1st and 2nd speed shift

1шт.

12

65793C2

SYNCHRONIZER

PACKAGE, synchronizer service

1шт.

13

66155C3

GEAR

2nd speed driven, 41T, slow speed train type D

1шт.

13

398270R3

PINION

GEAR, 2nd speed driven, 39T, fast speed train type E

1шт.

13

398330R3

PINION

GEAR, 2nd speed driven, 33T, fast speed train type B

1шт.

14

398328R2

THRUST WASHER

WASHER, main shaft thrust

2шт.

15

398329R1

CIRCLIP

RING, synchronizer locating snap

1шт.

16

398330R3

PINION

GEAR, 3rd speed driven, 33T, slow speed train type D

1шт.

16

398327R3

PINION

GEAR, 4th speed driven, 24T, fast speed train type B and E

1шт.

17

398325R1

HUB

3rd and 4th speed shift

1шт.

18

65793C2

SYNCHRONIZER

PACKAGE, synchronizer service

1шт.

19

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING, clutch shaft needle

1шт.

20

379511R1

SNAP RING,#177, 1.657", Ext

RING, IPTO drive shaft brg retainer snap

1шт.

21

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, IPTO drive shaft ball

1шт.

22

71230C2

SHAFT

IPTO drive

1шт.

23

SEAL, IPTO drive shaft oil, order kit 1277488C1

1шт.

24

SEAL, clutch shaft oil, order kit 1277488C1

1шт.

P/N 1277488C1 Seal Kit, P/N 1277443C1 Sleeve was removed from Kit. Retained for service.

1шт.

Oil seal change from approx 2 in O.D. to 1 3/4 O.D. Seal is P/N 1277488C2 kit. DLR can either order P/N 3125797R1 oil seal (2 in O.D.) or can order P/N 1277443C1 sleeve seal for cage assy. see serivce bulletin. 4854

1шт.

25

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8

1шт.

26

398318R41

CAGE ASSY.

CAGE ASSY, IPTO and clutch shaft brg, complete with bushing

1шт.

27

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-5/8 x 1/8 brg case

1шт.

28

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

clutch shaft

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING, clutch shaft ball

1шт.

30

1502168C1

SHAFT

clutch, Replaces: 398320R3

1шт.

When shaft 1502168C1 is furnished for service of shaft 398320R3, shaft 71230C2 must also be ordered.

1шт.

31

574964R1

RING, SNAP

RING, countershaft brg snap

1шт.

32

379511R1

SNAP RING,#177, 1.657", Ext

RING, countershaft brg snap

1шт.

33

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, countershaft ball

1шт.

34

398268R1

BUSHING

ring spacer

1шт.

35

404089R2

SHAFT

speed transmission

1шт.

36

66152C1

PINION

GEAR, 1st speed drive, 22T, slow speed train type D

1шт.

36

404095R1

GEAR

1st speed drive, 23T, fast speed train type E

1шт.

36

404093R1

GEAR

1st speed driven, 26T, fast speed train type B

1шт.

37

404093R1

GEAR

2nd speed drive, 26T, slow speed train type D

1шт.

37

404094R1

PINION

GEAR, 2nd speed drive, 28T, fast speed train type E

1шт.

37

404092R1

PINION

GEAR, 2nd speed driven, 34T, fast speed train type B

1шт.

38

404092R1

PINION

GEAR, 3rd speed drive, 34T, slow speed train type D

1шт.

38

404091R1

PINION

GEAR, 4th speed drive, 43T, fast speed train type B and E

1шт.

39

404090R1

PINION

GEAR, constant mesh driven, 39T

1шт.

40

398264R1

SNAP RING,#215, 2.026", Ext

RING, constant mesh driven gear retaining snap

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft front needle

1шт.

42

398259R1

LARGE PLATE

RETAINER, IPTO driven shaft front brg cap

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

43

398260R2

GASKET

IPTO driven shaft front brg retainer

1шт.

44

555601R1

RING, SNAP

RING, IPTO driven shaft front brg retainer snap

1шт.

45

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

BEARING, IPTO driven shaft front ball

1шт.

46

404214R1

GEAR

IPTO driven, 46T

1шт.

47

399837R1

SNAP RING,#118, 1.121", Ext

RING, IPTO driven gear retainer snap

1шт.

48

536748R1

SHAFT ASSY.

SHAFT ASSY, IPTO driven front

1шт.

Ref. 48 bearing in end of shaft is P/N 533325R91.

1шт.

1277488C1

GASKET KIT

KIT, seal, consists of sleeve, clutch shaft oil seal (NSS), seal, clutch shaft oil (NSS), seal, IPTO drive shaft oil (NSS)

1шт.

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL, clutch release sleeve carrier, or

1шт.

108982C1

OIL SEAL

SEAL, clutch release sleeve carrier

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 class 5, sleeve, installation (NSS), sleeve, installation (NSS), instructions (NSS)

1шт.

Выбрано товаров: 69
