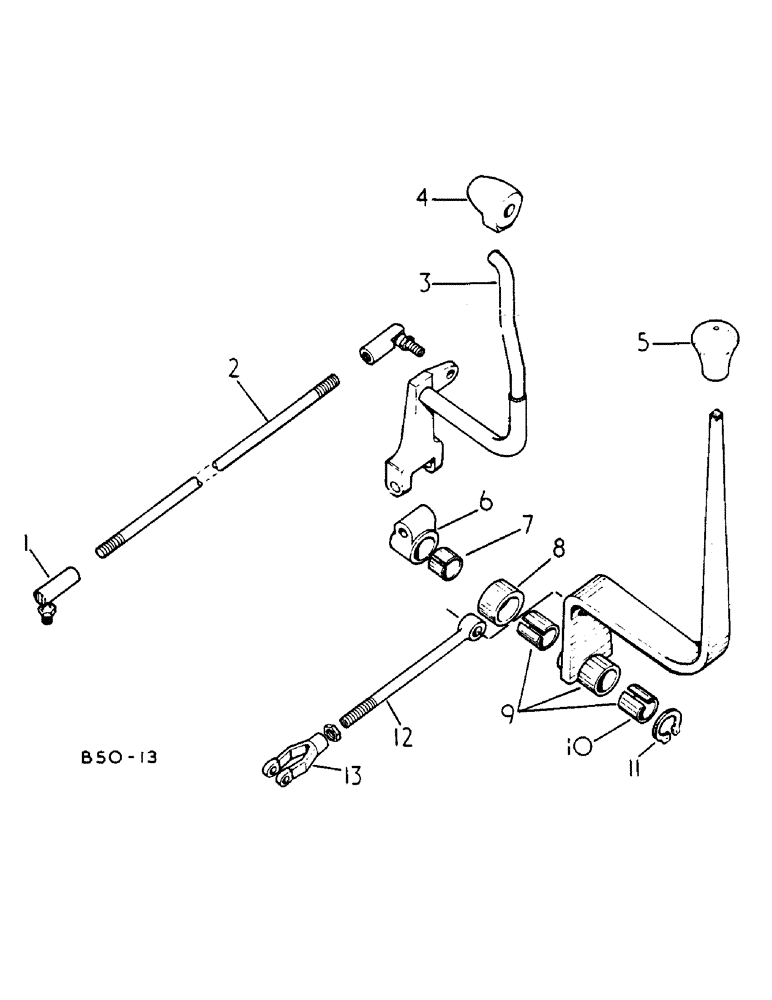

Запчасти Case IH 784 (07-074) - TRANSMISSION CONTROLS, FORWARD AND REVERSE, 784 (04) - Drive Train

1

D149295

BALL JOINT,3/8"

3/8-24

2шт.

1

442708

BALL JOINT

3/8-24

2шт.

1

158397H

JOINT, 3/8-24, OPTIONAL, UPTO 4504

2шт.

103026

NUT,3/8"-24, G5

2шт.

1

3123927R1

JOINT

3/8 UNF BALL

1шт.

1

3123928R1

JOINT

3/8 UNF BALL L.H. THREAD, 4505 UP

1шт.

3048059R91

LOCK NUT

3/8 UNF NYLON INSERT

2шт.

2

528122R1

ROD

SPEED SHIFT LEVER, UPTO 4504, ORDER ROD 3123926R1, JOINT 3123927R1, 3123928R1 AND NUT 3048059R91

1шт.

2

3123926R1

ROD

SPEED SHIFT LEVER, 4504 UP

1шт.

3

530532R2

LEVER ASSY.

SPEED SHIFT

1шт.

4

379022R2

KNOB

SPEED SHIFT LEVER

1шт.

5

3121549R1

KNOB

KNOB, LEVER

1шт.

6

530932R1

HUB ASSY.

TRANSMISSION SHIFT LEVER

1шт.

615192R1

WASHER

29/32 X 1-1/4 X .0299

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

7

539245R1

BUSHING

1шт.

8

534260R1

SPACER

RANGE SHIFT LEVER

1шт.

9

3121445R1

LEVER ASSY.

RANGE SHIFT

1шт.

539245R1

BUSHING

2шт.

10

539245R1

BUSHING

1шт.

11

454331R1

SNAP RING,#87, Ext

Shift lever

1шт.

12

528139R1

ROD ASSY.

RANGE SHIFT

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

3/8 X 1-11/32 ROD END

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

103373R1

PIN, 3/32 X 3/4 COTTER

1шт.

13

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8 X 2-1/2 ROD END

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

3/8 X 1/11/32 ROD END

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

533593R1

PRODUCT GRAPHIC

TRANS CONTROL, NOT ILLUSTRATED

1шт.
