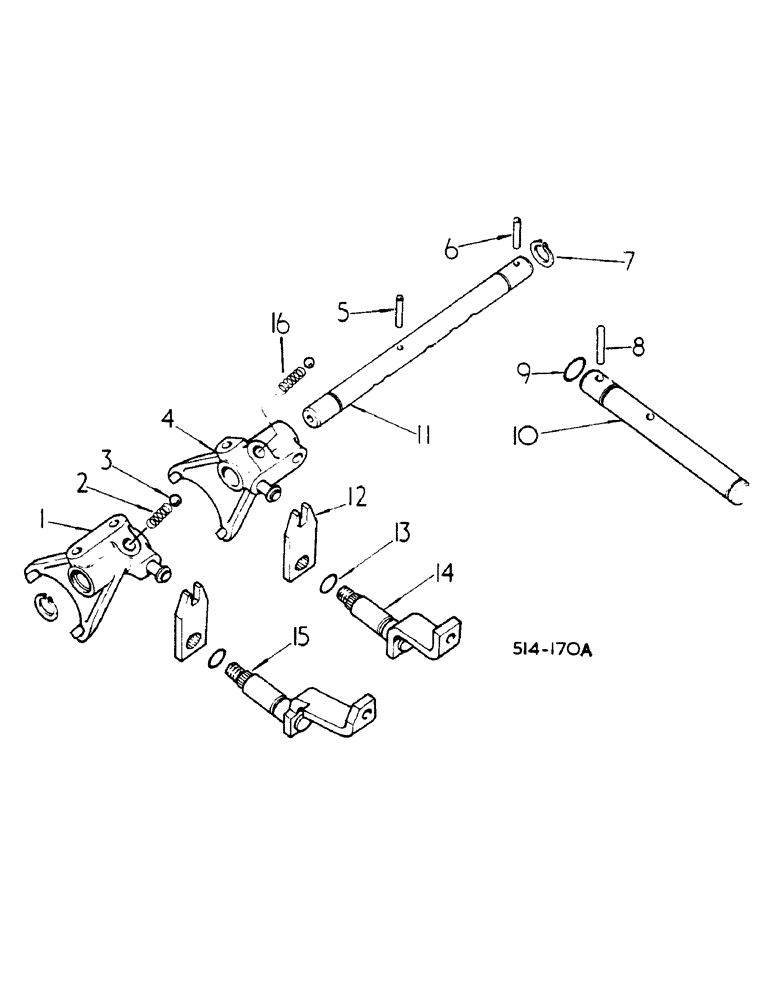

Запчасти Case IH 784 (07-070) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION, 784 (04) - Drive Train

1

538911R4

FORK

FRONT, SYNCHROMESH DRIVE TRACTORS

1шт.

2

103062C1

SPRING

POPPET BALL

1шт.

3

17013R1

BALL,13/32" Dia

2шт.

3

16013R1

BALL

13/32 CR STL, OPTIONAL

1шт.

4

538912R4

FORK

REAR, SYNCHROMESH DRIVE TRACTORS

1шт.

4

538913R4

FORK

REAR, FORWARD AND REVERSE

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail

3шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 X 7/8 X 3/32

1шт.

10

402152R1

SHAFT

RANGE TRANS SHIFT LEVER IDLER, SYNCHROMESH DRIVE TRACTORS

1шт.

10

527853R1

SHAFT

FORWARD AND REVERSE

1шт.

11

537473R1

RAIL ASSY.

RANGE SHIFT FORK, SYNCHROMESH DRIVE TRACTORS

1шт.

11

402150R1

RAIL

RANGE SHIFT FORK, FORWARD AND REVERSE

1шт.

12

405169R2

ARM

RANGE SHIFT INNER

2шт.

19605R1

LOCK NUT,1/2"-13, GB

1/2-13 NYLON INSERT

2шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

2шт.

14

405167R2

ARM

ASSY, RANGE SHIFT OUTER REAR

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060

2шт.

15

405164R2

ARM

ASSY, RANGE SHIFT OUTER FRONT, SYNCHROMESH DRIVE TRACTORS

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060

2шт.

16

534053R1

SPRING

POPPET BALL

1шт.
