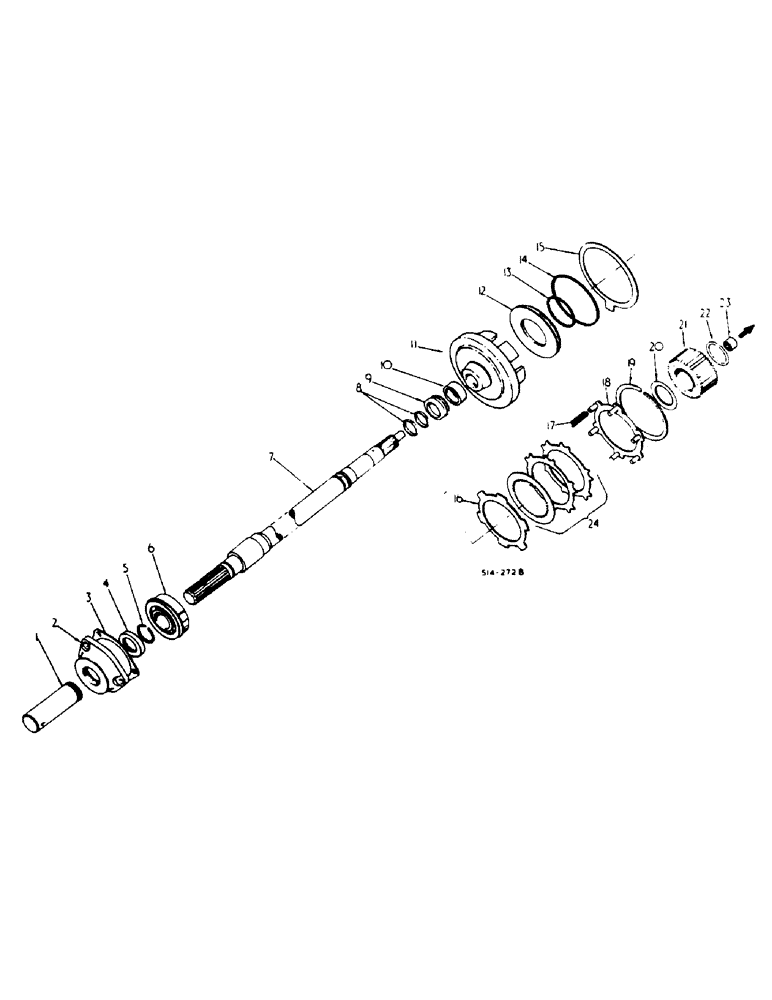

Запчасти Case IH 784 (07-044) - INDEPENDENT POWER TAKE-OFF, SINGLE, LOWER OUTPUT SHAFT (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
406808R1
TUBE
ASSY, IPTO SHAFT PROTECTION
1шт.
2
401725R4
FLANGE, IPTO SHAFT BRG
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3шт.
3
399843R2
GASKET
SHAFT BRG RETAINER
1шт.
4
385766R91
OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk
SHAFT
1шт.
5
607186R1
SNAP RING,#156, Ext
Brg
1шт.
6
ST236
BEARING, BALL,40mm ID x 90mm OD x 23mm W
SHAFT
1шт.
6
171082R91
BALL BEARING,40 mm ID x 90 mm OD x 23 mm
SHAFT
1шт.
6
533615R91
BALL BEARING
SHAFT
1шт.
6
538962R91
BALL BEARING
SHAFT, OPTIONAL
1шт.
7
66458C1
SHAFT ASSY.
COMPRESSOR DRIVE
1шт.
8
166972R1
RING
SHAFT SEALING
2шт.
9
401705R2
BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L
LOWER SHAFT
1шт.
10
565232R91
BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W
1004 RPM SHAFT
1шт.
11
66068C1
GEAR
CLUTCH CUP, 44T, W/SIDE DRIVE P.T.O.
1шт.
11
3125149R1
CUP
CLUTCH, W/O SIDE DRIVE P.T.O.
1шт.
617938R1
PIN,5/16" x 1 3/8", Coiled
1шт.
12
401722R1
PISTON
CLUTCH
1шт.
13
401723R1
O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk
PISTON SEAL, INNER
1шт.
14
401724R1
SEAL,0.551" ID x 0.07" Width
PISTON SEAL, OUTER
1шт.
15
401490R1
RING
IPTO BRAKE
1шт.
16
66185C1
CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk
PISTON RETURN
1шт.
17
66182C1
SPRING
PISTON RETURN
6шт.
18
66186C92
PLATE ASSY.
CLUTCH BACKING
1шт.
20020R1
DOWEL,5/16" x 1"
5/16 X 1 DOWEL
6шт.
19
401720R1
CIRCLIP
BACKING PLATE
1шт.
20
401713R1
THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk
1шт.
21
66183C2
HUB ASSY.,45T
CLUTCH
1шт.
22
401756R1
SNAP RING,#206, 1.936", Ext
1шт.
23
533325R91
BEARING, NEEDLE
IPTO DRIVEN SHAFT
1шт.
23
538467R91
BEARING, NEEDLE
IPTO DRIVEN SHAFT, OPTIONAL
1шт.
24
66193C91
PACKAGE
IPTO CLUTCH PLATE, SERVICE, CONSISTS OF
1шт.
DISC
5шт.
PLATE
8шт.
431723R1
O-RING
1шт.
401724R1
SEAL,0.551" ID x 0.07" Width
1шт.
66182C1-
SPRING
6шт.
1093322R1
PRODUCT GRAPHIC
SPARE PART IPTO SPEED, NOT ILLUSTRATED
1шт.
Выбрано товаров: 38
