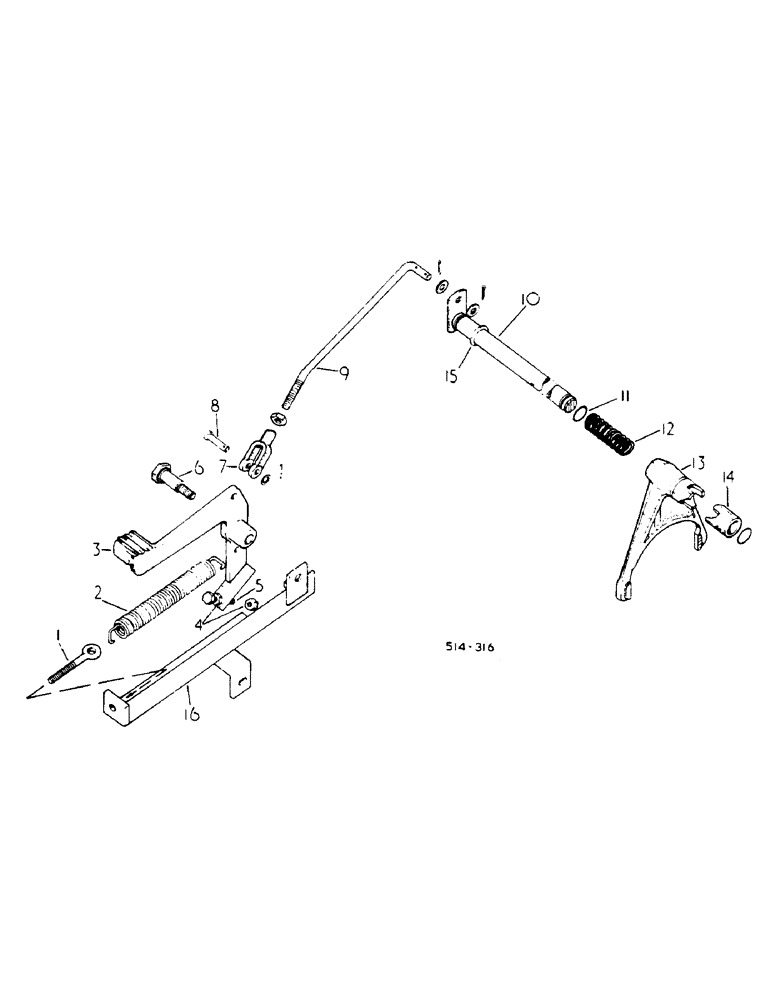

Запчасти Case IH 784 (07-034) - DIFFERENTIAL LOCK, MACHINES FITTED W/CAB (04) - Drive Train

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT, EYE PEDAL RETURN SPRING

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

3121849R1

SPRING

DIFF LOCK PEDAL RETURN

1шт.

3

3116181R3

PEDAL

DIFF LOCK

1шт.

3

3121568R1

PEDAL

DIFF LOCK, STANDARD MACHINES

1шт.

4

109084

NUT,1/4"-20, G5

4-Wheel Drive

1шт.

5

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4WD

1шт.

6

3116897R1

BOLT,Lock, 9/16" - 12 x 2.38"

DIFF LOCK PEDAL PIVOT, 4-WHEEL DRIVE

1шт.

7

753984R1

CLEVIS,3/8" - 16

ROD END, 4-WHEEL DRIVE

1шт.

8

NLS

NO LONGER SERVICED

3/8 X 1-1/16 CLEVIS, 4-WHEEL DRIVE

1шт.

103373

COTTER PIN,3/32" x 3/4"

4-Wheel Drive

1шт.

Q1597

WASHER

13/32 X 3/4 1/16, 4-WHEEL DRIVE

1шт.

9

3116187R91

ROD

CPTE, DIFF LOCK PEDAL, 4-WHEEL DRIVE

1шт.

103384

COTTER PIN,1/8" x 3/4"

4-wheel drive

2шт.

Q1597

WASHER

13/32 X 3/4 X 1/16, 4-WHEEL DRIVE

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

4WD

1шт.

10

527871R1

SHAFT ASSY.

DIFF. LOCK, 4-WHEEL DRIVE

1шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32, 4-WHEEL DRIVE

2шт.

12

527878R1

SPRING

DIFF LOCK FORK ACTUATING, 4-WHEEL DRIVE

1шт.

13

527874R3

FORK

ASSY, DIFF LOCK SHAFT, 4-WHEEL DRIVE

1шт.

14

527877R1

CAM

DIFF LOCK SHAFT, 4-WHEEL DRIVE

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

4-wheel drive

1шт.

15

551658R1

WASHER

25/32 X 1-1/4 X 22, 4-WHEEL DRIVE

1шт.

15

Q3501

WASHER

25/32 X 1-1/4 X 16, AS REQUIRED

1шт.

16

3116182R1

SUPPORT ASSY.

DIFF LOCK PEDAL, AS REQUIRED

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

As Required

1шт.

495-11053

WASHER,1/2", SAE

.531 X 1.062 X .074, AS REQUIRED

1шт.

103323

LOCK WASHER,1/2"

Standard machines

1шт.

16

3121572R1

SUPPORT ASSY.

DIFF LOCK PEDAL, 4-WHEEL DRIVE

1шт.
