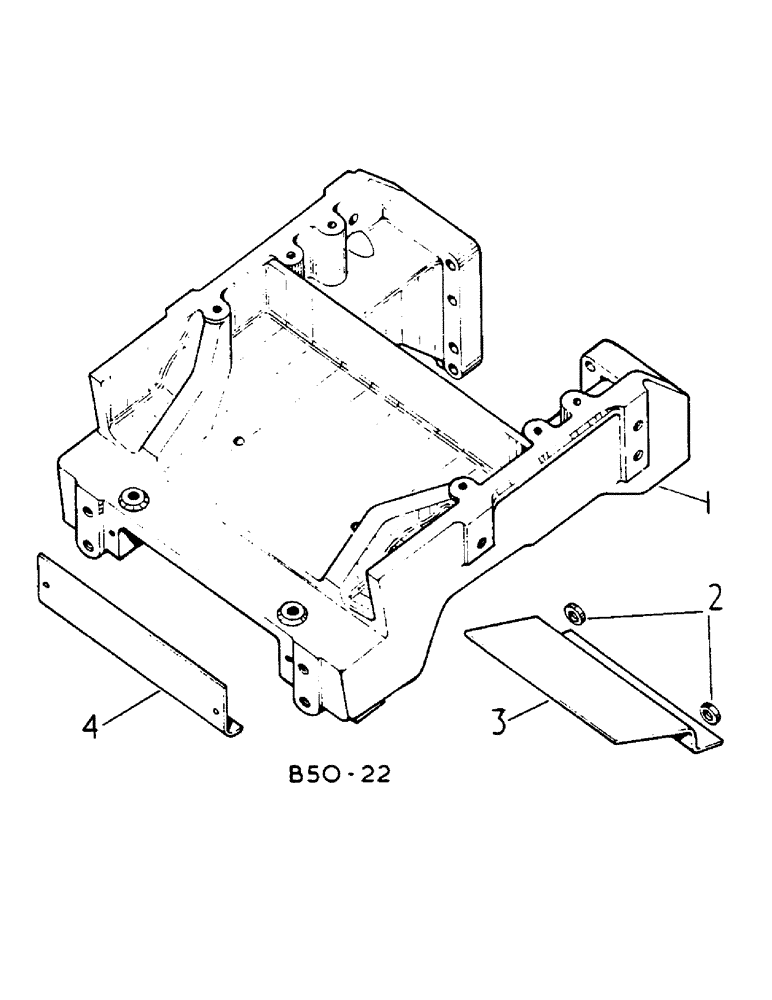

Запчасти Case IH 784 (14-009) - FRONT BOLSTER Suspension

1

3121167R1

NO LONGER SERVICED

BOLSTER, FRONT, STANDARD MACHINES

1шт.

1

3121169R1

BOLSTER, FRONT, 4-WHEEL DRIVE

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 X 2-1/2 HEX HD CAP

6шт.

24970R1

BOLT

5/8-11 x 2-1/2 Twelve pt flange, Optional

6шт.

2

534813R1

SPACER

BOLSTER AIR BAFFLE

1шт.

3

534812R1

BAFFLE

BOLSTER

1шт.

3

1500014C1

BAFFLE

BOLSTER, 4-WHEEL DRIVE Z F AXLE

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 HEX HD CAP, Course Threads

2шт.

369936R1

WASHER

BOLSTER AIR BAFFLE

2шт.

4

3121168R2

COVER

BOLSTER FRONT

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16-18 X 1/2 SLTD PAN HD

2шт.

80681

LOCK WASHER,5/16"

2шт.
