Запчасти Case IH 784 (14-002) - ADJUSTABLE FRONT AXLE, STRAIGHT, HIGH SPINDLE, LOW SPINDLE, 52 IN TO 77 IN TREAD Suspension

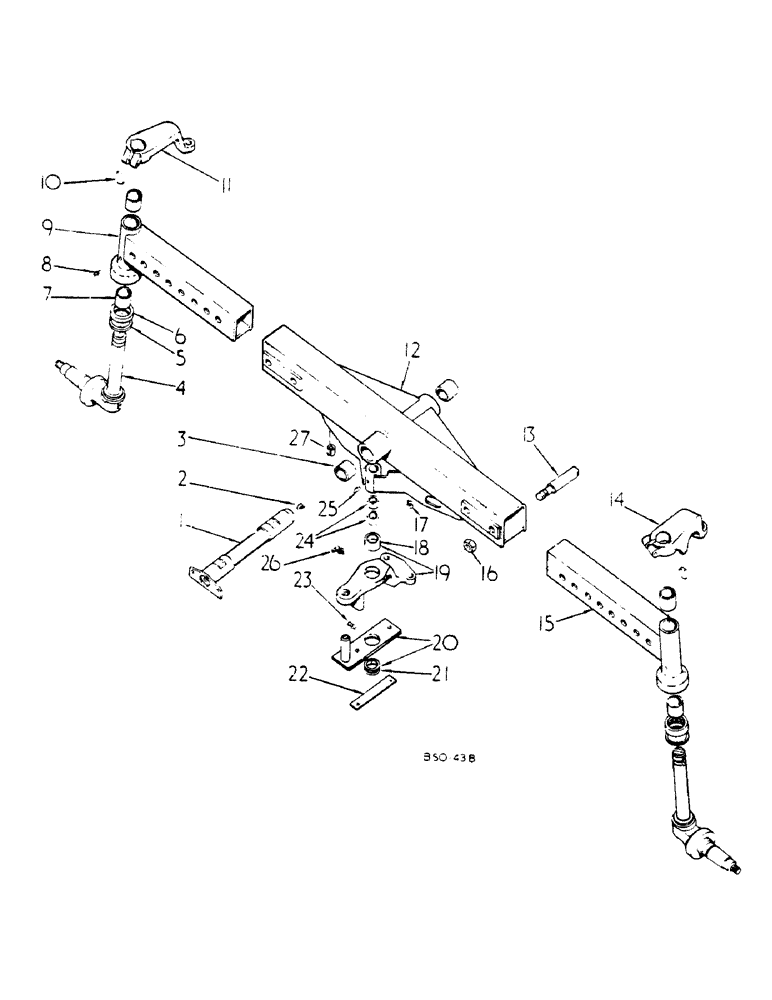

Схема запчастей Case IH 784 - (14-002) - ADJUSTABLE FRONT AXLE, STRAIGHT, HIGH SPINDLE, LOW SPINDLE, 52 IN TO 77 IN TREAD Suspension
4
16
20
25
14
27
5
1
11
18
22
9
7
10
24
26
13
15
6
23
21
8
2
3
19
12
17

Артикул

Название

Примечание

Количество

1

3121254R1

SHAFT ASSY.

FRONT AXLE PIVOT

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

2

273352

SCREW

LUBRICATOR FITTING, 1/8-27 PTF 90 DEG ANGLE LUB

1шт.

3

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

PIVOT

2шт.

4

3121261R91

KNUCKLE,RH

ASSY. STEERING, HIGH SPINDLE

2шт.

4

3121270R91

KNUCKLE

ASSY. STEERING, LOW SPINDLE

2шт.

5

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

6

405831R91

BEARING

STEERING KNUCKLE THRUST

2шт.

6

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

STEERING KNUCKLE THRUST

2шт.

6

369131R91

THRUST BEARING

STEERING KNUCKLE THRUST, OPTIONAL

2шт.

7

376099R1

BUSHING

4шт.

8

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

High spindle

2шт.

8

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 DRIVE TYPE 45 DEG ANGLE LUB, LOW SPINDLE

2шт.

9

3121257R91

EXTENSION ASSY.

FRONT AXLE R.H., HIGH SPINDLE

1шт.

9

3121268R91

EXTENSION ASSY.

FRONT AXLE R.H., LOW SPINDLE

1шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

3121264R1

ARM

STEERING KNUCKLE R.H.

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2-13 X 3-1/2 HEX HD PHC TYPE 8

1шт.

25526R1

NUT,1/2"-13, G8

1/2-13 HEX PHC TYPE 8

1шт.

12

3121242R92

CENTER AXLE

ASSY, FRONT CENTRE SECTION, ON ORDER FOR R91 ORDER 3121242 R92 W/ CLEVIS 3125306R1, PIN 3125305R1 AND BUSHING 3125304R1

1шт.

13

3121252R1

BOLT,3/4" - 16 x 1 27/32"

AXLE EXTENSION SHOULDER

4шт.

14

3121263R1

ARM

STEERING KNUCKLE L.H.

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2-13 X 3-1/2 HEX HD PHC TYPE 8

1шт.

25526R1

NUT,1/2"-13, G8

1/2-13 HEX PHC TYPE 8

1шт.

15

3121256R91

EXTENSION ASSY.

FRONT AXLE L.H., HIGH SPINDLE

1шт.

15

3121267R91

EXTENSION ASSY.

FRONT AXLE R.H., LOW SPINDLE

1шт.

16

3121253R1

SPECIAL NUT

FRONT AXLE

4шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 DRIVE TYPE STR LUB, BRG TUBE AND PIVOT SPACER

1шт.

18

379748R1

BUSHING

PS CENTRE ARM

1шт.

19

67499C91

ARM ASSY.

PS CENTRE C/W BUSHING

1шт.

20

405580R11

BAR ASSY.

PS CYLINDER C/W BUSHING

1шт.

21

379748R1

BUSHING

1шт.

22

67976C1

PLATE, LOCKING

STRIP, STEERING CENTRE ARM BOLT LOCK

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

23

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

2шт.

24

405574R1

BUSHING

CYLINDER MOUNTING BRACKET

2шт.

25

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 DRIVE TYPE STR LUB

1шт.

26

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

27

3125304R1

BUSHING

SPRING STEEL

1шт.

Выбрано товаров: 40
