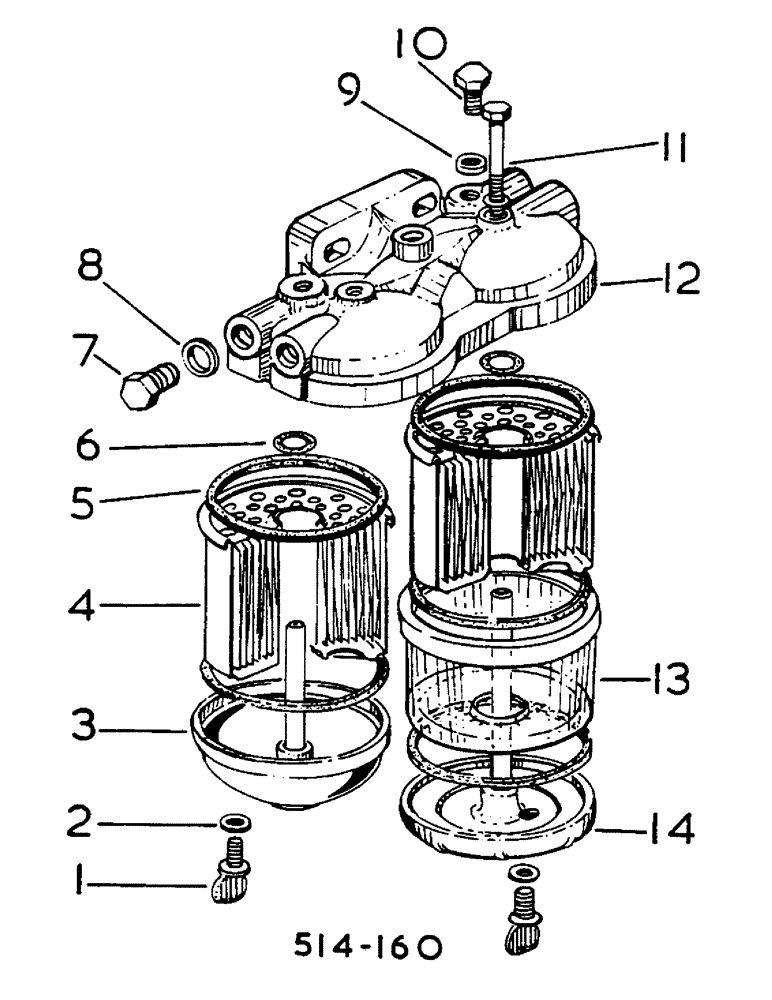

Запчасти Case IH 784 (12-082) - TWIN FUEL FILTER, C.A.V. 246/120521 239/66762 Power

3138816R93

FILTER ASSY

TWIN FUEL, C.A.V.

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

1

3072558R1

PLUG

DRAIN

2шт.

2

3072559R1

WASHER

SEAL DRAIN PLUG

2шт.

3

3078691R91

COVER

BASE, W/STUD ASSY

1шт.

4

3044506R93

FILTER, FUEL

ELEMENT, PACKAGE

2шт.

5

3105001R1

SEAL

COVER AND BASE

5шт.

6

3044505R1

SEAL

ELEMENT

2шт.

7

3078689R1

PLUG

CLOSING

1шт.

8

3078690R1

SEALING WASHER

SEAL CLOSING PLUG

1шт.

9

3049111R1

SEALING WASHER

SEAL VENT PLUG

1шт.

10

3070770R1

PLUG

VENT

1шт.

11

3070771R2

BOLT

CENTRE

2шт.

3144668R1

SEALING WASHER

2шт.

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

12

3078687R3

COVER ASSY

HEAD, FILTER

2шт.

13

3069610R1

BOWL

TRANSPARENT

1шт.

14

3078688R91

COVER

BASE, W/STUD ASSY

1шт.
