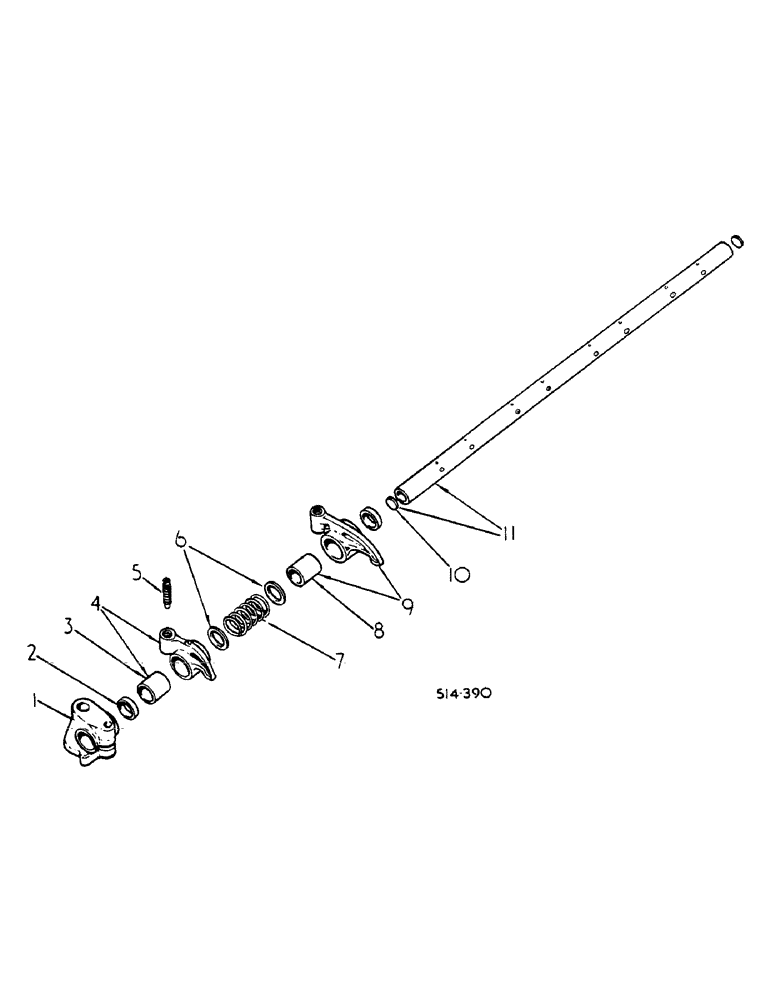

Запчасти Case IH 784 (12-076) - VALVE MECHANISM Power

1

3055077R6

SUPPORT

BRACKET, ROCKER ARM SHAFT

5шт.

25-118

NUT,1/2"-20, G5

1/2-20 HEX

5шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5шт.

3050129R1

LOCK WASHER

WASHER, LOCK

5шт.

2

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

DISTANCE

7шт.

3

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

4шт.

4

3132293R91

ARM ASSY.

W/BUSHING -EXHAUST ROCKER

4шт.

3132138R1

NUT

ROCKER ARM SHAFT

4шт.

5

3132137R1

ADJUSTMENT SCREW

Rocker arm

8шт.

6

3055669R1

THRUST WASHER

THRUST ROCKER ARM

8шт.

7

3055075R2

SPRING

ROCKER ARM

4шт.

8

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

4шт.

9

3132292R91

ROCKER

ARM ASSY, W/BUSHING, INTAKE

4шт.

3132138R1

NUT

ROCKER ARM SHAFT

4шт.

10

933565R1

PLUG,M14, Conical

EXPANSION 14 MM

2шт.

11

3055070R21

SHAFT HOUSING

ASSY, ROCKER ARM, W/PLUGS

1шт.
