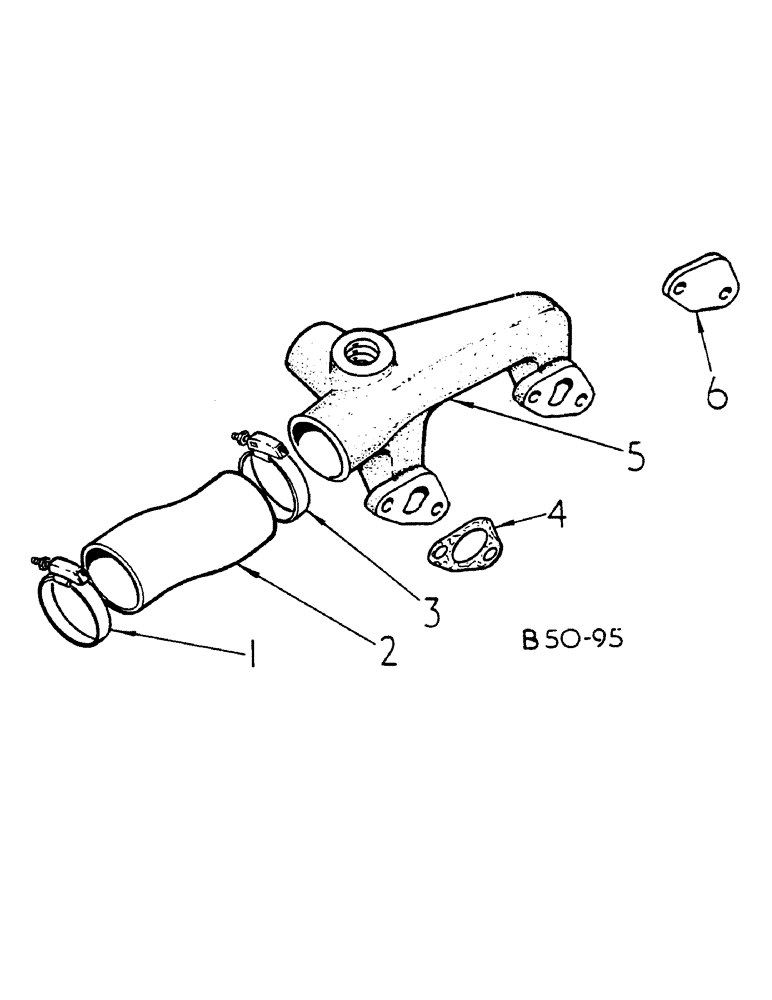

Запчасти Case IH 784 (12-054) - WATER MANIFOLD Power

1

3144921R1

CLAMP,M50-70, Worm

HOSE

1шт.

1

755023R91

STRAP

CLAMP, HOSE, OPTIONAL

1шт.

2

3144028R2

HOSE

Connecting

1шт.

3

3144921R1

CLAMP,M50-70, Worm

HOSE

1шт.

3

755023R91

STRAP

CLAMP, HOSE, OPTIONAL

1шт.

4

3055306R1

GASKET

MANIFOLD

3шт.

5

3218034R1

MANIFOLD

WATER COLLECTING

1шт.

425-115

NUT,5/16"-24, G5

8шт.

103320

LOCK WASHER,5/16"

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

3шт.

3136506R1

RING

PACKING 8 X 14 X 1.5 MM

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

FLAT ROUND

1шт.

444667

PLUG

PIPE 1/2-14 SQ HD

2шт.

6

3132721R1

COVER

CLOSING

1шт.
