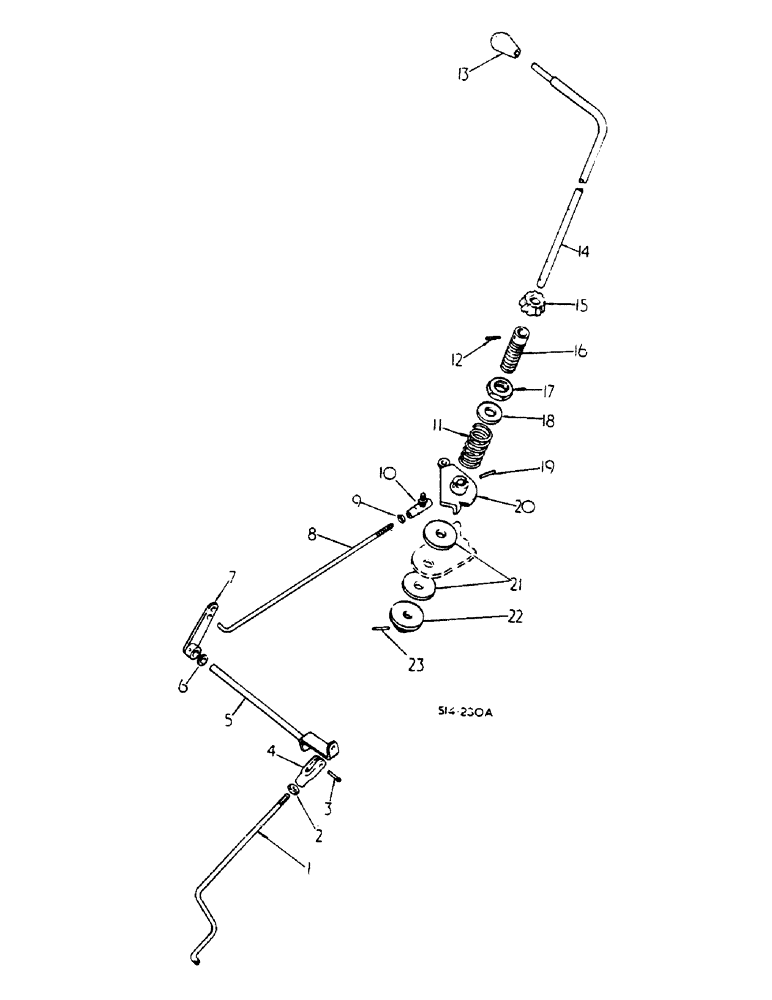

Запчасти Case IH 784 (12-032) - GOVERNOR CONTROLS, BOSCH Power

1

528334R3

ROD

FRONT GOVERNOR CONTROLS

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

3

114783

PIN

1/4 X .766 ROD END

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

Short adj rod end

1шт.

5

528325R2

ARM

ASSY, GOVERNOR CONTROL IDLER

1шт.

6

Q1597

WASHER

13/32 X 3/4 X 16 GA PLAIN

1шт.

6

20285H

WASHER

13/32 X 3/4 X 11 GA PLAIN, OPTIONAL

1шт.

7

539572R2

LEVER

ASSY, IDLER ARM

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

21309R2

WASHER, 13/32 X 7/8 X 7 GA

1шт.

8

528336R2

ROD

REAR, GOVERNOR CONTROL

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 5/32 X 7/8 HV COILED SPRING

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

191474

BALL JOINT

1/4-28 BALL

1шт.

10

192271

1/4-28 BALL

1шт.

10

27258R1

BALL JOINT

1/4-28 BALL, OPTIONAL

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

103319

LOCK WASHER,1/4"

1шт.

11

65344C1

SPRING

GOVERNOR FRICTION CONTROL

1шт.

12

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

13

402584R1

BUTTON

KNOB, GOVERNOR CONTROL HANDLE

1шт.

14

3121391R1

ROD

GOVERNOR CONTROL HANDLE

1шт.

15

528290R1

GUIDE RING

COLLAR, GOVERNOR CONTROL HANDLE

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX SOC HD F PT

1шт.

16

65345C1

SPACER

ADJUSTABLE

1шт.

17

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 ZND HEX JAM

1шт.

18

467750R1

WASHER

25/32 X 1-1/2 X .120 ZND

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

528291R3

ARM ASSY.

GOVERNOR CONTROL ROD

1шт.

21

3123275R1

FRICTION WASHER

DISC, GOVERNOR CONTROL

2шт.

22

528294R1

PLATE ASSY.

GOVERNOR CONTROL FRICTION

1шт.

23

19313R1

PIN,5/32" x 7/8", Coiled

1шт.
