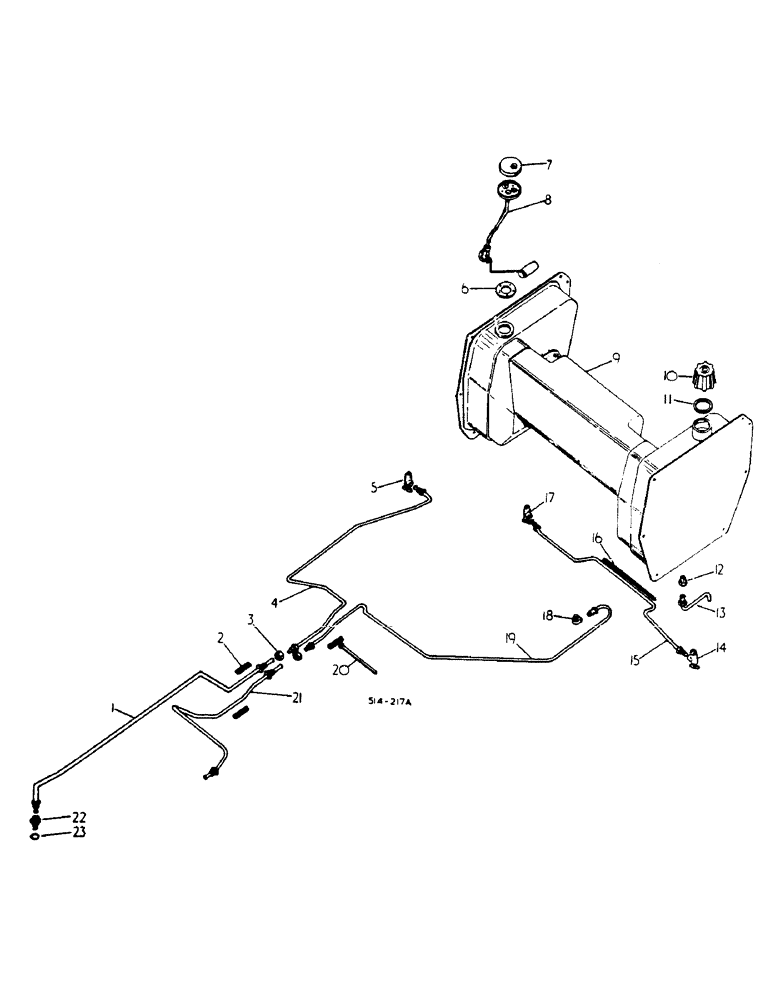

Запчасти Case IH 784 (12-014) - FUEL TANK SUPPORTS AND PIPING Power

1

3125866R1

PIPE ASSY.,7.92 mm OD, 1020, 119 mm Length

UNION TO FILTER, ENGINE SER NO. 120521 UP

1шт.

1

PIPE ASSY, UNION TO FILTER, UP TO ENGINE SER NO. 120520, BOSCH INJECTION CR PUMP

1шт.

2

536009R1

FUEL HOSE,0.31" ID x 2.50"

Fuel Line

3шт.

3

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

5/16 INVERTED FLARED TUBE

2шт.

3

189951

NUT

UNION, 5/16 INVERTED FLARED TUBE, OPTIONAL

2шт.

4

3121561R1

TUBE ASSY.

UNION TO SHUTOFF VALVE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE, OPTIONAL

2шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSY, SHUTOFF

1шт.

6

528359R1

GASKET

SENDING UNIT

1шт.

7

528360R1

CAP

COVER, SENDING UNIT

1шт.

8

529790R1

SENDER UNIT

FUEL GAUGE, A C DELCO

1шт.

8

3129841R91

FUEL GAUGE

TRANSMITTER, ICKNIELD, OPTIONAL

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

10-24 X 1/2 HEX HD CAP

4шт.

451625

SCREW

10-12 X 5/8 CZ HEX HD TAPPING

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

10-24 X 3/8 CR REC PAN

1шт.

533199R1

SEALING WASHER

SENDING UNIT COVER SEALING

4шт.

796002R1

COPPER WASHER

SENDING UNIT COVER SEALING

1шт.

10

536035R93

FUEL TANK

ASSY, W/FILLER CAP

1шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

102635

NUT,3/8"-16, G5

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

10шт.

103321

LOCK WASHER,3/8"

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

536845R1

PLUG

CAP ASSY, FUEL TANK FILLER

1шт.

12

23977DB

GASKET

FUEL TANK FILLER CAP

1шт.

13

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

CONNECTOR, USED W/UNDERSLUNG EXHAUST

1шт.

14

539938R1

VENTILATION PIPE

TANK BREATHER, USED W/UNDERSLUNG EXHAUST ATT

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE, OPTIONAL

1шт.

15

536002R1

VALVE

ASSY, SHUTOFF

1шт.

16

3121190R1

TUBE

ASSY, CROSSOVER

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE, OPTIONAL

2шт.

17

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer

1шт.

18

536002R1

VALVE

ASSY, SHUTOFF

1шт.

19

137422

ELBOW

INVERTED FLARE 90 DEG

1шт.

20

3129262R1

PIPE

TUBE ASSY, FUEL RETURN REAR, 785

1шт.

20

537538R1

TUBE ASSY.

FUEL RETURN REAR, 784

1шт.

20

3125099R1

PIPE ASSY.

SPARE PART OVERFLOW RETURN REAR, 784, TRACTORS W/HAND-OPERATED DRUM BRAKES

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE, OPTIONAL

1шт.

21

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

3шт.

22

3112790R1

PIPE

ASSY, FUEL RETURN FRONT

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE, OPTIONAL

2шт.

23

3056600R1

ADAPTER

ADAPTER

1шт.

24

936610R1

SPARE PART PACKING

1шт.

538393R1

FILLER CAP

PLUG, FUEL TANK VENT PIPE FLANGE, USED W/VERTICAL EXHAUST, NOT ILLUSTRATED

1шт.

366460R1

CABLE CLIP

FUEL SENDER, NOT ILLUSTRATED

2шт.

3116908R1

CLIP,ELECTRICAL

FUEL TANK, NOT ILLUSTRATED

2шт.
