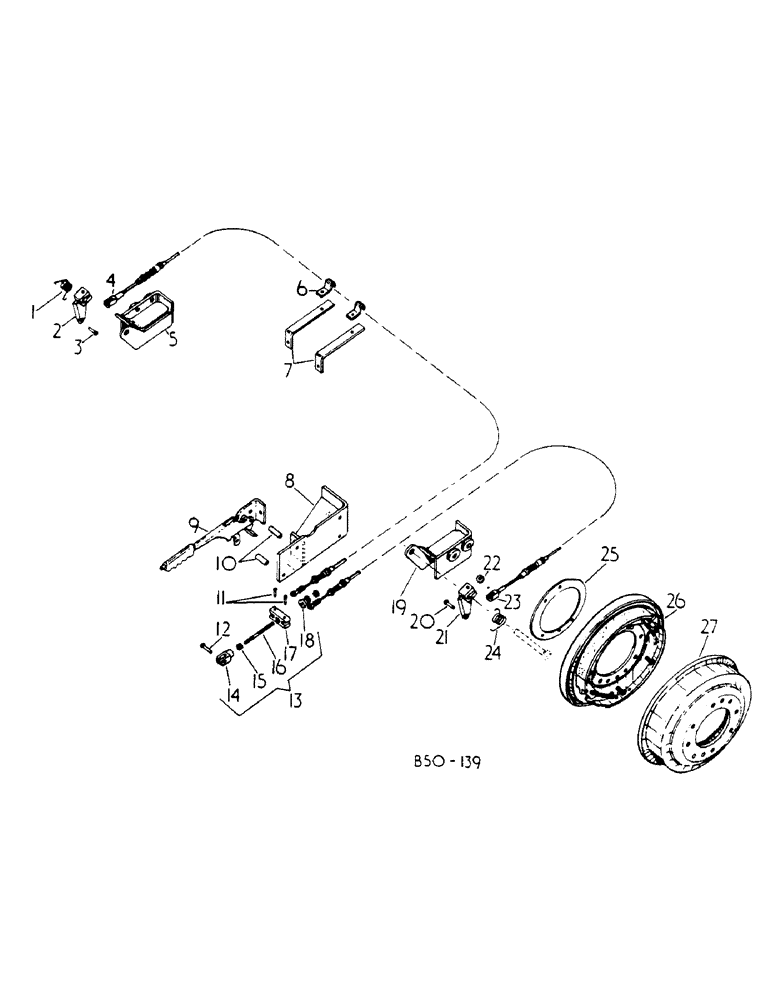

Запчасти Case IH 784 (04-008) - DRUM BRAKE ATTACHMENTS, HAND-OPERATED (5.1) - BRAKES

1

3123952R1

SPRING

ACTUATING CABLE RETURN RH

1шт.

2

3123957R1

LEVER

ASSY, CAMSHAFT

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

3

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16 X 15/16 CLEVIS

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 16 GA

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

4

3123950R1

CABLE

ASSY, BRAKE ACTUATING, RH

1шт.

5

3123938R1

BRACKET

ASSY CAM AND CABLE ANCHOR, RH

1шт.

6

528477R1

CLAMP

BRAKE CABLE

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8-16 X 3/4 HEX HD ZINC

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

3123953R1

SUPPORT

BRAKE CABLE

2шт.

8

3123945R3

X

BRACKET ASSY, CABLE REACTION

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

3123958R1

HANDLE AND RATCHET ASSY, DRUM BRAKE

1шт.

10

11531N

SPACER,3/8" Pipe x 2"

.675 X .493 X 2.0 LONG

2шт.

11

26493R1

CLEVIS PIN,5/16" x 1 1/4"

5/16 X 1-1/4 CLEVIS

2шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 16 GA

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

12

138084

SPLIT PIN/SAFETY PIN

CLEVIS

1шт.

120394

WASHER,3/8", SAE

3/8 X .688 X .051

1шт.

107702

STRIP

3/32 X 5/8 COTTER

1шт.

13

3123954R91

ROD ASSY.

SPARE PART HAND LEVER TO LINKAGE CONN, CONSISTS OF ITEMS 14 - 18 INCLUSIVE

1шт.

14

3068529R1

CLEVIS

SPARE PART END, PULL ROD FORK

1шт.

15

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

16

NSS

NOT SOLD SEPARAT

ROD, HANDLEVER TO LINKAGE CONNECTION

1шт.

17

3123956R1

YOKE

SPARE PART COMPENSATOR

1шт.

18

402913R1

SPARE PART NUT, ADJUSTING PIVOT

1шт.

19

3123938R1

BRACKET

ASSY, CAM AND CABLE ANCHOR LH

1шт.

20

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16 X 15/16 CLEVIS

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 16 GA

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

21

3123957R1

LEVER

ASSY CAMSHAFT

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

22

3068530R1

KEY

BRAKE LEVER

2шт.

23

3123949R1

CABLE ASSY.

BRAKE ACTUATING LH

1шт.

3069964R1

RING, SNAP

RING SNAP 19 MM EXTERNAL

1шт.

3069977R1

SNAP RING

19 MM EXTERNAL SNAP, 3 OR AS REQUIRED, OPTIONAL

1шт.

24

3123951R1

SPRING

ACTUATING CABLE RETURN, LH

1шт.

25

3069199R1

SHIM

SPARE PART DRUM BRAKE PLATE

2шт.

26

3069536R1

BRAKE ASSY, DRUM, FOR DETAILS SEE ITEMS LISTED UNDER DETAIL DRUM BRAKE

2шт.

180148

SCREW,Hex, 7/16" - 14 x 1 3/8"

7/16-14 X 1-3/8 ZND HEX HD

6шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16-14 X 2 ZNP HEX HD CAP

4шт.

126383

7/16 C-Z MED LOCK

10шт.

NLS

NO LONGER SERVICED

7/16-14 C-Z HEX

10шт.

27

528487R1

DRUM

BRAKE

2шт.
