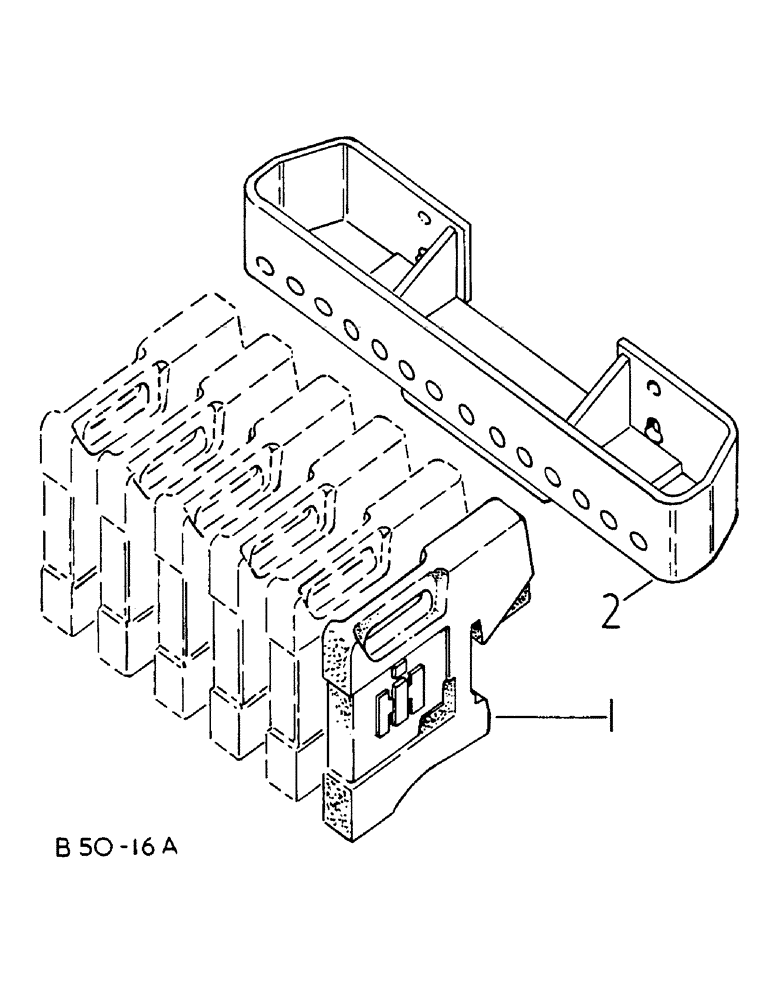

Запчасти Case IH 784 (09-022) - FRONT END WEIGHTS (12) - FRAME

1

383392R2

WEIGHT

FRONT END

10шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 ZND HEX HD CAP

10шт.

125536

SQUARE NUT

1/2-13 C-Z SQUARE

10шт.

2

3121273R1

BRACKET

ASSY, FRONT END WEUGHT

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

Machine application consists of 6 or 14 weights

4шт.

2

3123572R1

BRACKET

ASSY, FRONT END WEIGHT

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

4WD, Machine application consists of max 10 weights

4шт.
