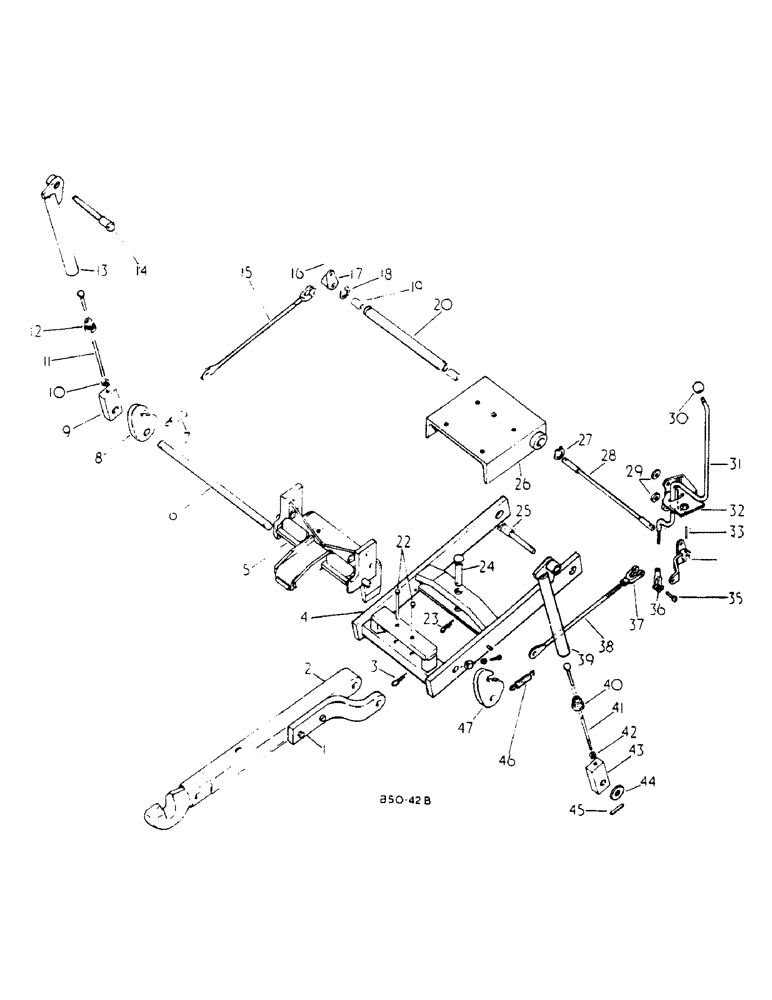

Запчасти Case IH 784 (09-013) - AUTOMATIC HITCH (12) - FRAME

ATTACHMENT, AUTOMATIC HITCH, FOR TRACTORS EQUIPPED WITH HYDRAULIC DRAFT CONTROL ATT AND AUTOMATIC HITCH W/SWINGING DRAWBAR

1шт.

1

3121823R1

DRAWBAR CLAMP

CLEVIS

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 UNC X 3-3/4 HEX HD, Course Threads

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

3121818R1

HITCH ASSY

DRAWBAR

1шт.

3

720631R1

LINCH PIN

CLIP, SPRING

2шт.

4

3121782R2

FRAME

CPTE, AUTOMATIC HITCH

1шт.

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

1/4-20 X 1-1/2 HEX HD CAP

2шт.

109084

NUT,1/4"-20, G5

2шт.

5

3125212R2

SUPPORT

CPTE, DRAWBAR

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 HEX HD CAP

6шт.

6

3121795R1

SHAFT HOUSING

LIFT ROD CROSS

1шт.

7

399743R1

SPRING

RETURN, 784, 785 UP TO 12557, 278 UP TO 800

1шт.

7

1500607C1

SPRING

RETURN, 78512558 UP, 268801 UP

1шт.

8

3121793R2

LATCH

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

784, 785 up to 12557, 278 up to 800

2шт.

8

1500606C1

LATCH

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

78512558 up, 278 801 up

2шт.

9

3118824R1

BAR

LIFT ROD

1шт.

10

102639

NUT,5/8"-11, G5

1шт.

11

3121794R1

ROD

LIFT

1шт.

12

3118821R1

END

LIFT ROD TUBE

1шт.

13

3121796R1

TUBE

ASSY, LIFT LH

1шт.

14

3118822R1

BOLT

LIFT ROD

1шт.

752904R1

NUT

5/8 UNC

1шт.

15

3121809R1

ROD ASSY.

LATCH LH

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

1шт.

103373

COTTER PIN,3/32" x 3/4"

784, 785 Up to 12557, 278 up to 800, order 1 Rod 3121811R1 and 1 Clevis 104038

1шт.

15

3121811R1

ROD

LATCH, 785 12558 UP, 278801 UP

1шт.

16

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

17

3121802R1

LEVER ASSY.

LATCH

1шт.

18

933082R1

SNAP RING,M32, Ext

Retaining

1шт.

19

3121792R1

BUSHING

2шт.

20

3121791R1

TUBE,15.8 mm ID, 31.8 mm OD, 336 mm Length

FRAME PIVOT

1шт.

21

NOT USED

1шт.

22

3121822R1

PIN

9/16 DIA X 4-7/8 STD HD

2шт.

23

700387R1

CLIP, SPRING

1шт.

24

3121821R1

PIVOT PIN

DRAWBAR

1шт.

25

3118822R1

BOLT

LIFT ROD

1шт.

752904R1

NUT

5/8 UNC

1шт.

26

3121768R1

SUPPORT

SPARE PART CPTE HITCH FRAME

1шт.

631558R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2-13 X 1-1/4 HEX HD CAP

4шт.

120384

WASHER,1/2"

784, 785 up to 12557, 278 up to 800

4шт.

3061325R1

WASHER

HARDENED, 78512558 UP, 278801 UP

4шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 X 1-1/4

1шт.

27

933082R1

SNAP RING,M32, Ext

Retaining

1шт.

28

3121801R1

ROD

LATCH RELEASE

1шт.

29

30186R1

WASHER,M16 x 34.5 x 5, HT

NO. 16

2шт.

30

3123663R1

BUTTON

KNOB

1шт.

31

1500767C1

LEVER

ASSY, HAND CONTROL

1шт.

32

1500765C1

BRACKET

ASSY, LATCH RELEASE

1шт.

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

2шт.

33

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

34

3121805R1

LEVER ASSY.

LATCH RELEASE

1шт.

35

103496

CLEVIS PIN,3/8" x 1.060"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

36

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

ADJUSTABLE

1шт.

37

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

ADJUSTABLE

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

2шт.

103373

COTTER PIN,3/32" x 3/4"

2шт.

38

3121811R1

ROD

LATCH

1шт.

39

3121797R1

TUBE

ASSY, LIFT R.H.

1шт.

40

3118821R1

END

LIFT ROD TUBE

1шт.

41

3121794R1

ROD

LIFT

1шт.

42

102639

NUT,5/8"-11, G5

1шт.

43

3118824R1

BAR

LIFT ROD

1шт.

44

103348

WASHER,1" x 2" x .134"

1.060 X 2.000 X .108, 784, 785 UP TO 12557, 278 UP TO 800

6шт.

44

577273R1

WASHER

FLAT, 78512558 UP, 278801 UP

6шт.

45

576482R1

LOCK PIN,5/16" x 2", Slotted

2шт.

46

399743R1

SPRING

LATCH RETURN, 784, 785 UP TO 12557, 278 UP TO 800

1шт.

46

1500607C1

SPRING

LATCH RETURN, 78512558 UP, 278801 UP

1шт.

47

3121793R2

LATCH

ORDER SERVICE PACKAGE 1500620C91 OR 1500621C91

1шт.

19382R1

PIN, 3/8 X 3/4 SLTD SPRING

1шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

784, 785 up to 12557, 278 up to 800

1шт.

47

1500606C1

LATCH

1шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

1шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

78512558 up, 278801 up

1шт.

48

1500608C1

SHOCK ABSORBER

STOP, RUBBER

1шт.

933965R1

LOCK WASHER,M10

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

M10 SELF

1шт.

1093148R1

DECAL

HOOK, 784, 785 UP TO 12557, 278 UP TO 800, NOT ILLUSTRATED

1шт.

1135303C1

DECAL

HOOK, 78512558 UP, 278 801 UP, NOT ILLUSTRATED

1шт.

1500620C91

PACKAGE, AUTO HITCH LATCH, OFF-ROAD WORK, NOT ILLUSTRATED, CONSISTS OF

1шт.

1500606C1

LATCH

NOT ILLUSTRATED

2шт.

1500607C1

SPRING

NOT ILLUSTRATED

2шт.

3121795R1

SHAFT HOUSING

LIFT ROD CROSS, NOT ILLUSTRATED

1шт.

103348

WASHER,1" x 2" x .134"

1.062 X 2.000 X .108, NOT ILLUSTRATED

4шт.

18265R1

LOCK PIN,3/8" x 1 1/4", Slotted

not illustrated 3/8" x 1 1/4", Slotted

2шт.

3061325R1

WASHER

HARDENED, NOT ILLUSTRATED

4шт.

1500621C91

KIT

AUTO HITCH LATCH, ROAD WORK, NOT ILLUSTRATED, CONSISTS OF

1шт.

1500606C1

LATCH

NOT ILLUSTRATED

2шт.

1500607C1

SPRING

RETURN, NOT ILLUSTRATED

2шт.

3121795R2

SHAFT

LIFT ROD CROSS, NOT ILLUSTRATED

1шт.

103348

WASHER,1" x 2" x .134"

1.062 X 2.000 X .108, NOT ILLUSTRATED

4шт.

18265R1

LOCK PIN,3/8" x 1 1/4", Slotted

not illustrated 3/8" x 1 1/4", Slotted

2шт.

3061325R1

WASHER

HARDENED, NOT ILLUSTRATED

4шт.

1500608C1

SHOCK ABSORBER

STOP, RUBBER, NOT ILLUSTRATED

1шт.

933965R1

LOCK WASHER,M10

Not Illustrated

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

M10 SELF, NOT ILLUSTRATED

1шт.

1500609C1

PLATE

STOP, NOT ILLUSTRATED

1шт.
