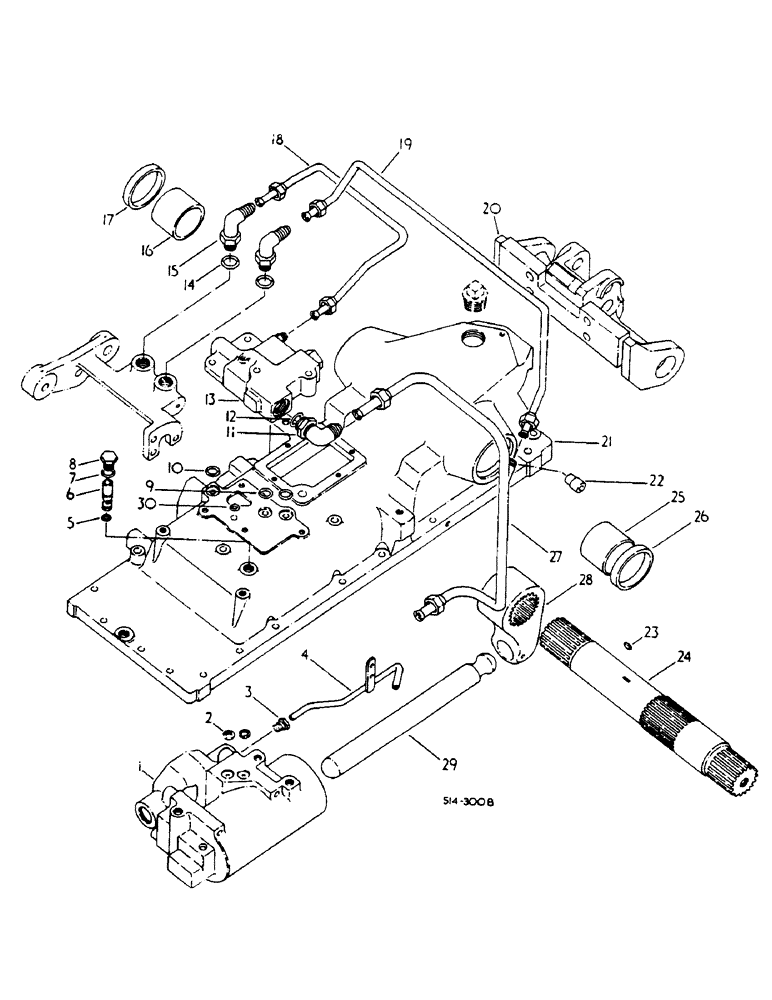

Запчасти Case IH 784 (10-024) - DRAFT CONTROL (07) - HYDRAULICS

1

399885R11

CYLINDER ASSY.

VALVE ASSY, DRAFT CONTROL, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF DRAFT CONTROL CYL VALVE

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

1/2-13 X 1-3/8 HEX HD CAP

3шт.

400000R1

SEALING WASHER

CAP SCREW SEALING

3шт.

2

400002R1

OLIVE

SEAL, CYL TO HYD HOUSING

2шт.

3

222-504

TUBE NUT,9/16"-20

9/16-20 HI-DUTY TUBE FITTING

1шт.

4

60652C1

TUBE ASSY.

LUB

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 X 9/16 X 3/32

1шт.

6

400095R92

VALVE, CUSHION

ASSY

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

8

536855R1

PLUG

3/4-16 STR THD O-RING BOSS

1шт.

9

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

2шт.

10

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 X 7/8 X 3/32

1шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED

1шт.

TUBE ADJ STR THD 90 DEG

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

1шт.

13

59098C93

VALVE

ASSY, UNLOADING AND FLOW CONTROL, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS UNLOADING AND FLOW CONTROL VALVE

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

4шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG

2шт.

16

399992R1

BUSHING

ROCKSHAFT R.H.

1шт.

16

1500447C1

BUSHING

ROCKSHAFT R.H. O/SIZE

1шт.

17

380771R91

SEAL

ROCKSHAFT R.H. OIL

1шт.

17

380770R91

OIL SEAL

ROCKSHAFT R.H.

1шт.

17

530096R91

SEAL

ROCKSHAFT R.H. OIL, OPTIONAL

1шт.

18

66759C1

TUBE ASSY.

VARIABLE FLOW

1шт.

19

66758C1

TUBE

VARIABLE FLOW CONTROL SUPPLY

1шт.

20

527229R91

SUPPORT

SPRING ASSY, DRAFT SENSING

1шт.

21047R1

HEX SOC SCREW,5/8"-11 x 1 3/4"

5/8-11 X 1-3/4 HEX SOC HD

4шт.

19842

SPARE PART

PIN, 5/16 X 1/2 DOWEL

1шт.

21

406003R22

HOUSING ASSY.

HYDRAULIC UNIT

1шт.

531143R2

STUD

TOP COVER LONG

2шт.

531144R1

STUD

TOP COVER SHORT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

22

399993R1

BUSHING

ECCENTRIC SHAFT

1шт.

23

376057R1

BUCKET TOOTH KEY

ROCKSHAFT HUB

1шт.

24

400049R2

SHAFT

ROCK, HYD DRAFT CONTROL

1шт.

537126R2

PLATE

RETAINING LIFT ARM

2шт.

24

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

25

527749R1

BUSHING,63.52mm ID x 66.67mm OD x 50.8mm L

ROCKSHAFT L.H.

1шт.

25

1500532C1

BUSHING

ROCKSHAFT L.H. O/SIZE

1шт.

26

380212R91

OIL SEAL

ROCKSHAFT L.H.

1шт.

26

530095R91

SEAL

ROCKSHAFT L.H. OIL, OPTIONAL

1шт.

27

3129243R1

TUBE

ASSY, DRAFT CONTROL PRESSURE, 785

1шт.

27

66760R1

TUBE ASSY, DRAFT CONTROL PRESSURE, 784

1шт.

28

400053R3

LEVER

ROCKSHAFT BELLCRANK

1шт.

376069R1

SET SCREW

ROCKSHAFT BELLCRANK

1шт.

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

9512 up

1шт.

400052R1

PIN

HYD CYL CONN ROD

1шт.

16558R1

WASHER

17/64 X 5/8 X 18 GA

1шт.

83723R1

WAVE WASHER

SPRING

1шт.

103384

COTTER PIN,1/8" x 3/4"

Up to 9511

1шт.

29

400054R2

ROD

HYD. CYLINDER CONNECTING

1шт.

30

59099C1

O-RING,2.39mm Thk x 6.6mm ID

1шт.
