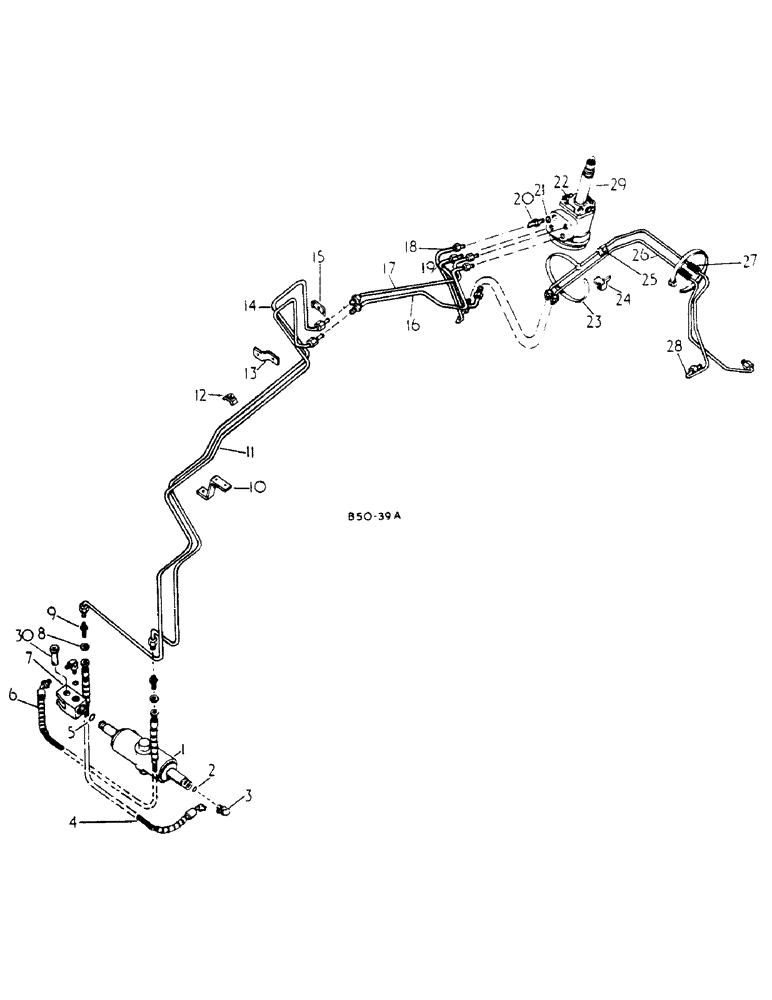

Запчасти Case IH 784 (10-009) - POWER STEERING, DANFOSS (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
CYLINDER ASSY, HYD PS, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF POWER STEERING CYLINDER
1шт.
3
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
9/16-18 C-Z 37 DEG HYD FLARED
2шт.
4
3121235R1
HOSE
ASSY, POWER STEERING CYL R.H.
1шт.
6
3121235R1
HOSE
ASSY, POWER STEERING CYL L.H.
1шт.
7
3125306R1
CLEVIS,9/16" - 18
CYL END, 8410 UP, 278-529 UP
1шт.
7
549670R2
CLEVIS,3/4" - 16
CYL END 7/8 THREAD, UP TO 8409, UP TO 278-528
1шт.
8
9403293
LOCK NUT,Blkhd, 9/16"-18
9/16-18 C-Z BULKHEAD UNION
2шт.
9
9403254
FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
9/16-18 C-Z 37 DEG HYD FLARED TUBE BULKHEAD
2шт.
115553
LOCK WASHER,Int Tooth, 5/8"
2шт.
10
529646R1
BRACKET
FRONT MANIFOLD SUPPORT
1шт.
9635082
NUT,5/16" - 18, Gr 5
1шт.
11
3121189R2
TUBE ASSY.
POWER STEERING R.H. FORWARD, 2-WHEEL DRIVE
1шт.
11
66109C1
PIPE
TUBE ASSY, POWER STEERING R.H. FORWARD, 4-WHEEL DRIVE
1шт.
12
384891R11
CLAMP
ASSY, POWER STEERING TUBE
1шт.
179795
TILLAGE BLADE
1/4-20 X 3/4 HEX HD CAP
2шт.
103319
LOCK WASHER,1/4"
2шт.
13
529642R1
BRACKET
FRONT MANIFOLD
1шт.
109084
NUT,1/4"-20, G5
1шт.
103319
LOCK WASHER,1/4"
1шт.
14
3121188R2
TUBE ASSY.
POWER STEERING L.H. FORWARD, 2-WHEEL DRIVE
1шт.
14
66107C1
PIPE
TUBE ASSY, POWER STEERING L.H. FORWARD, 4-WHEEL DRIVE
1шт.
15
384891R11
CLAMP
ASSY, POWER STEERING TUBE
1шт.
16
3116268R2
TUBE ASSY.
POWER STEERING R.H. REAR
1шт.
3125513R1
NIPPLE, LUBE
NIPPLE GROMMET
1шт.
16
3123903R1
HOSE
POWER STEERING REAR, SUPER DE-LUXE CAB
1шт.
17
3116267R1
TUBE ASSY.
POWER STEERING L.H. REAR
1шт.
3125513R1
NIPPLE, LUBE
NIPPLE GROMMET
1шт.
17
3123903R1
HOSE
POWER STEERING REAR, SUPER DE-LUXE CAB
1шт.
18
3116272R2
TUBE ASSY.
POWER STEERING RETURN FORWARD, MACHINES NOT FITTED W/CAB
1шт.
18
3116829R91
HOSE ASSY.
POWER STEERING RETURN FORWARD, MACHINES FITTED W/CAB
1шт.
3125553R1
GROMMET
SPARE PART
1шт.
18
3123917R1
HOSE
POWER STEERING FRONT, SUPER DE-LUXE CAB
1шт.
19
3116271R2
TUBE ASSY.,0.375" OD, 12.44, 4.28" Length
POWER STEERING PRESSURE FORWARD, MACHINES NOT FITTED W/CAB
1шт.
19
3116830R91
HOSE ASSY.
POWER STEERING PRESSURE FORWARD, MACHINES FITTED W/CAB
1шт.
3125553R1
GROMMET
SPARE PART
1шт.
19
3123917R1
HOSE
POWER STEERING FRON, SUPER DE-LUXE CAB
1шт.
20
587639R1
HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring
9/16-18 C-Z 37 DEG HYD FLARED
4шт.
22
VALVE ASSY, INTEGRAL POWER STEERING, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF INTEGRAL HYDROSTATIC STEERING VALVE
1шт.
23
306132C1
CABLE TIE,14.5" L
CABLE STRAP 14 IN, REAR MANIFOLD TUBES
2шт.
24
529638R1
BRACKET
REAR MANIFOLD
1шт.
25
529637R1
GUIDE
MANIFOLD TUBE
1шт.
26
66105C1
TUBE ASSY.
POWER STEERING PRESSURE REAR, 784
1шт.
26
3129256R1
TUBE ASSY.
POWER STEERING PRESSURE REAR, 785
1шт.
27
536009R1
FUEL HOSE,0.31" ID x 2.50"
Spacer
2шт.
28
3129257R1
TUBE ASSY.
POWER STEERING RETURN REAR, 785
1шт.
28
66104C1
PIPE
TUBE ASSY, POWER STEERING RETURN REAR, 784, MACHINES NOT FITTED W/CAB, SUPER DE-LUXE CAB
1шт.
28
3129273R1
TUBE ASSY.
POWER STEERING RETURN REAR, 785
1шт.
28
3116828R1
TUBE ASSY.
POWER STEERING RETURN REAR, 784
1шт.
9410280
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
3/8 HYD 37 DEG FLARED TUBE
1шт.
SWIVEL, M.C. VALVE, MACHINES FITTED W/CAB
1шт.
29
3121187R91
SHAFT
STEERING W/NUT
1шт.
F19646
LOCK NUT,13/16"-20, Thin
13/16-20
1шт.
660200R1
SPACER,10.7mm ID x 17.14mm OD x 9.5mm L
2шт.
179835
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
2шт.
30
67488C2
PIN
POWER STEERING CYL
1шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
1шт.
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 SH DRIVE TYPE LUB
1шт.
Выбрано товаров: 60
