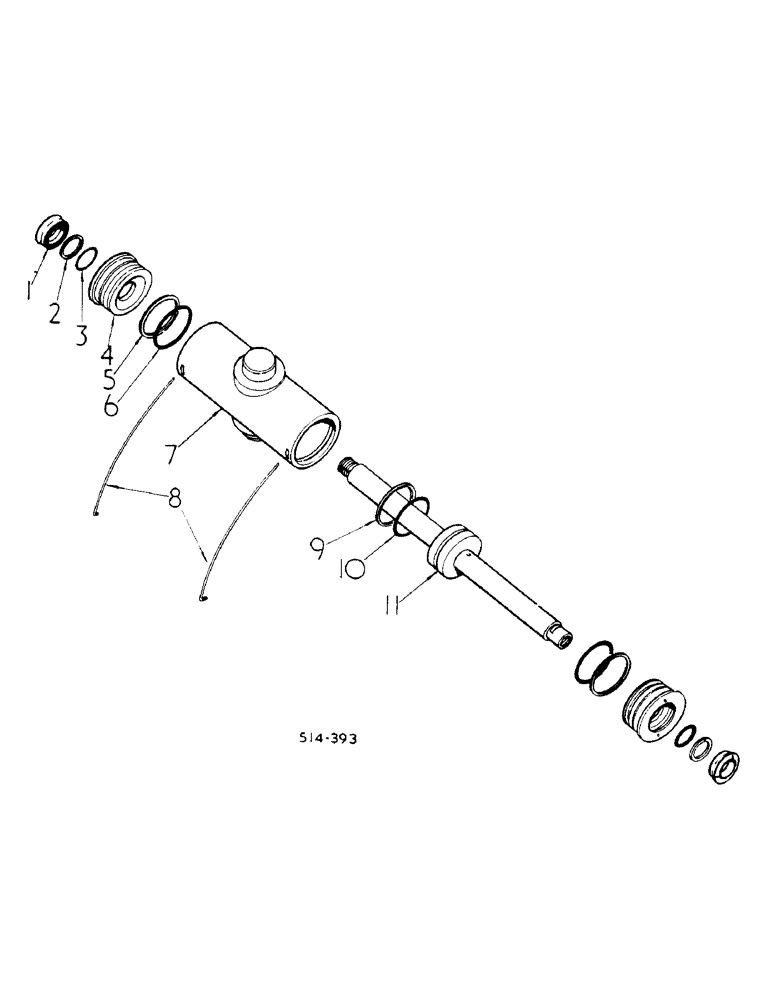

Запчасти Case IH 784 (10-005) - POWER STEERING CYLINDER (07) - HYDRAULICS

549667R92

STEERING CYLINDER

HYD POWER

1шт.

84336125R

REMAN-HYD CYLINDER

278 (1/78-12/81), 784 (EUROPE) (1/77-12/81), 785 (1/81-12/86), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER, PISTON ROD

2шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

PISTON ROD BACKUP

2шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 X 1-1/4 X 1/8

2шт.

4

400591R1

HEAD

REAR

2шт.

5

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

REAR HEAD BACKUP

2шт.

6

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 X 2-1/2 X 1/8, REAR HEAD STATIC

2шт.

7

400587R1

HYD CYL SLEEVE

BODY ASSY

1шт.

84336125R

REMAN-HYD CYLINDER

278 (1/78-12/81), 784 (EUROPE) (1/77-12/81), 785 (1/81-12/86), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

8

385133R1

RETAINING WIRE

RING, RETAINING

2шт.

9

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL, PISTON

1шт.

10

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2-1/16 X 2-1/4 X 3/32 PISTON SEAL

1шт.

11

549668R2

PISTON ROD

ASSY

1шт.

55355C91

GASKET KIT

SEAL FOR CYLINDER, NOT ILLUSTRATED, CONSISTS OF

1шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

NOT ILLUSTRATED

2шт.

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

NOT ILLUSTRATED

2шт.

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

NOT ILLUSTRATED

1шт.

379959R1

RING,Square, 3.17mm Thk x 58mm ID

NOT ILLUSTRATED

1шт.

385133R1

RETAINING WIRE

RING, NOT ILLUSTRATED

1шт.

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

NOT ILLUSTRATED

2шт.

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

NOT ILLUSTRATED

2шт.

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER, NOT ILLUSTRATED

2шт.
