Запчасти Case IH 784 (08-047) - STARTER MOTOR, LUCAS (06) - ELECTRICAL

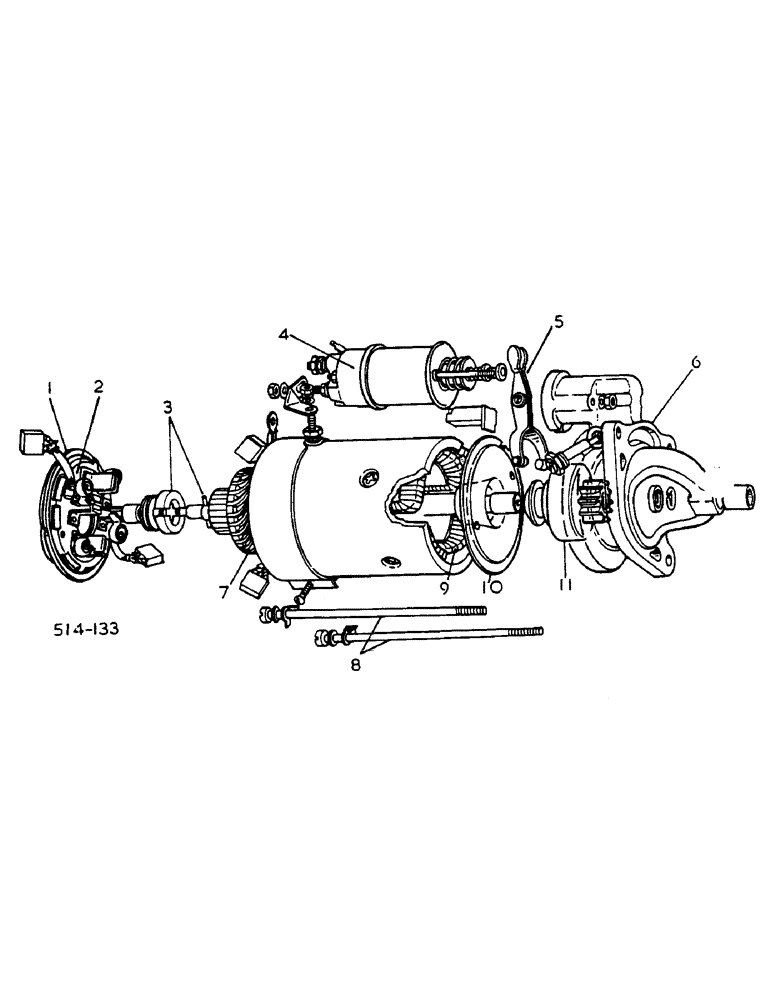

Схема запчастей Case IH 784 - (08-047) - STARTER MOTOR, LUCAS (06) - ELECTRICAL
6
3
8
9
1
11
2
7
5
10
4

Артикул

Название

Примечание

Количество

537140R92

X

STARTER MOTOR CPTE, LUCAS M50, 26336 H/K

1шт.

The 3206527R91 subs to 84058C1. Per David Pierce at the vendor, they are not interchangeable. The starter assembly 537140R92 subs to 189330A5 and they are, but the internal parts are not interchangeable.

1шт.

1

3206511R91

BRACKET

KIT, CE ASSY

1шт.

2

3113026R91

PLATE ASSY.

BRUSH MOUNTING

1шт.

3118371R91

BRUSH, COMMUTATOR

BRUSH KIT

1шт.

3206523R91

SPRING KIT

BRUSH SPRINGS

1шт.

3

3113030R91

KIT

BRAKES

1шт.

4

3113035R91

COVER

ASSY, SOLENOID END

1шт.

5

3206517R91

LINK ASSY.

SOLENOID

1шт.

6

3113039R91

BRACKET

ASSY, D.E.

1шт.

7

3113038R91

ARMATURE

ASSY

1шт.

8

3113036R91

BOLT

ASSY, THROUGH

1шт.

9

3206527R91

KIT

FIELD COILS

1шт.

The 3206527R91 subs to 84058C1. Per David Pierce at the vendor, they are not interchangeable. The starter assembly 537140R92 subs to 189330A5 and they are, but the internal parts are not interchangeable.

1шт.

10

3119902R91

SUPPORT

BRACKET ASSY, INTERMEDIATE

1шт.

11

3113033R91

DRIVE

ASSY

1шт.

11

3116471R91

DRIVE ASSY.

1шт.

3113029R91

BUSHING

KIT, NOT ILLUSTRATED

1шт.

3206528R91

SEAL KIT

NOT ILLUSTRATED

1шт.

3206529R91

KIT

SUNDRY PARTS, NOT ILLUSTRATED

1шт.

3113034R91

SWITCH

ASSY, SOLENOID, NOT ILLUSTRATED

1шт.

Выбрано товаров: 21
