Запчасти Case IH 784 (08-033) - FENDER CONDUIT AND 2-PIN SOCKET, MACHINES NOT FITTED W/CAB (06) - ELECTRICAL

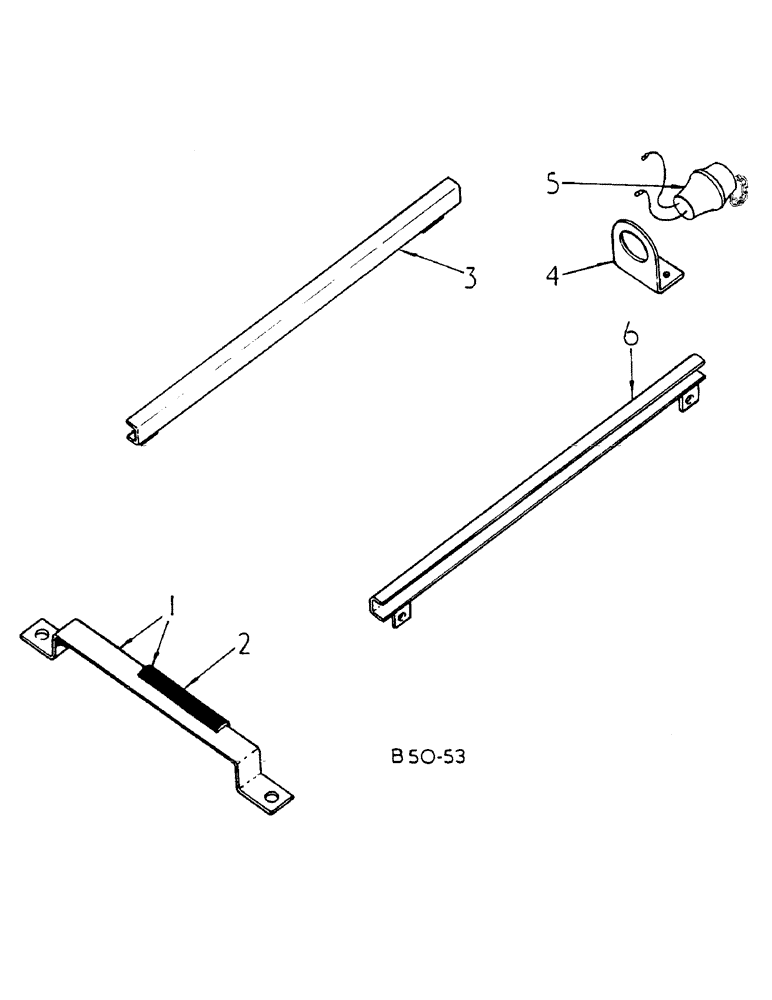

Схема запчастей Case IH 784 - (08-033) - FENDER CONDUIT AND 2-PIN SOCKET, MACHINES NOT FITTED W/CAB (06) - ELECTRICAL
3
6
1
4
2
5

Артикул

Название

Примечание

Количество

1

3123177R91

SUPPORT ASSY.

CABLE HARNESS W/MOULDING 3109490R1

1шт.

2

3109490R1

X

MOULDING, EDGE

1шт.

3

3123179R1

CABLE SHEATH

CONDUIT ASSY, FENDER R.H.

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.

4

709237R2

BRACKET

POWER SOCKET

1шт.

5

705271R91

SOCKET/RECEPTACLE

2-PIN

1шт.

6

3123179R1

CABLE SHEATH

CONDUIT ASSY, FENDER L.H., USED W/FLAT TOP FENDERS

1шт.

6

3123182R2

CABLE SHEATH

CONDUIT ASSY, L.H., USED W/CROWN TOP FENDERS

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.

FOR USE W/SUPPORT ASSY, CABLE HARNESS W/MOULDING 3109490R1, NOT ILLUSTRATED

1шт.

Выбрано товаров: 10
