Запчасти Case IH 784 (08-029) - FENDER WIRING & SIDE/FLASHER LIGHTS, DE-LUXE LIGHTING, FOR MACHINES W/FLAT TOP FENDERS OR SAFETY CAB (06) - ELECTRICAL

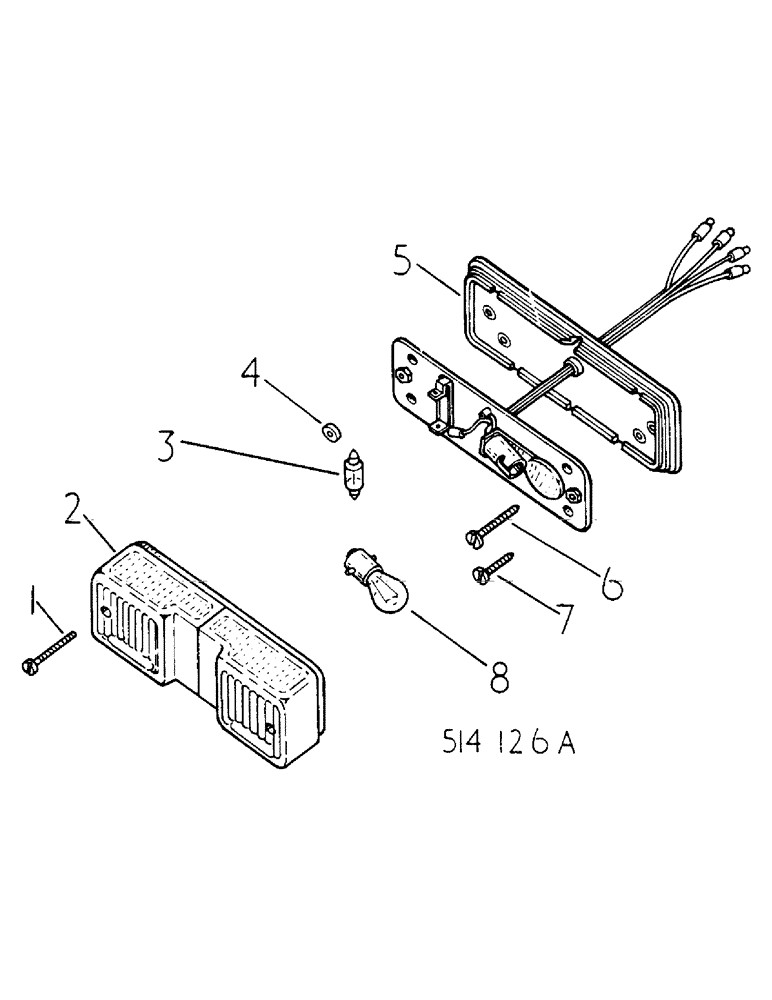

Схема запчастей Case IH 784 - (08-029) - FENDER WIRING & SIDE/FLASHER LIGHTS, DE-LUXE LIGHTING, FOR MACHINES W/FLAT TOP FENDERS OR SAFETY CAB (06) - ELECTRICAL
3
8
4
7
1
5
2
6

Артикул

Название

Примечание

Количество

3123575R91

WARNING LIGHT

SIDE AND FLASHER L.H.

1шт.

3123141R91

LIGHT

SIDE AND FLASHER R.H.

1шт.

440502

SCREW,Hex Hd, #10-24 x 5/8"

SPARE PART NO. 10-24 X 5/8 HEX HD

8шт.

120217

LOCK WASHER,#10

8шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

1

3112785R1

SCREW

4BA X 1-1/2 ZINC PLTD

4шт.

2

3113395R1

LENS

CLEAR/AMBER

2шт.

3

710196R1

BULB,C5W, 12V, 5W

Festoon

1шт.

4

3112786R1

WASHER

RING, RETAINING

4шт.

5

3125160R1

CUSHION

BLACK RUBBER, VERTICAL

2шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

4шт.

7

24247R1

SCREW

NO. 13-16 X 7/8 PAN HD STD

4шт.

8

3025210R91

BULB

LAMP, 12V 21W SCC

2шт.

3123186R1

HARNESS

FENDER, NOT ILLUSTRATED

1шт.

3123189R2

HARNESS

FENDER, UP TO 784/10284 - 278/559, MACHINES W/SAFETY CAB, NOT ILLUSTRATED

1шт.

3125876R1

HARNESS

FENDER, 784/10285 - 278/560 UP, MACHINES W/SAFETY CAB, NOT ILLUSTRATED

1шт.

708114R1

SPARE PART CABLE, NOT ILLUSTRATED

2шт.

3113661R1

GROMMET

FENDER HARNESS, NOT ILLUSTRATED

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1-WAY FENDER R.H., NOT ILLUSTRATED

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1-WAY NO. PLATE, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1-WAY, MACHINES FITTED W/CAB, NOT ILLUSTRATED

4шт.

Выбрано товаров: 21
