Запчасти Case IH 784 (08-025) - FENDER WIRING AND SIDE LIGHTS, TRACTORS W/FLAT TOP FENDERS (06) - ELECTRICAL

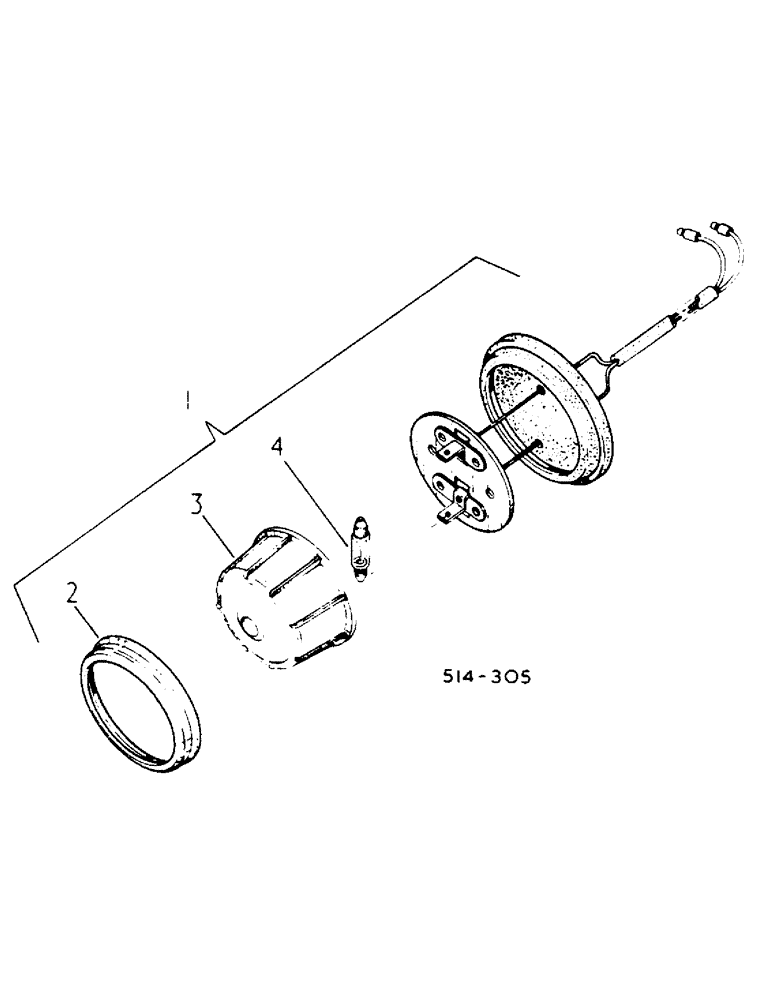

Схема запчастей Case IH 784 - (08-025) - FENDER WIRING AND SIDE LIGHTS, TRACTORS W/FLAT TOP FENDERS (06) - ELECTRICAL
1
4
3
2

Артикул

Название

Примечание

Количество

1

3123172R91

INDICATOR LIGHT

SIDE

2шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

10-16 X 1/2 SELF-TAPPING

4шт.

2

3118023R1

BEZEL

1шт.

3

3118022R1

LENS

CLEAR

1шт.

4

710196R1

BULB,C5W, 12V, 5W

Festoon

1шт.

3113661R1

GROMMET

FENDER HARNESS, NOT ILLUSTRATED

2шт.

3123187R1

HARNESS

FENDER, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1-WAY L.H. FENDER, NOT ILLUSTRATED

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1-WAY R.H. FENDER, NOT ILLUSTRATED

6шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1-WAY NO. PLATE, NOT ILLUSTRATED

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2-WAY NO. PLATE, NOT ILLUSTRATED

1шт.

3112888R1

PLUG

BLANKING SIDE LIGHT, NOT ILLUSTRATED

2шт.

3113657R1

PLUG

BLANKING SIDE LIGHT, NOT ILLUSTRATED

4шт.

Выбрано товаров: 13
