Запчасти Case IH 784 (13-042) - SAFETY CAB (05) - SUPERSTRUCTURE

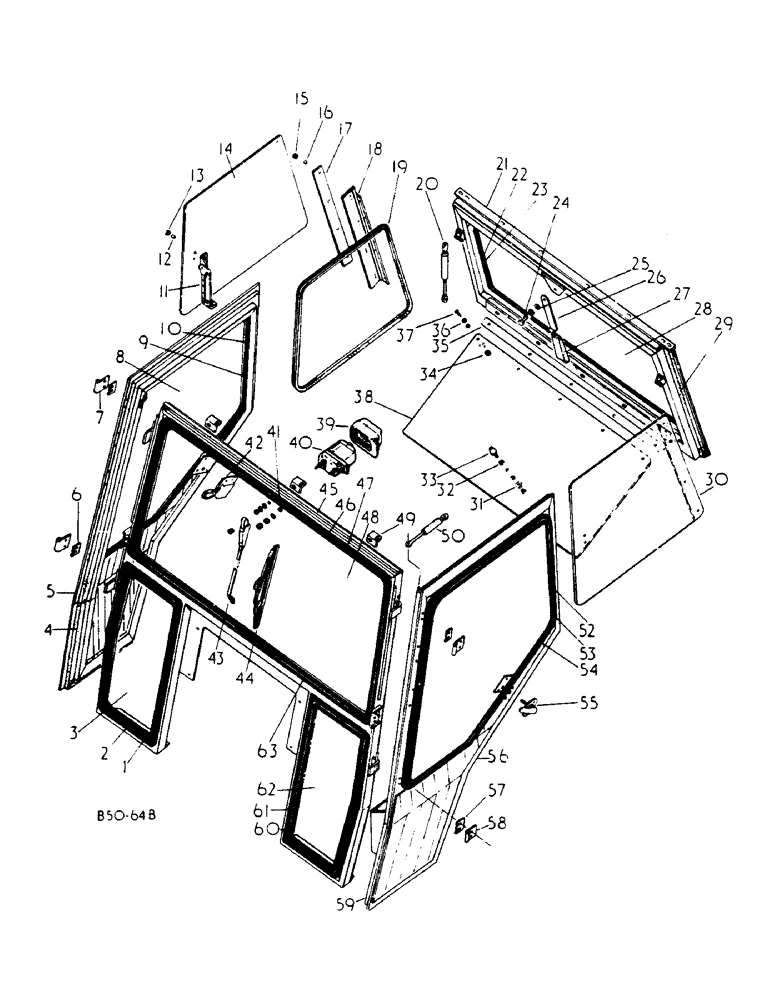

Схема запчастей Case IH 784 - (13-042) - SAFETY CAB (05) - SUPERSTRUCTURE
26
52
9
32
41
23
18
35
63
57
5
36
42
37
11
20
45
40
54
22
62
10
60
2
34
27
58
43
12
49
33
14
16
47
15
24
19
44
61
46
28
55
3
1
7
8
29
6
17
13
50
39
30
48
38
31
21
56
25
53

Артикул

Название

Примечание

Количество

1

3113560R1

SEAL

LOWER R.H.

1шт.

2

SEAL, FILLER, 930 MM, LOWER SCREEN HSG AND BOTTOM

1шт.

2

SEAL, FILLER, 709 MM, LOWER SCREEN OUTSIDE

1шт.

2

SEAL, FILLER, 267 MM, LOWER SCREEN TOP

1шт.

2

3123731R1

FILLING STRIP

SEAL, BULK LENGTH 30 METRES

1шт.

3

3118695R1

GLASS

LOWER

1шт.

4

3123064R1

SEAL

DOOR FLANGE UPPER - 25.4 INS.

1шт.

4

3123065R1

SEAL ASSY.

DOOR FLANGE REAR - 63.0 INS.

1шт.

4

3123066R1

DOOR SEAL

DOOR FLANGE LOWER - 13.4 INS.

1шт.

4

3123067R1

SEAL

DOOR FLANGE FRONT - 58.0 INS.

1шт.

5

3123024R93

DOOR

CPTE, R.H.

1шт.

3123026R3

DOOR

ASSY, R.H., ON ORDERS FOR R92 OR R2 ORDER 3123024R93 OR 3123026R3 W/TWO PIVOT 3118418R1 RETAINER 3125246R1 AND CLIP 3053111R1

1шт.

6

3116641R1

BAR

DOOR HINGE, AS REQUIRED 2 MAX PER HINGE

1шт.

7

3116642R1

SUPPORT

HINGE

2шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051 PLN

4шт.

3116643R1

LOCK NUT

1/4 PHILIDAS PLASTIC CAP

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 UNC X 3/4 HEX HD

4шт.

8

3123032R1

GLASS

DOOR R.H.

1шт.

9

3123034R1

SEAL

CAB WINDOW R.H. DOOR

1шт.

10

STRIP, FILLER, 637.5 MM, DOOR VERTICAL

1шт.

10

STRIP, FILLER, 430.5 MM, DOOR ANGLE

1шт.

10

STRIP, FILLER, 328.5 MM, DOOR BOTTOM

1шт.

10

3123731R1

FILLING STRIP

SEAL, BULK LENGTH 30 METRES

1шт.

11

3123051R1

LEVER ASSY.

WINDOW LOCKING R.H., ILLUSTRATED

1шт.

11

3123050R1

LEVER ASSY.

WINDOW LOCKING L.H.

1шт.

23927R1

SCREW

1/4-20 X 3/4 PAN HD CR REC.

4шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051 PLN

4шт.

3116643R1

LOCK NUT

1/4 UNC W/PLASTIC CAP

4шт.

12

3123049R1

SPACER

4шт.

13

3118661R1

GROMMET

4шт.

14

3123043R1

GLASS

SIDE WINDOW

1шт.

15

3118661R1

GROMMET

8шт.

16

3123047R1

SPACER

8шт.

17

3123048R1

RUBBER SEAL

RUBBER

2шт.

18

3123046R1

HINGE

SIDE WINDOW R.H., ILLUSTRATED

1шт.

18

3123045R1

HINGE

SIDE WINDOW L.H.

1шт.

23927R1

SCREW

1/4-20 X 3/4 PAN HD CR REC.

8шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051 PLAIN

16шт.

3116643R1

LOCK NUT

1/4 UNC, W/PLASTIC CAP

8шт.

167084

SEAL PROTECTION

10-24 X 1/2 PAN HD CR REC TAP

10шт.

19

SEAL, WINDOW, 2260 MM

1шт.

19

3123060R1

SEAL

WINDOW -.H. AND R.H. WINDOW, BULK LENGTH 150 FEET

1шт.

20

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

SPRING, 784-7852 UP, 278-528 UP

2шт.

20

3118430R1

GAS STRUT

SPRING, UP TO 784-7851, 278-527

2шт.

3118431R1

CLEVIS PIN

CLEVIS

2шт.

3118432R1

WASHER

4шт.

3053111R1

RING, SNAP,M10, Ext

RING SNAP RETAINING

4шт.

21

3123721R92

GLASS

PANEL CPTE, REAR WINDOW

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

120393

BEARING WASHER,5/16", SAE

.344 ID X .688 OD X .051 PLN

6шт.

103320

LOCK WASHER,5/16"

6шт.

22

3112496R1

SEAL

1шт.

23

STRIP, FILLER, 2192 MM, REAR WINDOW TOP AND SIDES

1шт.

23

STRIP, FILLER, 1003 MM, REAR WINDOW BOTTOM

1шт.

23

3123731R1

FILLING STRIP

SEAL, BULK LENGTH 30 METRES

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Latch Plate

1шт.

3121174R1

CAP

COVER, BOLT REAR WINDOW

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

25

536847R1

BELLEVILLE WASHER

BELLEVILLE

1шт.

26

3118655R1

HANDLE

PLATE, LATCH

1шт.

27

3118656R1

GRIP

LATCH

1шт.

28

3118697R1

GLASS

1шт.

29

3112498R1

SEAL, GLASS

REAR WINDOW

2шт.

30

3123043R1

GLASS

SIDE WINDOW

1шт.

31

3118685R1

LOCK NUT

6 MM PHILIDAS W/PLASTIC CAP

1шт.

32

3118659R1

GROMMET

1шт.

33

3118658R1

DAMPER

RUBBER

1шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051 PLN

1шт.

34

3119440R1

LOCK NUT

1/4 UNC Philidas

5шт.

35

3118662R1

RUBBER SEAL

rubber

1шт.

36

3118661R1

GROMMET

1шт.

37

3118660R1

BOLT

shoulder

5шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 PLN

5шт.

120394

WASHER,3/8", SAE

.406 x .812 x .051 PLN

5шт.

38

3118657R1

GLASS

lower rear window

1шт.

39

3113075R2

GUARD

head, rubber, up to 8145 and 278/529

1шт.

39

3124465R1

PROTECTOR

GUARD rubber head, 8146 up and 278/530 up

1шт.

40

3113074R91

ELECTRIC MOTOR

WIPER, windsrceen, order: motor Ref. 2125203R91, guard Ref. 3124465R1, arm Ref. 3125204R91, blade Ref. 3125205R91, lead 3125206R91 and 3125207R1.

1шт.

40

3125203R1

MOTOR HOUSING

CPTE. windscreen

1шт.

3125206R1

CABLE

flying lead

1шт.

3125207R1

CABLE

flying lead - earth, 8146 up and 278/530 up

1шт.

41

3112426R1

GROMMET

wiper entry

1шт.

42

3112461R91

HANDLE

LATCH ASSY, inside, R.H., illustrated

1шт.

42

3112460R91

HANDLE

LATCH ASSY, inside, L.H. not illustrated

1шт.

178716

SCREW,#10 - 32 x 3/8"

10-32 x 3/8 tap

8шт.

120391

WASHER,#10

10-1/2 x .036 ZND

8шт.

43

3113076R91

ARM

wiper, up to 8145 and 278/529

1шт.

43

3125204R91

ARM

wiper, 8146 up and 278/530 up

1шт.

44

3113077R1

BLADE

wiper, up to 8145 and 278/529

1шт.

44

3125205R1

BLADE

wiper, 8146 up and 278/530 up

1шт.

45

3112425R1

SEAL

windscreen, top

1шт.

46

3113555R1

SEAL

1шт.

47

STRIP, filler, 2372MM, windscreen top and sides

1шт.

47

STRIP, filler, 1153MM, windscreen bottom

1шт.

47

SEAL strip, filler, bulk length 30 meters

1шт.

48

3118694R1

GLASS

upper

1шт.

49

3113566R1

ANGLE

windscreen mounting

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

120393

BEARING WASHER,5/16", SAE

.344 ID x .688 OD x .051 PLN, angle to top frame

3шт.

50

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

SPRING door

2шт.

3123042R1

WAVE WASHER

11.5 x 15.0 wave

2шт.

3125246R1

RETAINER

2шт.

3053111R1

RING, SNAP,M10, Ext

RING SNAP CLIP retaining, 784/7852 up and 278/528 up

2шт.

50

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

SPRING door

2шт.

3123041R1

SET SCREW

5/16-18 shoulder set

4шт.

80681

LOCK WASHER,5/16"

4шт.

3123042R1

WAVE WASHER

11.5 x 15. wave

8шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3123039R1

BRACKET

door strut

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

80681

LOCK WASHER,5/16"

1/4 lock, up to 784/7851 and 278/527

4шт.

51

not used

1шт.

52

3123032R1

GLASS

DOOR, L.H.

1шт.

53

3123033R1

SEAL

L.H.

1шт.

54

STRIP, filler, 637.5MM, door vertical

1шт.

54

STRIP, filler, 430.5MM, door angle

1шт.

54

STRIP, filler, 328.5MM, door bottom

1шт.

55

3113466R91

HANDLE

outside

2шт.

3112458R1

SCREW

2BA x 5/8 CSK HD

4шт.

120217

LOCK WASHER,#10

4шт.

3112459R1

NUT

2BA

4шт.

56

3123023R93

DOOR

complete, L.H.

1шт.

3123025R3

DOOR

ASSY L.H., on orders for R92 or R2 order: P/N 3123032R93 or 312025R3 w/ two pivot P/N 3118418R1, retainer 3125246R1 and clip 3053111R1

1шт.

57

3116641R1

BAR

2 maxium per hinge

1шт.

58

3116642R1

SUPPORT

hinge

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 PLN

1шт.

3116643R1

LOCK NUT

NUT, 1/4 UNC W/ PLASTIC CAP

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 UNC x 3/4 hex HD

1шт.

59

3123064R1

SEAL

door flange, upper, 25.4 in.

1шт.

59

3123065R1

SEAL ASSY.

door flange, rear, 63.0 in.

1шт.

59

3123066R1

DOOR SEAL

door flange, lower, 13.4 in.

1шт.

59

3123067R1

SEAL

door flange, front, 58.0 in.

1шт.

60

3113559R1

SEAL

lower, L.H.

1шт.

61

STRIP filler, 930MM, lower screen outside bottom

1шт.

61

STRIP filler,1153MM, windscreen bottom

1шт.

61

STRIP filler, 267MM, lower screen top

1шт.

61

3123731R1

FILLING STRIP

seal, bulk length 30 meters

1шт.

62

3118695R1

GLASS

lower

1шт.

63

3123013R91

X

windshield, CPTE

1шт.

3123014R1

FRAME

ASSY windscreen

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 ID x .812 OD x .051 pln, windscreen to lower frame

4шт.

1092996R1

PRODUCT GRAPHIC

CAB WARNING, NOT ILLUSTRATED

1шт.

1093182R1

CAUTION DECAL

CAUTION, NOT ILLUSTRATED

1шт.

1093189R1

PRODUCT GRAPHIC

DOOR L.H., NOT ILLUSTRATED

1шт.

1093190R1

PRODUCT GRAPHIC

DOOR R.H., NOT ILLUSTRATED

1шт.

1093191R1

DECAL

SPARE PART A-PILLAR L.H., NOT ILLUSTRATED

1шт.

1093192R1

DECAL

SPARE PART A-PILLAR R.H., NOT ILLUSTRATED

1шт.

1093193R1

PRODUCT GRAPHIC

C-PILLAR L.H., NOT ILLUSTRATED

1шт.

1093319R1

PRODUCT GRAPHIC

C-PILLAR R.H., NOT ILLUSTRATED

1шт.

2754343R1

PRODUCT GRAPHIC

INTERNATIONAL, NOT ILLUSTRATED

1шт.
