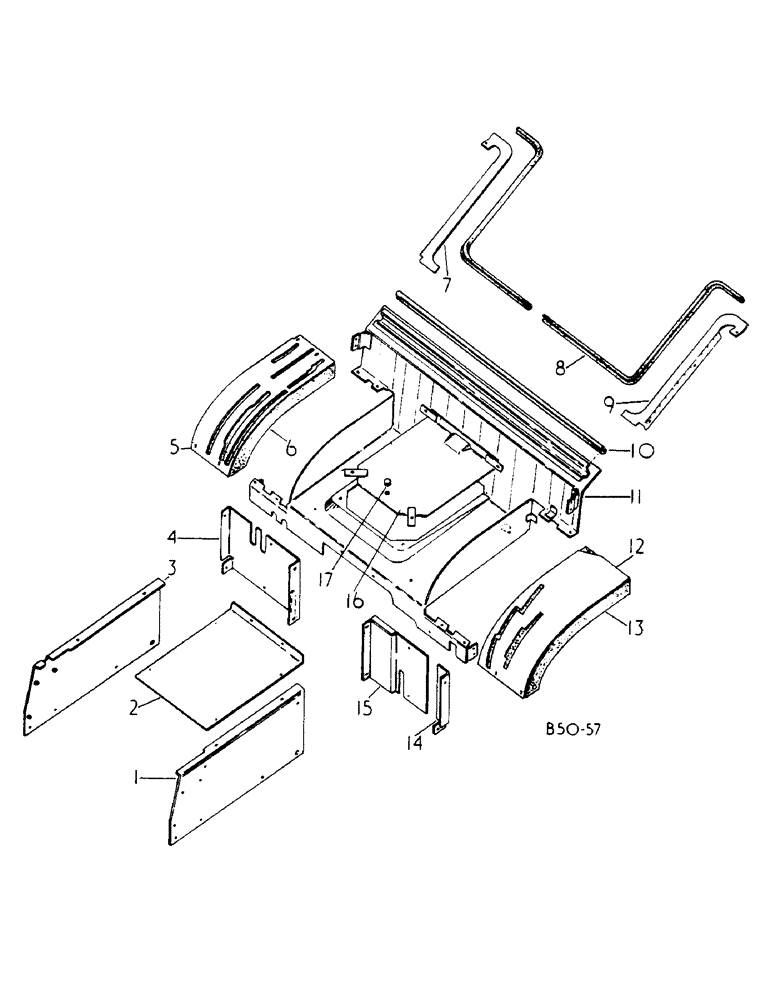

Запчасти Case IH 784 (13-010) - REAR PANELS, 784, MACHINES FITTED WITH CAB (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
3116174R2
PLATE
ASSY, TRANS. SIDE, L.H.
1шт.
3112992R1
NUT
INSERT 1/4-20
4шт.
179801
BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5
3шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
3шт.
103319
LOCK WASHER,1/4"
Plate to steering support
3шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
4шт.
103319
LOCK WASHER,1/4"
Plate to platforms
4шт.
2
3116183R1
PLATE
TRANS. COVER
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
6шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
6шт.
103319
LOCK WASHER,1/4"
Plate to side plates, Plate to seat platform
6шт.
3
3116176R1
PLATE ASSY.
SPARE PART TRANS. SIDE, R.H.
1шт.
3112992R1
NUT
INSERT 1/4-20
4шт.
179801
BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5
3шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
3шт.
103319
LOCK WASHER,1/4"
Plate to steering support
3шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
4шт.
103319
LOCK WASHER,1/4"
Plate to platforms
4шт.
4
3116171R1
CHANNEL
REAR R.H.
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
103319
LOCK WASHER,1/4"
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN, CHANNEL TO SEAT PLATFORM, CHANNEL TO SIDE PLATES, CHANNEL TO PLATFORMS
4шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
1шт.
103319
LOCK WASHER,1/4"
1шт.
109084
NUT,1/4"-20, G5
Channel to fender
1шт.
5
3116173R3
HOUSING
ASSY, HITCH CONTROL, STANDARD MACHINES
1шт.
5
3121582R2
HOUSING
ASSY, HITCH CONTROL, 4-WHEEL DRIVE
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
4шт.
103319
LOCK WASHER,1/4"
4шт.
6
3116807R3
INSULATOR
HITCH CONTROL HOUSING, STANDARD MACHINES
1шт.
6
3121583R3
INSULATOR, HITCH CONTROL HOUSING, 4-WHEEL DRIVE
1шт.
7
3118650R2
SUPPORT
SEAL, R.H.
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
109084
NUT,1/4"-20, G5
2шт.
103319
LOCK WASHER,1/4"
2шт.
23985R1
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
1шт.
8
SEAL, LOWER, 865 MM
1шт.
8
3118678R1
SEAL
LOWER, BULK LENGTH 150 FT
1шт.
9
3118649R2
SUPPORT
SEAL, L.H.
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
109084
NUT,1/4"-20, G5
2шт.
103319
LOCK WASHER,1/4"
2шт.
23985R1
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
1шт.
10
SEAL, UPPER, 1872 MM
1шт.
10
3118678R1
SEAL
UPPER, BULK LENGTH 150 FT
1шт.
11
3116157R2
PLATFORM
CPTE, SEAT
1шт.
31188431
NUT, INSERT 1/4-20
16шт.
3112951R1
NUT
INSERT 5/16-18
4шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
8шт.
109084
NUT,1/4"-20, G5
8шт.
103319
LOCK WASHER,1/4"
8шт.
12
3116165R2
HOUSING
CPTE, TRANS. SHIFT PATTERN, SYNCHROMESH TRACTORS
1шт.
12
3116924R1
HOUSING
CPTE, TRANS SHIFT PATTERN, FORWARD AND REVERSE
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
4шт.
103319
LOCK WASHER,1/4"
4шт.
13
3116803R1
INSULATOR
TRANS. SHIFT PATTERN HOUSING
1шт.
14
3116810R1
CHANNEL
REAR VERTICAL OUTER L.H.
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
103319
LOCK WASHER,1/4"
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
REAR CHANNEL TO PLATFORM
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
1шт.
103319
LOCK WASHER,1/4"
1шт.
109084
NUT,1/4"-20, G5
Rear channel to fenders
1шт.
15
3116927R2
CHANNEL
VERTICAL INNER L.H.
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
4шт.
103319
LOCK WASHER,1/4"
Rear channel to seat platform, Rear channel to side plate, Rear channel to platforms
4шт.
16
3116161R1
PLATE
SPARE PART CPTE, HOUSING COVER
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
4шт.
103319
LOCK WASHER,1/4"
4шт.
17
538239R1
PLUG
GROMMET, HOUSING COVER PLATE
1шт.
3125820R1
SLEEVE
PVC, FOR USE W/PLATFORM CPTE. SEAT, NOT ILLUSTRATED
4шт.
