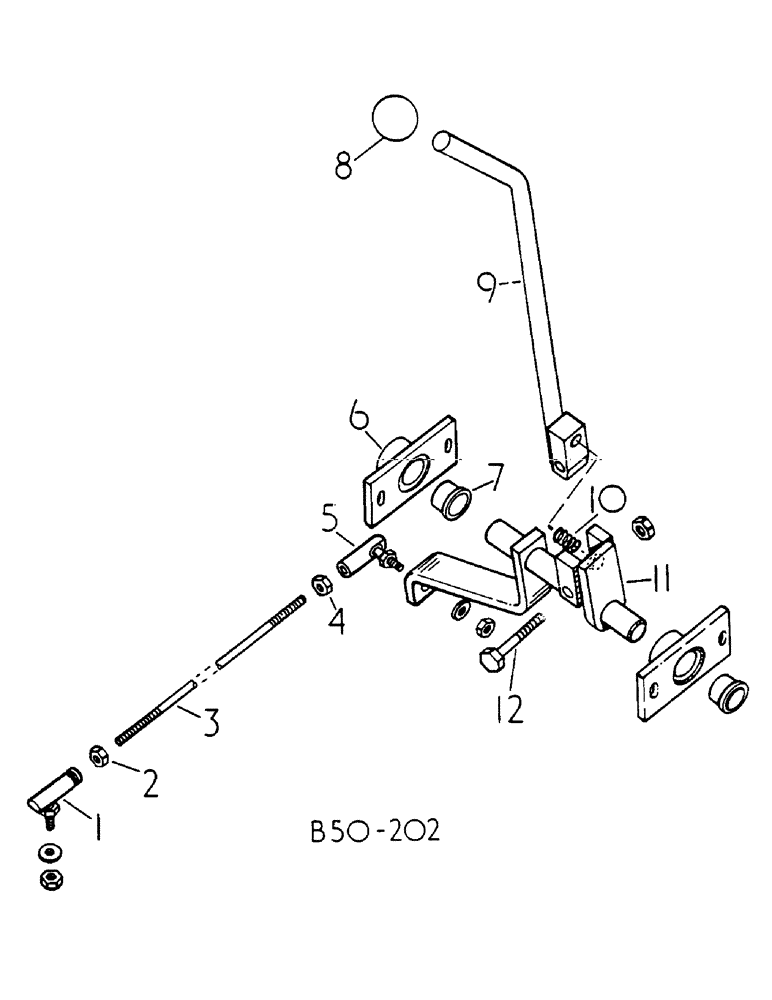

Запчасти Case IH 784 (07-123) - SPEED CONTROL, SYNCHRO, 852 UP, CAB 206304 UP (04) - Drive Train

1

3123928R1

JOINT

BALL L.H.

1шт.

NLS

NO LONGER SERVICED

3/8 TOOTHED

1шт.

3048059R1

NUT, 3/8-24 HEX LOCK

1шт.

2

23460R1

NUT,Jam, 3/8"-24, G5, LH

1шт.

3

3129523R1

ROD

TIE

1шт.

4

103026

NUT,3/8"-24, G5

1шт.

5

3123927R1

JOINT

BALL R.H.

1шт.

NLS

NO LONGER SERVICED

3/8 TOOTHED

1шт.

3048059R91

LOCK NUT

3/8-24 HEX

1шт.

6

3129507R1

HOUSING

BUSH

2шт.

3125499R1

SCREW

M8 X 20 SET

4шт.

934488R1

LOCK WASHER,Ext Tooth, M8

WASHER, 5/16

4шт.

30382R1

NUT,M8 x 1.25, Cl 10

4шт.

7

3129508R1

BUSHING

2шт.

8

3129518R1

KNOB

1шт.

9

3129521R1

LEVER

GEAR

1шт.

10

3129524R1

SPRING

SPARE PART

1шт.

11

3129522R1

LEVER

SPARE PART CONNECTION

1шт.

12

30715R1

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

M10 X 55

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

M10 SELF-LOCKING

1шт.
