Запчасти Case IH 784 (07-096) - RANGE TRANSMISSION, IN-REAR FRAME, 4-WHEEL DRIVE (04) - Drive Train

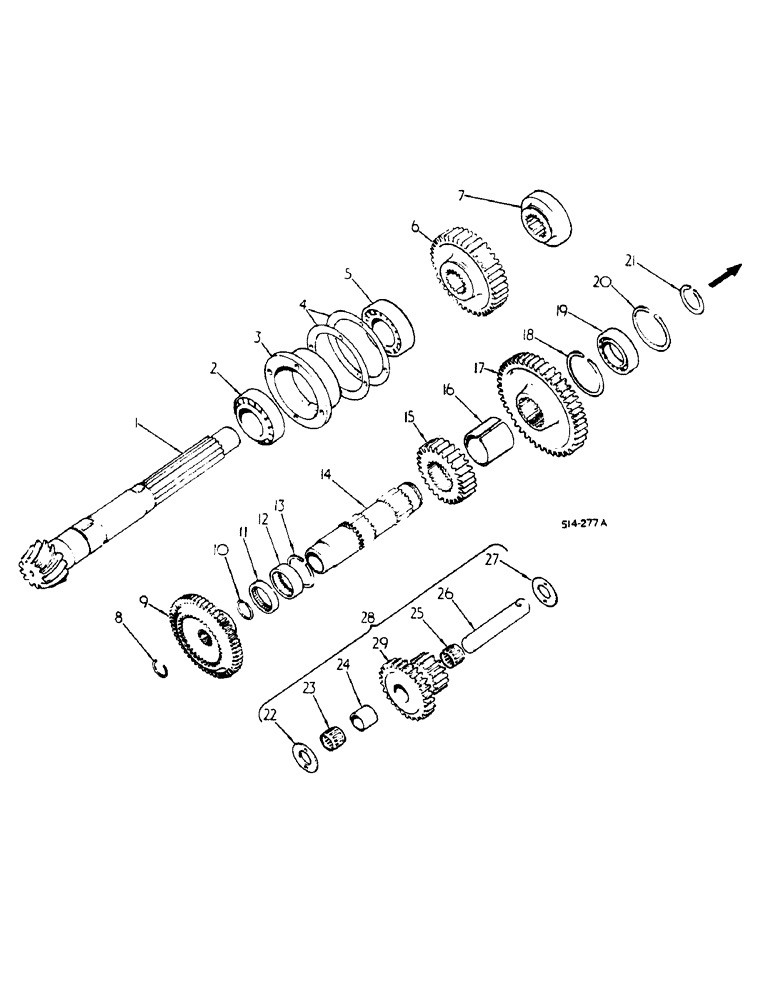

Схема запчастей Case IH 784 - (07-096) - RANGE TRANSMISSION, IN-REAR FRAME, 4-WHEEL DRIVE (04) - Drive Train
16
26
12
8
15
6
19
2
22
13
4
17
25
20
28
1
10
24
9
21
3
5
29
11
27
18
7
23
14

Артикул

Название

Примечание

Количество

1

SET, BEVEL GEARS MATCHED 12/53T, CONSISTS OF

1шт.

SHAFT

1шт.

GEAR, SEE FRONT DRIVE PTO

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, MAIN SHAFT REAR

1шт.

2

399824R91

ROLLER BEARING

ASSY, MAIN SHAFT REAR, OPTIONAL

1шт.

3

399825R1

BEARING CUP

CAGE, MAIN SHAFT BRG

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

65423C1

SHIM KIT

MAIN SHAFT BRG CAGE, SERVICE, CONSISTS OF

1шт.

SHIM

2шт.

SHIM

5шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, MAIN SHAFT FRONT

1шт.

5

399822R91

ROLLER BEARING

ASSY, MAIN SHAFT FRONT, OPTIONAL

1шт.

6

399461R1

GEAR

FWD REVERSE SLIDING, 40T, SYNCHROMESH DRIVE TRACTORS, SLOW SPEED DRIVE TRAIN TYPE A

1шт.

6

399462R1

GEAR

FWD REVERSE SLIDING, 42T, SYNCHROMESH DRIVE TRACTORS, FAST SPEED DRIVE TRAIN TYPE B

1шт.

7

399830R2

COLLAR

HI-SPEED SHIFT, SYNCHROMESH DRIVE TRAIN

1шт.

8

533266R1

RING, SNAP

RING SNAP IPTO FRONT DRIVEN SHAFT RET

1шт.

9

404218R1

GEAR

PUMP DRIVE, 55T, TRACTORS W/DUAL SPEED

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

PUMP DRIVE GEAR RET

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

PUMP DRIVE GEAR

1шт.

11

527747R91

BEARING, NEEDLE

PUMP DRIVE GEAR, OPTIONAL

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT

1шт.

12

527746R91

BEARING, NEEDLE

COUNTERSHAFT, OPTIONAL

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

LO-RANGE DRIVING GEAR RET

1шт.

14

404096R1

SHAFT

RANGE TRANSMISSION

1шт.

15

404100R1

PINION

GEAR, LO-RANGE DRIVING, 27T, SYNCHROMESH DRIVE TRACTORS, SLOW SPEED DRIVE TRAIN TYPE A

1шт.

15

103150C1

PINION

GEAR, LO-RANGE DRIVING, 24T, SYNCHROMESH DRIVE TRACTORS, FAST SPEED DRIVE TRAIN TYPE B

1шт.

16

399835R1

BUSHING

COUNTERSHAFT GEARS

1шт.

17

404097R1

GEAR

CONSTANT MESH, 46T

1шт.

18

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

19

69843R91

SPARE PART COUNTERSHAFT FRONT BALL

1шт.

19

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

COUNTERSHAFT FRONT

1шт.

19

360635R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

528101R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

528102R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

3047867R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

3069304R91

BALL BEARING

COUNTERSHAFT FRONT, OPTIONAL

1шт.

20

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

21

327068R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG EXT

1шт.

22

3112846R1

THRUST WASHER

IDLER

1шт.

23

3112844R91

BEARING, NEEDLE

REVERSE IDLER GEAR, SYNCHROMESH DRIVE TRACTORS

1шт.

23

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR NEEDLE, SYNCHROMESH DRIVE TRACTORS, OPTIONAL

1шт.

24

3112845R1

SPACER

IDLER BEARING

1шт.

25

3112844R91

BEARING, NEEDLE

REVERSE IDLER GEAR, SYNCHROMESH DRIVE TRACTORS

1шт.

25

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR NEEDLE, SYNCHROMESH DRIVE TRACTORS, OPTIONAL

1шт.

26

399838R3

SHAFT

REVERSE IDLER, SYNCHROMESH DRIVE TRACTORS

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

27

3112846R1

THRUST WASHER

IDLER

1шт.

28

NOT APPLICABLE

1шт.

29

70298C1

PINION

GEAR, REVERSE IDLER 2/AND 24T, FAST SPEED DRIVE TRAIN TYPE B

1шт.

29

3112843R1

GEAR

GEAR, REVERSE IDLER 18 AND 27T, SLOW SPEED DRIVE TRAIN TYPE A

1шт.

Выбрано товаров: 50
