Запчасти Case IH 756 (A-09) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AUXILIARY SCREEN Chassis, Radiator & Sheet Metal

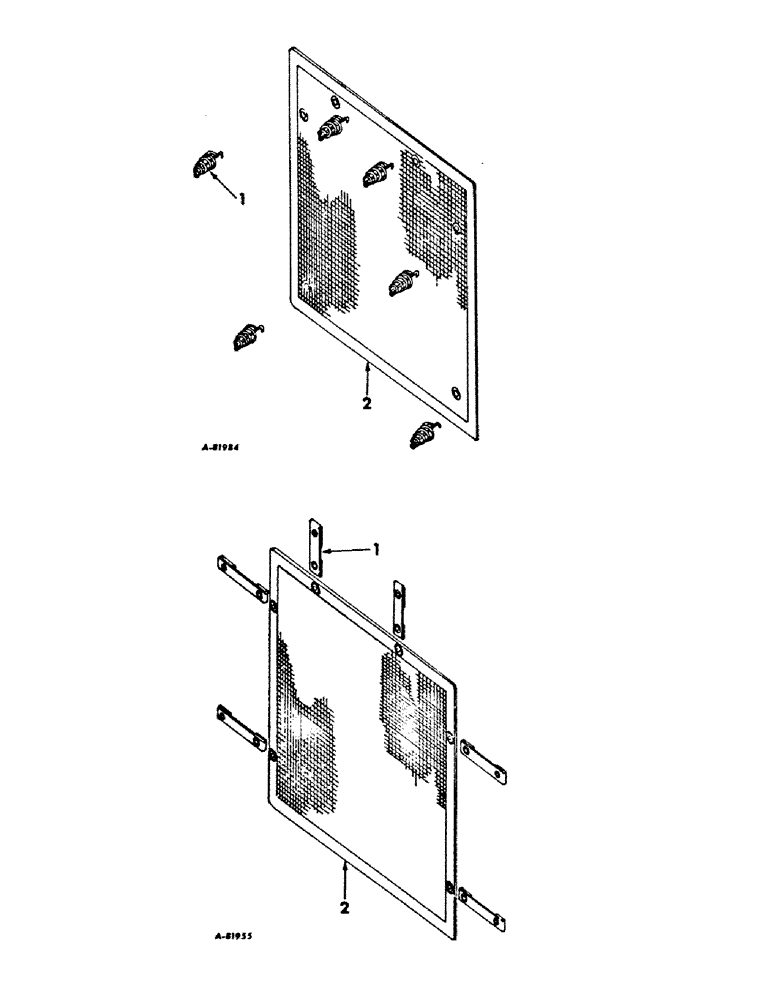

Схема запчастей Case IH 756 - (A-09) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AUXILIARY SCREEN Chassis, Radiator & Sheet Metal
1
2
1
2

Артикул

Название

Примечание

Количество

1

391347R1

SPRING

FASTENER, radiator auxiliary screen

6шт.

1

391347R1GV

SPRING

Value, Spring Fastener

6шт.

2

SCREEN, radiator auxiliary, not serviced separately, order parts accessory, 538844R91

1шт.

538844R91

PARTS ACCESSORY, radiator auxiliary screen

1шт.

1

538896R1

STRAP, radiator auxiliary screen mounting

6шт.

2

SCREEN, radiator auxiliary, not serviced separately, order parts accessory, 538844R91

1шт.

Выбрано товаров: 6
