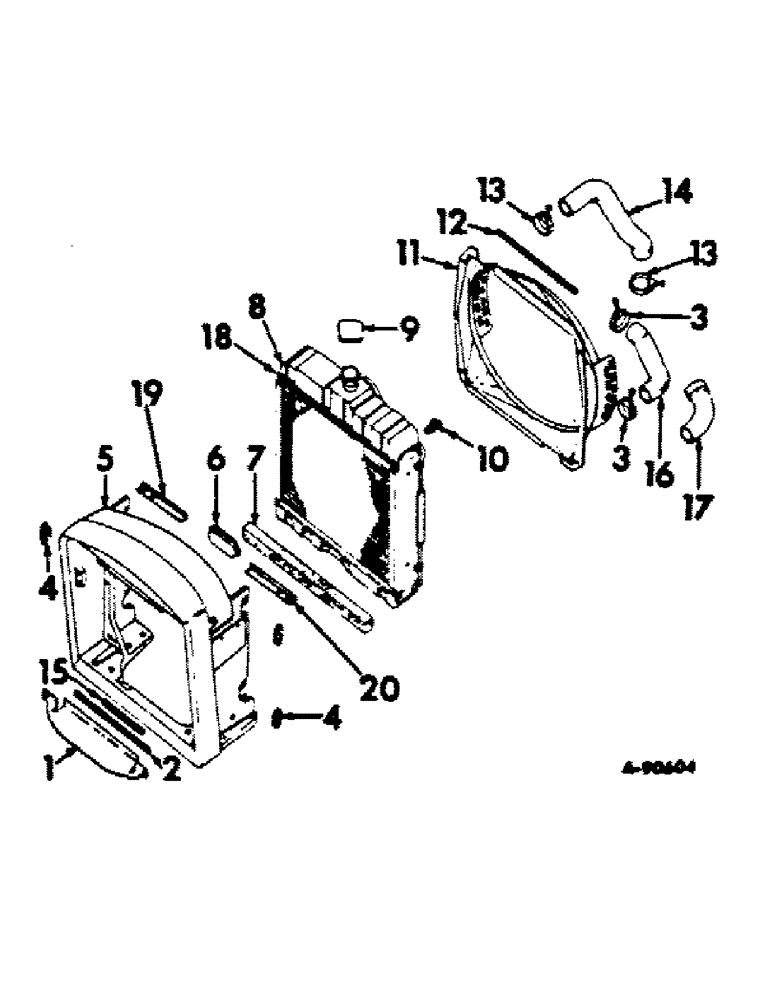

Запчасти Case IH 756 (A-06) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AND CONNECTIONS Chassis, Radiator & Sheet Metal

1

383407R1

BAFFLE, radiator air, International tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

2

385631R1

SEAL

radiator air baffle long, International tractors

1шт.

3

39205H

CLAMP

radiator outlet hose

2шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

5

398625R1

SUPPORT, radiator

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, 1/4" x 7/8", Slotted

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, Farmall tractors

5шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, International tractors

6шт.

384317R1

SCREW, 5/8-11 x 2-3/4 12 PT-hd cap, Farmall tractors

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

383788R1

PLUG

radiator support

1шт.

7

383839R1

GASKET

GASKET, radiator baffle, Farmall, tractors

1шт.

8

65426C1

RADIATOR

ASSY, less filler cap, replaces 396351R91, gasoline engine tractors

1шт.

8

378713R92

RADIATOR

ASSY, less filler cap, LP gas engine tractors, heavy duty use on gasoline engine tractors

1шт.

8

378713R92GV

RADIATOR

Value, Radiator

1шт.

8

396352R91

RADIATOR ASSY, less filler cap, diesel engine tractors

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator pressure

1шт.

10

614201R1

VALVE

COCK, 1/4 drain, radiator

1шт.

614200R1

ADAPTER

EXTENSION, drain cock, diesel engine tractors

1шт.

11

396356R1

SHROUD ASSY, fan, carbureted engine tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

11

396358R11

SHROUD ASSY, fan, diesel engine tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

217902

SCREW, 1/4-20 x 3/8 hex-soc-hd CZP

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

4шт.

12

389599R1

SEAL, fan housing

1шт.

13

39205H

CLAMP

radiator inlet hose

2шт.

14

396353R1

RADIATOR HOSE,2.00" ID x 12.00", SAE 20R4 CLASS R GRADE 1

Inlet, Carbureted engine tractors 2.00" ID x 12.00", SAE 20R4 CLASS R GRADE 1

1шт.

14

396354R1

RADIATOR HOSE,2.00" ID x 7.70", SAE 20R4 CLASS R, GRADE 1

Inlet, Diesel engine tractors, Farmall tractors 2.00" ID x 7.70", SAE 20R4 CLASS R, GRADE 1, Serial Range: -15185

1шт.

14

396354R1

RADIATOR HOSE,2.00" ID x 7.70", SAE 20R4 CLASS R, GRADE 1

Inlet, Diesel engine tractors, International tractors 2.00" ID x 7.70", SAE 20R4 CLASS R, GRADE 1, Serial Range: -8328

1шт.

14

406766R1

RADIATOR HOSE,2.00" ID x 8.44", SAE 20R4, CLASS D2

Inlet, Diesel engine tractors, Farmall tractors 2.00" ID x 8.44", SAE 20R4, CLASS D2, Start Serial: 15186

1шт.

14

406766R1

RADIATOR HOSE,2.00" ID x 8.44", SAE 20R4, CLASS D2

Inlet, Diesel engine tractors, International tractors 2.00" ID x 8.44", SAE 20R4, CLASS D2, Start Serial: 8328

1шт.

15

389600R1

STRIP

SEAL, radiator air

1шт.

16

378704R1

RADIATOR HOSE,2.00" ID x 10.50", SAE 20R4, CLASS R, GRADE 1

Outlet, Carbureted engine tractors 2.00" ID x 10.50", SAE 20R4, CLASS R, GRADE 1

1шт.

17

396355R1

RADIATOR HOSE,2.00" ID x 10.30", SAE 20 R4 CLASS R, GRADE 1

Outlet, Diesel engine tractors 2.00" ID x 10.30", SAE 20 R4 CLASS R, GRADE 1

1шт.

18

385631R1

SEAL

radiator air

2шт.

19

398629R1

BAFFLE, grille LH air, Farmall tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SCREW, 1/4-20 x 1 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

398630R1

BAFFLE, grille RH air, Farmall tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SCREW, 1/4-20 x 1 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
