(N-29) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH

Запчасти Case IH 756 (N-29) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH Accessories & Attachments

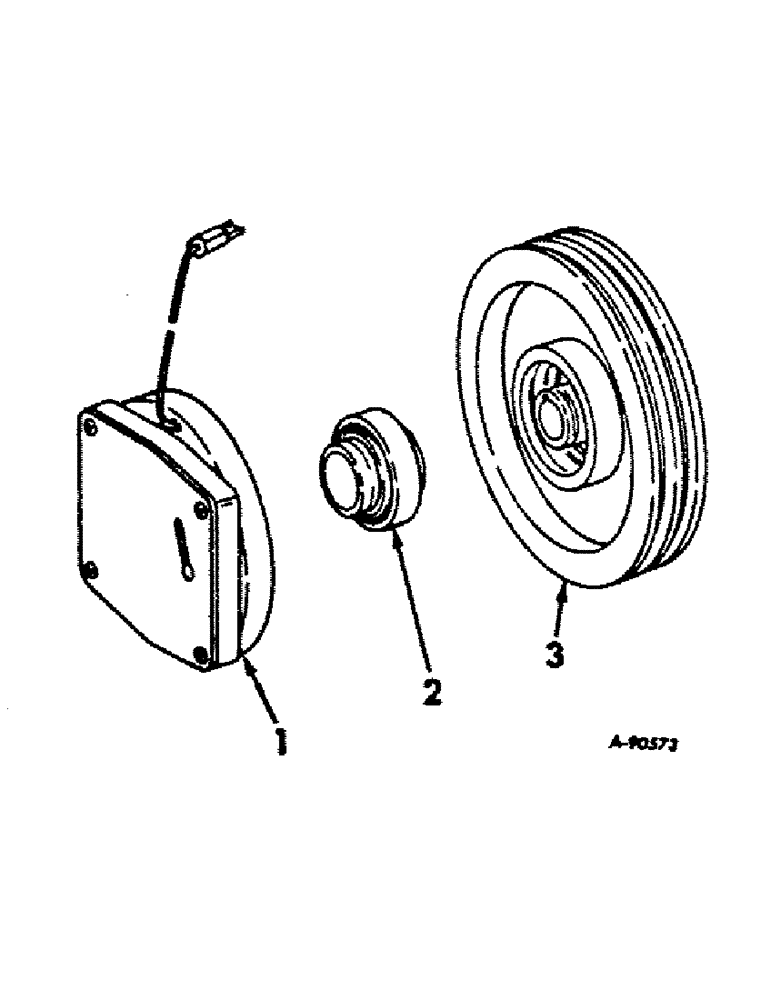

Схема запчастей Case IH 756 - (N-29) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH Accessories & Attachments
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

400550R91

CLUTCH ASSY, sheave

1шт.

1

400556R1

COIL ASSY, clutch

1шт.

2

BEARING ASSY, roller, not serviced separately, order 400550R91

1шт.

3

400557R1

PULLEY ASSY, clutch

1шт.

572838R1

WASHER, special

1шт.

400555R1

SCREW, 1/4-20 x 3/8 CDP hex. washer hd

4шт.

572830R1

NO LONGER SERVICED

SCREW, 5/16-24 x 1-1/8 hex-hd nylock cap

1шт.
