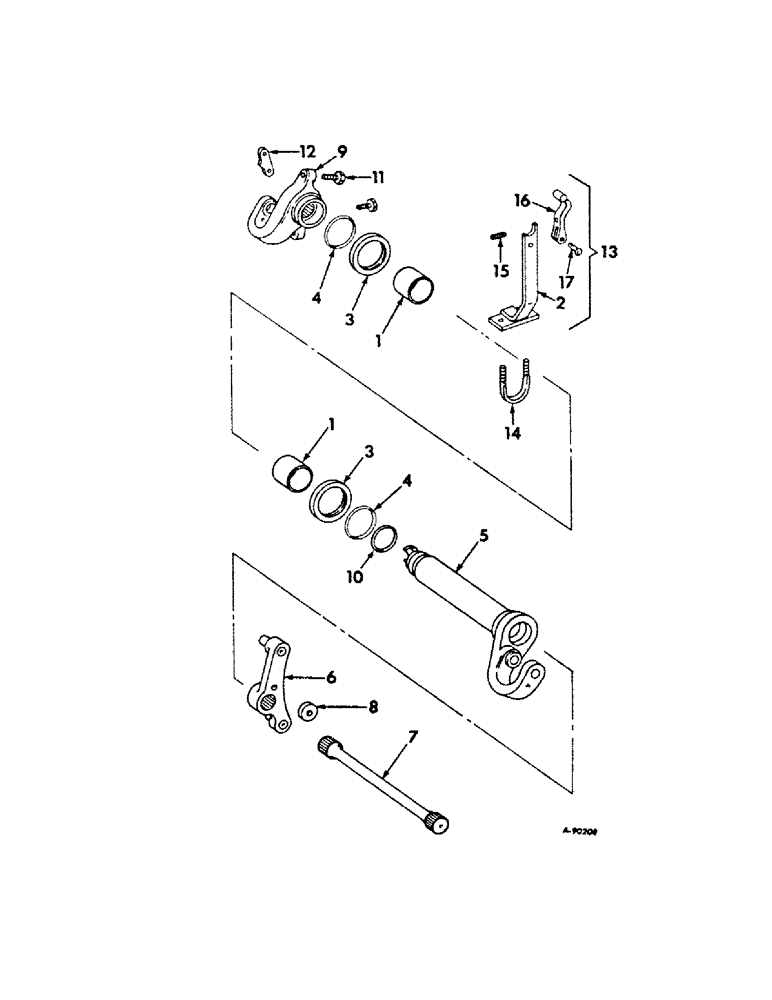

Запчасти Case IH 756 (F-34) - HYDRAULICS SYSTEM, DRAFT SENSING (07) - HYDRAULIC SYSTEM

1

394838R91

BUSHING

ASSY, liner & case

2шт.

2

391055R11

ARM

ASSY, sensing lower

1шт.

3

385099R1

RETAINER

crank arm o-ring

2шт.

4

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

3-3/8 x 3-3/4 x 3/16, crank arm o-ring retainer

2шт.

5

381921R12

ARM

ASSEMBLY, RH crank

1шт.

6

381923R11

KIT

BRACKET ASSY, torsion bar anchor

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

106267

WASHER,5/8"

11/16 x 1-3/4 x .134

2шт.

7

393243R1

SHAFT

BAR, torsion spring

1шт.

8

381926R1

SPACER

RETAINER, torsion bar

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

381927R1

ARM

LH crank, optional w/398097R1

1шт.

9

398097R1

ARM

LH crank, optional w/381927R1

1шт.

10

383260R1

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

2-1/2 x 2-7/8 x 8/16, LH crank arm

1шт.

11

383261R2

ADJUSTMENT SCREW

stop adjusting

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

12

383262R1

SUPPORT

RETAINER, crank arm

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

391054R91

ARM ASSY.

ARM ASSY, sensing

1шт.

14

381931R1

BOLT (SPREADER),3/8" - 16 x 3.05" W x 3.40" L

U-BOLT, sensing arm

1шт.

15

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

16

138632

SET SCREW,Hex Soc, 1/4"-20 x 1 1/2"

SCREW, 1/4-20 hex-soc-hd CV-PT set

1шт.

17

390118R1

ARM

sensing upper

1шт.

18

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Rod end 5/16" x .940", HDN

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), , Extended prong CCT. 3/32" x 5/8"

1шт.

398315R91

COVER ASSY

PARTS ACCESSORY, power beyond, for tractors equipped w/double auxiliary hydraulic valve, order control valve, 383267R94 if tractor is not already so equipped

1шт.
