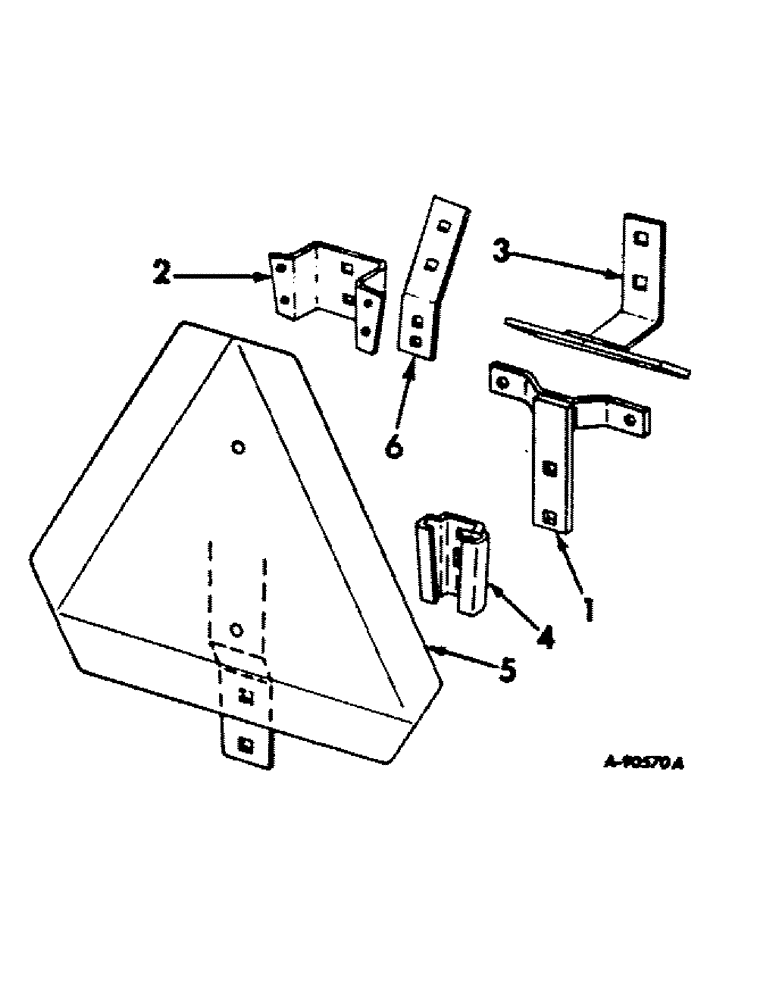

Запчасти Case IH 756 (N-02) - PARTS ACCESSORIES AND ATTACHMENTS, SLOW MOVING VEHICLE REFLECTOR MOUNTING BRACKET Accessories & Attachments

398972R91

PARTS ACCESSORY, S.M.V. mtg bracket, for tractors equipped w/vertical acting seat or low no sag seat, consists of ref nos. 1 and 4

1шт.

401373R91

PARTS ACCESSORY, S.M.V. mtg bracket, for tractors equipped w/hyd seat, consists of ref nos. 2 and 4

1шт.

401374R91

PARTS ACCESSORY, S.M.V. mtg bracket, tractors with allen cabs, consists of ref nos. 3 and 4

1шт.

534761R91

PARTS ACCESSORY, S.M.V. mtg bracket, tractors with excel cabs, consists of ref nos. 4 and 6

1шт.

1

398973R1

BRACKET

ASSY, SMV emblem mounting

1шт.

2

401375R1

SUPPORT, SMV emblem mounting

1шт.

130141

SCREW,Sl Rnd Hd, #12 - 11 x 7/8"

12-11 x 7/8 C-Z rd hd slt wood

4шт.

3

401376R1

SUPPORT ASSY, reflector mounting, tractors with allen cabs

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

398976R1

BRACKET

SOCKET, SMV emblem mounting

1шт.

19428R1

BOLT, 5/16-18 x 5/8 CD short sq-nk crg

2шт.

19296R1

NUT,5/16"-18, G5

5/16-18 C-Z hex.

2шт.

5

407218R1

PACKAGE

EMBLEM, slow moving vehicle, aluminum

1шт.

5

407220R1

PRODUCT GRAPHIC

EMBLEM, slow moving vehicle, steel

1шт.

6

534767R1

SUPPORT ASSY, SMV emblem mounting, tractors with excel cabs

1шт.

19428R1

BOLT, 5/16-18 x 5/8 CD short sq-nk crg

2шт.

19296R1

NUT,5/16"-18, G5

5/16-18 C-Z hex.

2шт.
