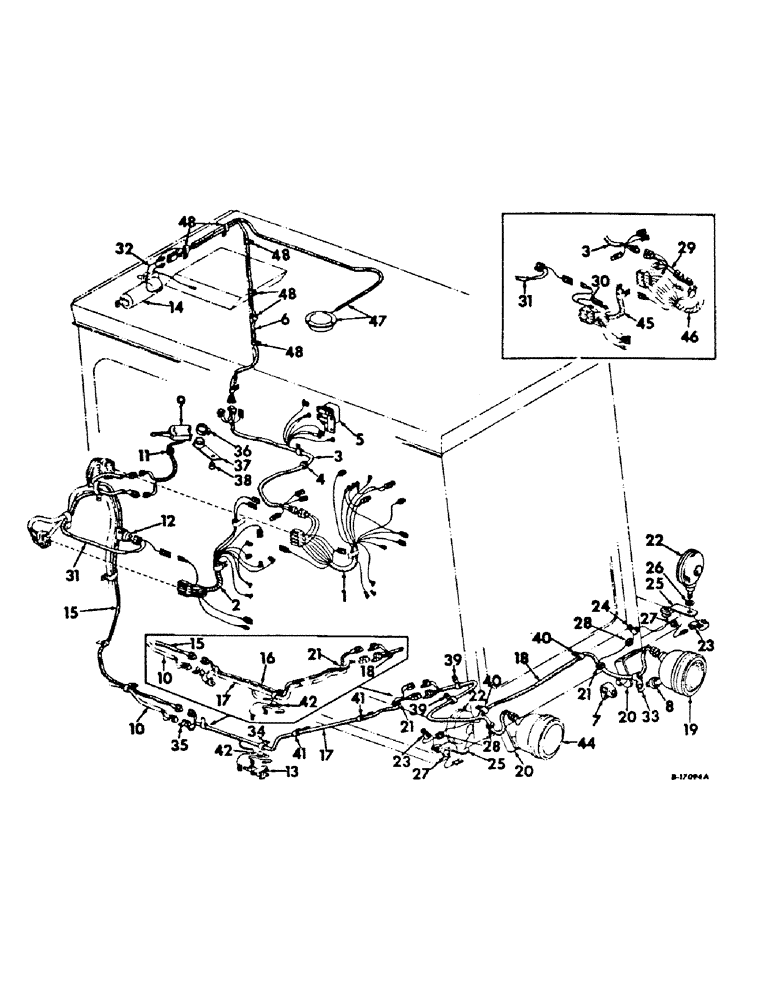

Запчасти Case IH 756 (G-22) - ELECTRICAL SYSTEM, TRACTOR CAB WIRING AND LIGHTING, ALLEN CABS (06) - ELECTRICAL SYSTEMS

1

398857R1

HARNESS ASSY, RH panel cable, factory application

1шт.

2

401659R1

HARNESS ASSY, LH panel cable, factory application

1шт.

3

398861R1

HARNESS ASSY, power cable

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 C-Z int-ext tooth lock

1шт.

4

42731H

GROMMET

cab power supply cable harness rubber

1шт.

5

1115841

RELAY

electric load Delco-Remy, 202303R91

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

157716

SCREW, 1/4-20 x 1/2 C-Z slt-truss-hd mach

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 C-Z int-ext tooth lock

2шт.

6

391790R91

HARNESS ASSY, cab power supply cable

1шт.

7

350920R1

CLAMP

combination rear light

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

365503R1

SPACER

combination rear light

1шт.

9

401612R1

SIGNAL

SWITCH ASSY, turn signal

1шт.

10

HARNESS ASSY, front main cable, refer to starting and lighting listing, this section

1шт.

11

42731H

GROMMET

turn signal switch cable rubber

1шт.

12

FLASHER UNIT, refer to starting and lighting listing, this section

1шт.

13

SOCKET ASSY, electric breakaway connector, refer to starting and lighting listing, this section

1шт.

14

MOTOR ASSY, windshield wiper, refer to windshield wiper motor listing, section N

1шт.

15

401657R1

HARNESS ASSY, turn signal lights cable, Farmall tractors

1шт.

15

401656R1

HARNESS ASSY, turn signal lights cable International tractors

1шт.

16

401658R1

HARNESS ASSY, turn signal lights extension, field application, Farmall tractors

1шт.

17

398860R1

HARNESS ASSY, rear main cable extension, International tractors

1шт.

18

401608R1

HARNESS ASSY, rear cab lights cable

1шт.

19

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490, sealed beam unit, 371461R91 and rubber retainer 676078R1

1шт.

20

391157R11

BRACKET ASSY, rear light

2шт.

120376

NUT,5/16"-18, G5

4шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/4 C-Z slt-truss hd-mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

flashing light cable cab

2шт.

22

394129R91

LIGHT

ASSY, combination flashing and turn signal, only serviceable items are lamp, 9417866 and lens, amber, 899280R1 or lens, red, 899279R1, dietz

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness

2шт.

24

366460R1

CABLE CLIP

CLIP, flashing light cable

2шт.

25

394466R1

BRACKET, flashing warning light

2шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

7/16-14 x 3/4 C-Z hex-hd cap

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext tooth lock

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

26

364262R1

GASKET, combination flashing light

2шт.

27

120302

GROMMET,3/8" ID x 27/32" x .188", Diag Cut

flashing light cable fender

2шт.

28

42731H

GROMMET

rear light cables rubber

3шт.

29

398858R1

HARNESS ASSY, RH panel adapter cable, field application

1шт.

30

401654R1

CABLE ASSY, LH panel harness adapter, field application

1шт.

31

401655R1

CABLE ASSY, turn signal switch power

1шт.

32

391791R91

CABLE ASSY, wiper motor

1шт.

33

358986R1

CABLE CLIP

CLIP, flashing light connecting cable

1шт.

34

362126R1

CLIP

breakaway connector socket cable

1шт.

35

266516C1

CONNECTOR, ELEC

CONNECTOR, rear light extension cable, field application, Farmall tractors

1шт.

36

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, switch mounting

1шт.

37

401609R1

BRACKET ASSY, turn signal

1шт.

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 C-Z button

1шт.

180082

BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5

SCREW, 5/16-18 x 1-3/8 C-Z hex-hd cap

1шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

1шт.

38

473855R1

SPACER, turn signal bracket mounting

1шт.

39

370820R1

CLIP

rear cab light cable harness

2шт.

40

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable

2шт.

41

362123R1

CLIP

rear light extensions cable harness

2шт.

42

362121R1

CLIP

breakaway connector socket cables

1шт.

43

(Not used in this application)

1шт.

44

LIGHT ASSY, combination rear and tail, refer to starting and lighting listing, this section

1шт.

45

CABLE ASSY, panel RH, refer to starting and lighting listing, this section

1шт.

46

CABLE ASSY, panel LH, refer to starting and lighting listing, this section

1шт.

47

395276R91

LIGHT W/CABLE, only serviceable items are lamp, 142456, lens, 336853C1 & three screws, 153002

1шт.

48

299403C1

CLAMP

6шт.

441201

SCREW, 12 x 1/2 C-Z slt-pan hd tap.

6шт.

384557R1

CLIP

rear light ext cable harness

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
