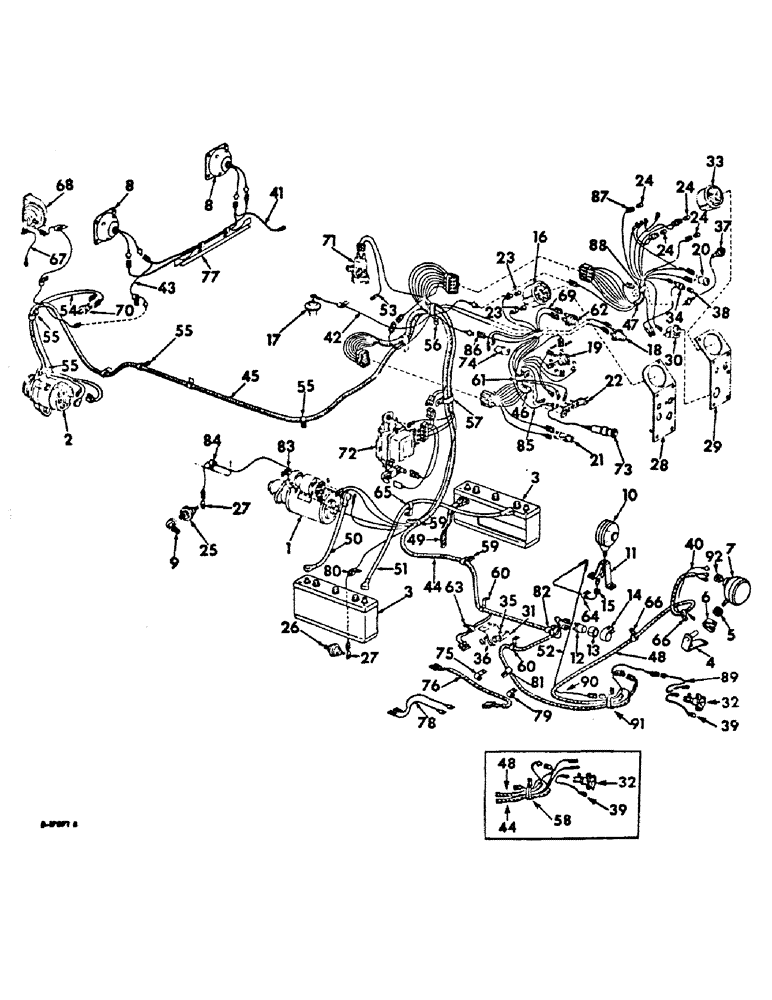

Запчасти Case IH 756 (G-17) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

405885R91

PARTS ACCESSORY, electric breakaway connector socket, consists of ref nos 32, 48, 89, 90, 91 and attaching hardware, Start Serial: 8181

1шт.

1

CRANKING MOTOR, refer to cranking motor listing this section

1шт.

2

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

3

392240R91

BATTERY, Prestolite 1227X 6 volt, Serial Range: -8412

2шт.

3

406107R1

BATTERY, Prestolite 1225X 6 volt, Start Serial: 8413

2шт.

4

372355R11

SUPPORT

ASSY, combination rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 C-Z hex hd cap

2шт.

5

365503R1

SPACER

combination rear light

1шт.

6

350920R1

CLAMP

combination rear light

1шт.

7

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490, sealed beam unit, 371461R91 and rubber retainer, 676078R1

1шт.

102637

NUT,1/2"-13, G5

1шт.

8

387730R91

LIGHT

ASSY, shock proof head, only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1

1шт.

387731R1

SPACER, head light

6шт.

156327

SCREW, 1/4-20 x 1-1/4 C-Z cr-rec flat-hd mach

6шт.

9

ELBOW, engine oil pressure switch, refer to crankcase and related parts listing, in eng-5 parts catalog

1шт.

10

394129R91

LIGHT

ASSY, flashing safety warning, only serviceable items are lamp, 9417866, amber lens 899280R1, or red lens, 899279R1, dietz

1шт.

394262R1

WASHER

GASKET, rubber washer

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

11

394337R1

BRACKET, flashing light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 C-Z hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

12

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

13

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

14

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

15

NLS

NO LONGER SERVICED

rubber

1шт.

16

CAGE ASSY, cluster, refer to engine controls and instruments listing, section H

1шт.

17

SENDING UNIT, electric fuel gauge, refer to fuel tank and piping listing, section E

1шт.

18

SWITCH ASSY, ether push button, refer to ether starting listing, section E

1шт.

19

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

20

SWITCH ASSY, key, refer to engine controls and instruments listing, section H

1шт.

21

HOLDER ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

22

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

23

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt

2шт.

24

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-volt

4шт.

25

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, in eng-5 parts catalog

1шт.

26

376855R92

SWITCH

transmission oil pressure

1шт.

27

384396R1

SPADE TERMINAL,Male

TERMINAL, pressure straight

2шт.

28

PANEL, control LH, refer to engine controls and instruments listing, section H

1шт.

29

PANEL, control RH, refer to engine controls and instruments lislting, section H

1шт.

30

INDICATOR, electric air cleaner, refer to engine controls and instruments listing, section H

1шт.

31

384046R1

STEM

ROD, safety switch

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

32

362002R92

SOCKET

ASSY, electrical breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

TACHOMETER, refer to engine controls and instruments listing, section H

1шт.

34

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

35

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

36

382728R91

SWITCH

ASSY, safety starting

1шт.

37

397946R1

LIGHT

ASSY, gear selector

1шт.

38

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt

1шт.

39

377119R91

CABLE ASSY, breakaway connector, Serial Range: socket-ground

1шт.

40

377120R92

CABLE ASSY, combination rear, Serial Range: light-ground

1шт.

41

383892R91

CABLE ASSY, head light, Serial Range: junction-ground

1шт.

42

383593R91

CABLE ASSY, fuel gauge sending unit to multiple connector

1шт.

43

396500R1

CABLE ASSY, harness to head light junction

1шт.

44

398919R1

HARNESS ASSY, rear main cable

1шт.

45

398932R1

HARNESS

ASSY, front main cable

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

46

398923R1

HARNESS

ASSY, panel LH

1шт.

47

398924R1

HARNESS

ASSY, panel RH

1шт.

48

383614R92

CABLE ASSY, breakaway connector socket to rear light, Serial Range: -8180

1шт.

48

405881R1

CABLE ASSY, breakaway connector socket to rear light, Start Serial: 8181

1шт.

49

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

50

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

364910R1

BOOT

COVER, battery terminal

1шт.

51

534376R1

NEG BATTERY CABLE

CABLE ASSY, battery to battery, replaces 383617R91

1шт.

383619R1

COVER

battery cable terminal

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

52

394265R91

CABLE ASSY, fender warning light

1шт.

53

396505R1

CABLE, ether starting

1шт.

54

377120R92

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

55

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, front main harness short

3шт.

56

362666R1

CLIP

rear main harness, double

1шт.

57

363117R1

CLIP

front & rear main harness

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

58

362666R1

CLIP

rear main harness double

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

59

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main harness small

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

60

382622R1

CLIP, rear main harness short

2шт.

61

384557R1

CLIP

LH panel harness

1шт.

62

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

63

366460R1

CABLE CLIP

CLIP, safety switch cable

2шт.

64

362667R1

CLIP

flashing safety light cable

1шт.

65

370383R1

CLIP

battery to battery cable

1шт.

66

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, breakaway connector socket to combination rear light cable, on combination rear light bracket RH mounting bolt thru LH fender sheet 2

1шт.

67

396530R1

CABLE, Serial Range: horn-ground

1шт.

68

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

69

398681R1

HARNESS

CABLE, horn switch to junction block

1шт.

70

SWITCH ASSY, electric air cleaner, refer to air cleaner and connections listing, section E

1шт.

71

SOLENOID ASSY, ether starting, refer to ether starting listing section E

1шт.

72

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

73

LIGHTER CIGARETTE, refer to engine controls and instruments listing, section H

1шт.

74

SWITCH ASSY, horn, refer to engine controls and instruments listing, section H

1шт.

75

684554R1

CLIP, safety starting switch

1шт.

14995R1

BOLT

3/8-16 x 3/4 short crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

76

384238R1

HARNESS ASSY, safety starting switch

1шт.

77

383857R21

BRACE ASSY, head light mounting

1шт.

78

400726R1

CABLE ASSY, Serial Range: harness-flasher

2шт.

79

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, flasher unit cables

1шт.

80

384556R1

CLAMP

CLIP, transmission oil pressure switch

1шт.

81

384559R1

CLIP

rear main harness

1шт.

82

362123R1

CLIP

main harness large

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

83

384554R1

CLIP

engine oil pressure switch

1шт.

84

365584R1

CLIP

engine oil pressure switch

1шт.

85

382676R1

CABLE ASSY, horn switch to junction block

1шт.

86

398681R1

HARNESS

CABLE ASSY, horn switch to harness junction

1шт.

87

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

88

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness

1шт.

89

404395R1

CABLE

ASSY, breakaway connector socket, Start Serial: 8181

1шт.

90

405895R1

CABLE ASSY, harness junction to breakaway connector socket, Start Serial: 8181

1шт.

91

395228R1

CABLE CLIP

CLIP, breakaway connector socket, Start Serial: 8181

1шт.
