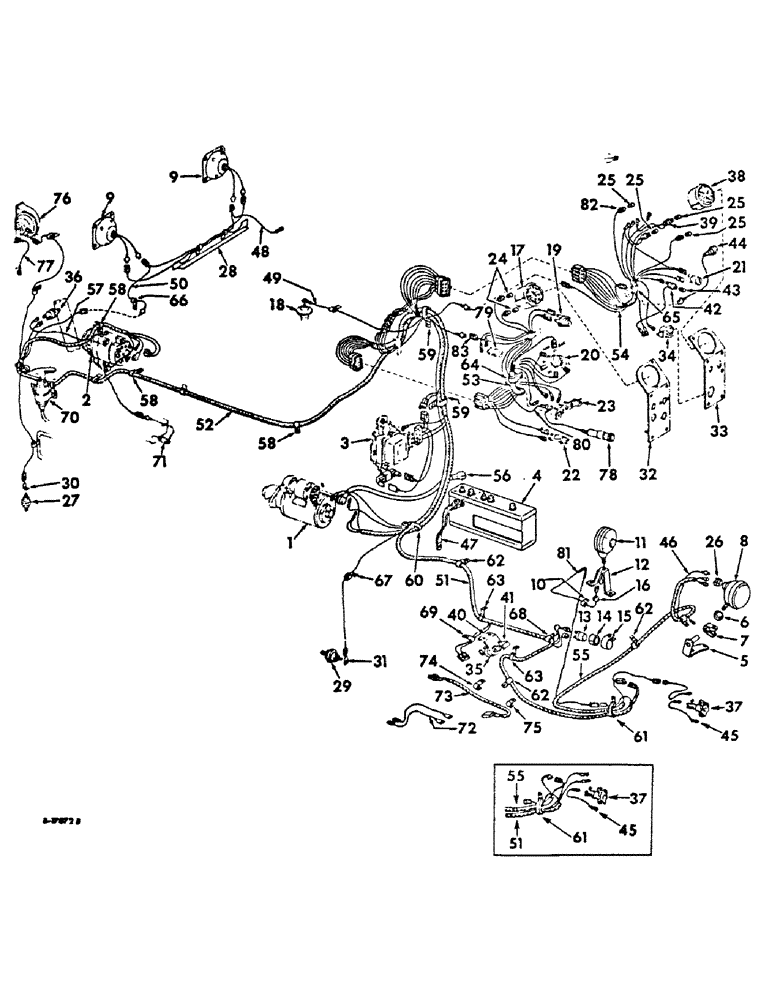

Запчасти Case IH 756 (G-14) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

405885R91

PARTS ACCESSORY, electric breakaway connector socket, serial no. 8181 and above, consists of ref. nos. 37, 55, 84, 85, 86 and attaching hardware

1шт.

1

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

2

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

3

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

4

392236R91

BATTERY, Prestolite 3327X 12 volt, Serial Range: -8412

1шт.

4

406104R1

BATTERY, Prestolite 3323X 12 volt, Start Serial: 8413

1шт.

5

372355R11

SUPPORT

ASSY, combination rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 C-Z hex-hd cap

2шт.

6

365503R1

SPACER

combination rear light

1шт.

7

350920R1

CLAMP

combination rear light

1шт.

8

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490, sealed beam unit, 371461R91 and rubber retainer, 676078R1

1шт.

102637

NUT,1/2"-13, G5

1шт.

9

387730R91

LIGHT

ASSY, shock proof head, only serviceable items are sealed BFAM unit, 373662R91 and rubber retainer, 676078R1

1шт.

387731R1

SPACER, head light

6шт.

156327

SCREW, 1/4-20 x 1-1/4 C-Z cr-rec flat-hd mach

6шт.

10

362667R1

CLIP

safety light cable

1шт.

11

3941129R91

LIGHT ASSY, flashing warning, only serviceable items are lamp 9417866, amber lens 899279R1, dietz

1шт.

394262R1

WASHER

GASKET, rubber washer

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

12

394337R91

BRACKET, flashing light

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 hex hd cap C-Z

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .0065 C-Z

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

14

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

15

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

16

144227

SPIDER, REEL

rubber

1шт.

17

GAGE ASSY, cluster, refer to engine controls and instruments listing, section H

1шт.

18

SENDING UNIT, electric fuel gage refer to fuel tanks and piping listing, section E

1шт.

19

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

20

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

21

SWITCH ASSY, key, refer to engine controls and instruments listing, section H

1шт.

22

HOLDER ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

23

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

24

9412348

BULB,C2B, #257, 14V

LAMP, no. 257, 12 volt, oil & amp telllite flasher

2шт.

25

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895, 12 volt, tachometer & gauge cluster, 3 used on LP gas engine tractors

4шт.

26

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

27

SWITCH ASSY, engine oil pressure, refer to crankcase related parts listing, in eng, 2 parts catalog

1шт.

28

383857R21

BRACE ASSY, head light mounting

1шт.

29

376855R92

SWITCH

transmission oil pressure

1шт.

30

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure switch

1шт.

31

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

1шт.

32

PANEL, control LH, refer to engine controls and instruments listing, section H

1шт.

33

PANEL, control RH, refer to engine controls and instruments listing, section H

1шт.

34

INDICATOR, electric air cleaner, refer to engine controls and instruments listing, section H

1шт.

35

382728R91

SWITCH

ASSY, safety starting

1шт.

36

SWITCH ASSY, electric air cleaner, refer to air cleaner and connections listing, section E

1шт.

37

362002R92

SOCKET

ASSY, electrical breakaway

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

38

TACHOMETER, refer to engine controls and instruments listing section H

1шт.

39

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

40

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk carriage

1шт.

102635

NUT,3/8"-16, G5

1шт.

41

384046R1

STEM

ROD, safety switch

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .0065

1шт.

42

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

43

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt

1шт.

44

397946R1

LIGHT

ASSY, gear selector

1шт.

45

377119R91

CABLE ASSY, breakaway connector, Serial Range: socket-ground

1шт.

46

377120R92

CABLE ASSY, combination, Serial Range: light-ground

1шт.

47

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

48

383592R91

CABLE ASSY, head light, Serial Range: junction-ground

1шт.

49

383593R91

CABLE ASSY, fuel gauge sending unit to multiple connector gasoline

1шт.

50

396500R1

CABLE ASSY, harness to head light junction

1шт.

51

398921R1

HARNESS ASSY, rear main cable, Serial Range: -8180

1шт.

51

405879R1

HARNESS ASSY, rear main cable, Start Serial: 8181

1шт.

399470R1

BOOT

INSULATER, terminal cover boot

1шт.

52

398922R1

HARNESS ASSY, front main cable

1шт.

53

398923R1

HARNESS

ASSY, panel cable LH

1шт.

54

398924R1

HARNESS

ASSY, panel cable RH, gasoline engine tractors

1шт.

54

398925R1

HARNESS ASSY, panel cable RH, LP gas engine tractors

1шт.

55

383614R92

CABLE ASSY, breakaway connector socket to rear light, Serial Range: -8180

1шт.

55

405881R1

CABLE ASSY, breakaway connector socket to rear light, Start Serial: 8181

1шт.

56

384198R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

364910R1

BOOT

COVER, battery terminal

1шт.

383618R1

COVER

battery terminal

1шт.

57

370387R91

CABLE

ASSY, vacuum, Serial Range: switch-ground

1шт.

58

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, front main harness short, LP gas engine tractors use two clips and following hardware

1шт.

102635

NUT,3/8"-16, G5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

59

362666R1

CLIP

front and rear main harness

2шт.

60

363117R1

CLIP

front and main harness

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

61

362666R1

CLIP

rear main harness double

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

62

362123R1

CLIP

rear main harness & RH panel harness

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

63

383622R1

CLIP

rear main harness short

2шт.

64

384557R1

CLIP

LH panel harness

1шт.

65

(Not used in this application)

1шт.

66

366460R1

CABLE CLIP

CLIP, HD light cable

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

67

384556R1

CLAMP

CLIP, transmission oil pressure switch cable

1шт.

68

384559R1

CLIP

rear main harness

1шт.

69

366460R1

CABLE CLIP

CLIP, safety switch cable

1шт.

70

COIL, ignition, refer to spark plugs, coil and cables listing, in eng-2 parts catalog

1шт.

71

VALVE ASSY, fuel shut-off, refer to carburetor listing, in eng-2 parts catalog

1шт.

72

400726R1

CABLE ASSY, Serial Range: harness-flasher

2шт.

73

384238R91

HARNESS ASSY, safety starting switch

1шт.

74

384554R1

CLIP

safety starting switch

1шт.

75

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, flasher unit cables

1шт.

76

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

77

396530R1

CABLE ASSY, Serial Range: horn-ground

1шт.

78

LIGHTER, cigarette, refer to engine controls and instruments listing, section H

1шт.

79

SWITCH ASSY, horn, refer to engine controls and instruments listing, section H

1шт.

80

382676R1

CABLE ASSY, horn to switch to junction block

1шт.

81

394265R91

CABLE ASSY, fender warning light

1шт.

82

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

83

398681R1

HARNESS

CABLE ASSY, horn switch to harness junction

1шт.

84

404395R1

CABLE

ASSY, breakaway connector socket, Start Serial: 8181

1шт.

85

405895R1

CABLE ASSY, harness junction to breakaway connector socket, Start Serial: 8181

1шт.

86

395228R1

CABLE CLIP

CLIP, breakaway connector socket, Start Serial: 8181

1шт.
