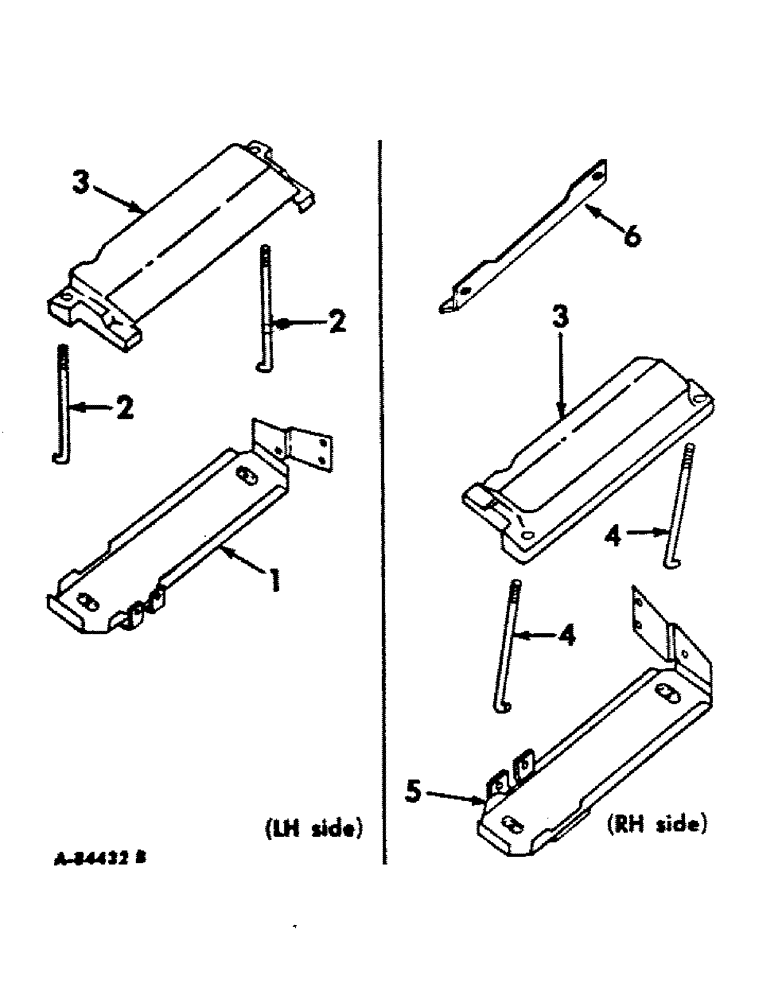

Запчасти Case IH 756 (G-07) - ELECTRICAL SYSTEM, BATTERY TRAY (06) - ELECTRICAL SYSTEMS

1

399048R1

TRAY

ASSY, battery LH, diesel engine tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

2

393161R1

ROD

battery hold down

2шт.

7500032

BUSHING

NUT, 5/16-18 wing

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065

2шт.

3

380415R11

COVER

ASSY, battery, carbureted, engine tractors, 2 used w/diesel engine tractors

1шт.

4

393161R1

ROD

battery hold down

2шт.

142745

NUT, WING

NUT, 5/16-18 wing

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .0065

2шт.

5

399055R1

TRAY

ASSY, battery RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

NLS

NO LONGER SERVICED

1шт.

311979R1

SCREW

W/ NYLON PELLET INSERT, 3/8-16 x 7/8 hex-hd cap

1шт.

1033741

WASHER, 13/32 x 13/16 x .065

1шт.

6

529237R1

ANGLE BAR

ANGLE, battery hold down

2шт.
