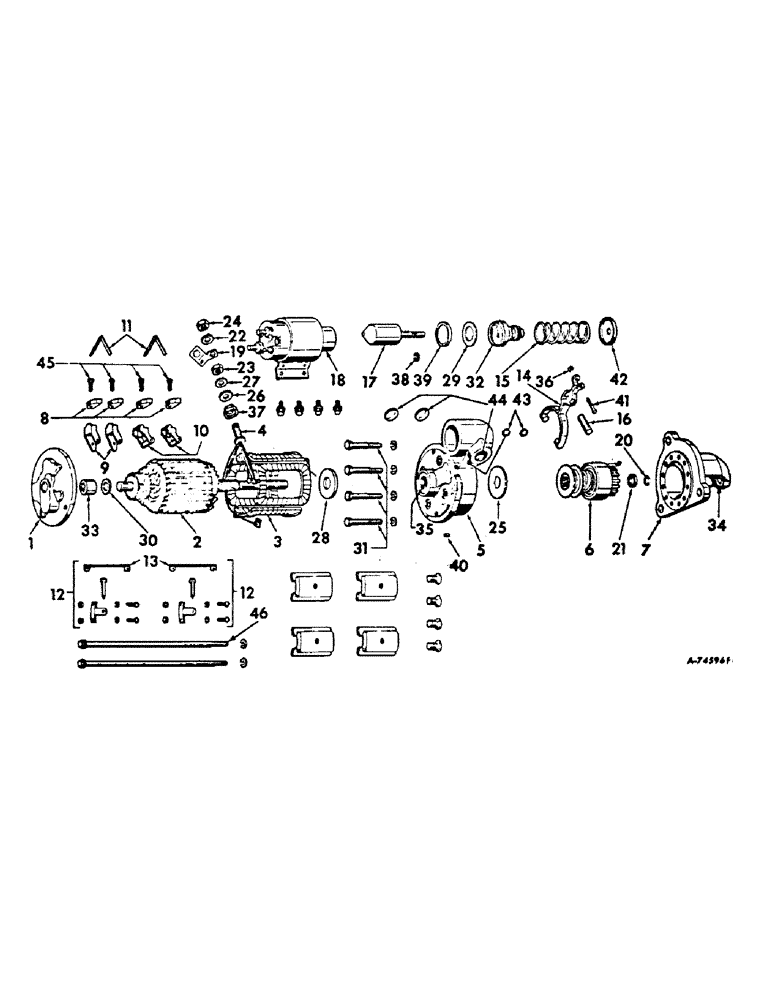

Запчасти Case IH 756 (G-06) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1113197

SPARE PART MOTOR ASSY, cranking 395758R91 12 volt

1шт.

104205A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104205A1C

CORE-STARTER

Return Number

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

1945617

HOLDER

FRAME W/BUSHING, 1872678 plug, 453465, plug, 810819, & wick, 1916439, commutator end

1шт.

810819

PLUG

PLUG, end

1шт.

1916439

WICK

WICK, commutator end

1шт.

2

1956903

ARMATURE

ARMATURE

1шт.

3

1945612

COIL ASSY.

COIL ASSY, field, 4 coils

1шт.

1914873

INSULATOR

INSULATION, field coil

2шт.

4

1933879

TERMINAL CONNECTOR

STUD, terminal

1шт.

5

1942241

HOUSING

HOUSING ASSY, lever, composed of (1) bushing 1933999, (1) plug 273913, (2) plug 9411375, (2) plug 1919572, (1) wick 1947350

1шт.

6

1948877

DRIVE

MOTOR ASSY, drive

1шт.

7

1967333

HEAD (CYLINDER)

HOUSING W/BUSHING, 1955994, plug, 453465 & wick, 1916439, drive

1шт.

1916439

WICK

WICK, drive end

1шт.

8

1906987

BRUSH

BRUSH

4шт.

9

1940477

HOLDER

HOLDER, brush ground

2шт.

10

1950546

HOLDER

HOLDER, brush insulated

2шт.

11

1945620

SPRING

SPRING, brush

2шт.

12

1945923

PACKAGE

PACKAGE, brush support

1шт.

13

1930694

CABLE

LEAD, ground

2шт.

14

1942245

LEVER

LEVER ASSY, shift

1шт.

15

1948521

SPRING

SPRING, lever

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

PLUNGER ASSY

1шт.

18

65479C1

SOLENOID

SWITCH ASSY, solenoid, optional with 1115510

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid, optional with 65479C1

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

1942249

CONNECTOR, ELEC

CONNECTOR CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

1928021

COLLAR

COLLAR, pinion stop

1шт.

22

110730

LOCK WASHER

WASHER, terminal stud lock

1шт.

23

805258

NUT

NUT, terminal stud, 5/32 in. thick

1шт.

24

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, , Terminal stud outer Jam, 3/8"-16, G5

1шт.

25

NLS

NO LONGER SERVICED

brake, between lever housing & motor drive

1шт.

26

1950029

WASHER

WASHER, insulating terminal stud

1шт.

27

805790

WASHER

WASHER, terminal stud plain

1шт.

28

1942283

PIN

WASHER, space, between lever housing & armature

1шт.

29

1942259

WASHER

WASHER, retainer spring

1шт.

30

1914842

WASHER

WASHER, commutator end space

1шт.

31

122077

PLUG

drive housing attaching

4шт.

32

1942257

BOOT

BOOT

1шт.

33

1872678

BUSHING

BUSHING, commutator end

1шт.

34

1955994

BUSHING

BUSHING, drive end

1шт.

35

1933999

BUSHING

BUSHING, lever housing

1шт.

36

1938376

RING, SNAP

RING SNAP RING, lever attaching pin snap

1шт.

37

1931783

INSULATOR

BUSHING, insulating terminal stud

1шт.

38

8415235

RING, spring retainer snap

1шт.

39

1942256

RETAINER

RETAINER, spring 1-13/64 in. hole

1шт.

40

1947350

WICK

WICK, lever housing

1шт.

41

1942253

PIN

PIN, lever attaching

1шт.

42

1942282

PIN

RETAINER, spring, 13/32 in. hole

1шт.

43

9419572

PLUG

PLUG, 5/8 diameter lever housing

2шт.

44

9411375

PLUG

PLUG, 1-3/16 diameter lever housing

2шт.

45

1959514

SCREW

SCREW, brush attaching

4шт.

46

809763

BOLT

BOLT, thru

2шт.
