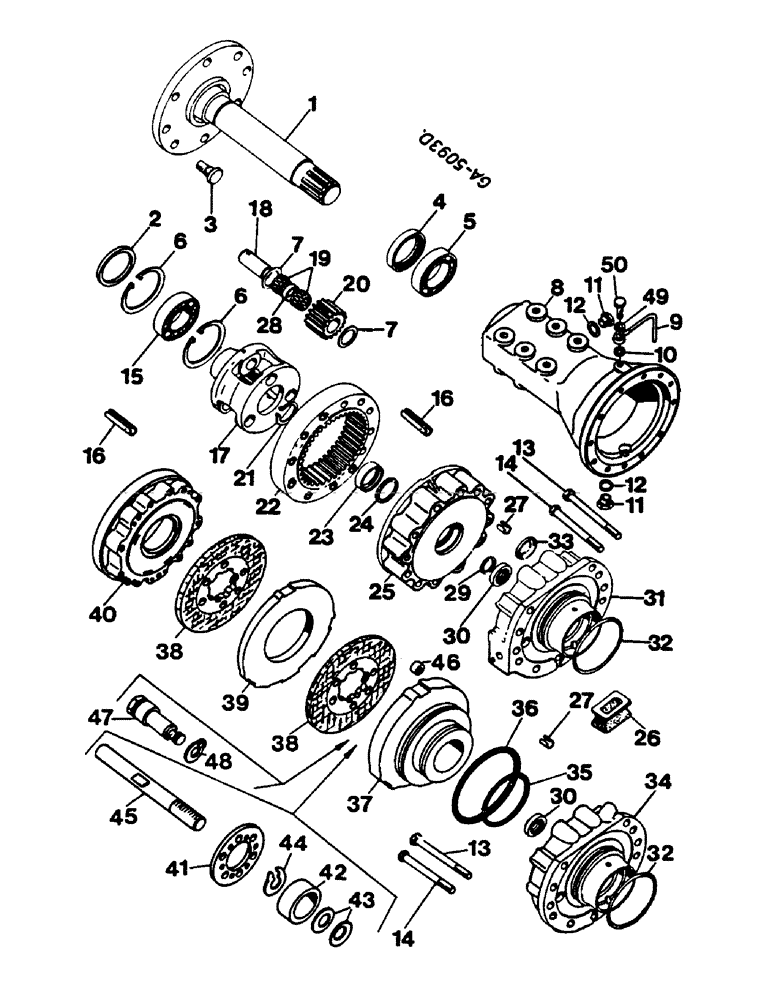

Запчасти Case IH 744 (1J13) - BEAR AXLES, BRAKES (04) - Drive Train

1

3220575R92

SHAFT

AXLE rear, with bolts

2шт.

1

3220508R92

AXLE

rear, for France only, 644, 744/ 844

2шт.

2

3145059R1

THRUST WASHER

thrust

2шт.

3

3399467R1

STUD

wheel hub, ribbed neck

16шт.

98782C1

WHEEL NUT,Wheel, Flg, M18 x 1.5

M18

16шт.

3230348R3

WASHER,18.75mm ID x 30.8mm OD x 7.75mm W

ball

16шт.

4

3145061R92

SEAL

oil

2шт.

5

712794R91

BEARING, BALL,65 mm ID x 100 mm OD x 18 mm

2шт.

6

933752R1

SNAP RING,M125, Int

CIRCLIP

4шт.

7

3147821R1

THRUST WASHER

thrust, 644

12шт.

7

3137111R1

THRUST WASHER

thrust, 744/ 844/ 844S

12шт.

8

3145079R1

AXLE CARRIER

rear

2шт.

8

3220510R1

CARRIER

rear axle for France only, 644/744/844

2шт.

9

3230894R1

TUBE,128 mm Length

breather

2шт.

10

934662R1

SEALING RING,10mm ID x 14mm OD x 1mm Thk

packing

2шт.

11

3059999R3

PLUG

4шт.

12

1964123C1

SEALING RING,M23 x 31 x 2

4шт.

13

3223408R1

BOLT

1/2" x 178 mm, 644/844S

4шт.

13

3223408R1

BOLT

744/844

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

14

3223407R1

SCREW

1/2" x 165 mm, 644/844S

20шт.

3223407R1

SCREW

1/2" x 165 mm, 744/844

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

20шт.

15

1964142C1

BALL BEARING,70mm ID x 125mm OD x 24mm W

ball

2шт.

16

932571R1

LOCK PIN,M16 x 80, Slotted

4шт.

17

3145090R91

CARRIER

planet, 644

2шт.

17

3145082R91

CARRIER

planet, 744/844/844S

2шт.

For version with mech. brake

1шт.

17

3230883R2

PINION CARRIER

GEAR CARRIER planet, 744/844/844S

2шт.

Q2930

LOCK PIN,M8 x 28, Slotted

6шт.

32148R1

PIN roll, 5 x 28 mm

6шт.

18

3145064R1

PIN

planet, 644

6шт.

18

3145065R1

PIN

planet, 744/844/844S

6шт.

For version with mech. brake

1шт.

18

3230884R1

PIN

planet, 744/844/844S

6шт.

19

3057210R91

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

needle, 644

12шт.

19

1964052C2

BEARING, NEEDLE,38mm ID x 46mm OD x 31.8mm W

744/844/844S

12шт.

19

3147248R91

BEARING ASSY

(set of two) with: 28, 744/844/844S

6шт.

20

3058529R91

GEAR-SET

planet, set of: 644

1шт.

20

3137108R91

PACKAGE

GEAR planet, set of: 744/844/844S

1шт.

21

800-1165

SNAP RING,M65, Ext

2шт.

22

3145092R1

GEAR

internal spur, 644

2шт.

22

3145088R1

GEAR

internal spur, 744/844/844S

2шт.

23

3058106R91

OIL SEAL

644

2шт.

24

3134943R1

O-RING

SCRAPER oil, 644

2шт.

24

3137608R1

SEAL,60.8mm ID x 73mm OD x 3.1mm Thk

oil, 644/744/844

2шт.

For version with mech. brake

1шт.

25

3148609R2

HOUSING

SPACER flange, 3145539R2, 644/744/844

2шт.

For version with mech. brake

1шт.

26

3142892R1

BELLOWS

LH, 644

1шт.

26

3142893R1

GROMMET

RH, 644

1шт.

27

932570R1

LOCK PIN,M16 x 20, Slotted

4шт.

28

3137109R1

SPACER

RING, 744/844/844S

6шт.

29

3134944R1

SEAL,45mm ID x 59mm OD x 3.1mm Thk

SPACER oil, 644

2шт.

30

3058107R91

SEAL,42.5mm ID x 65.18mm OD x 13mm Thk

oil

2шт.

31

3147890R92

HOUSING

brake, with: 23, 24, 29, 30 and 33, 644

2шт.

31

3224599R91

HOUSING

brake, with: 23, 24, 29, 30 and 33, 744/844

2шт.

For version with mech. brake

1шт.

61-36224

HEX SOC SCREW,5/8" - 11 x 1-1/2"

644/744/844

18шт.

21572R1

SCREW,Hex Soc Hd, 5/8" - 11 x 3 1/4"

644/744/844

2шт.

3057242R1

STUD

5/8 x 54 mm, 644

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER lock, , 644 5/8"

2шт.

329-1410

JAM NUT,Jam, 5/8"-11, G8

644

2шт.

3057321R1

DOWEL

SPARE PART PLUG, 644

1шт.

32

713791R1

O-RING,5mm Thk x 144mm ID, 75 Duro

2шт.

33

3059995R1

RETAINER

packing ring, 644

2шт.

34

3225985R94

BRAKE ASSY.

HOUSING, 744/844/844S

2шт.

For version with hydr. brake

1шт.

61-36224

HEX SOC SCREW,5/8" - 11 x 1-1/2"

744/844/844S

18шт.

9406825

HEX SOC SCREW,1/2" - 13 x 2 1/2"

744/844/844S

6шт.

3057242R1

STUD

5/8 x 54 mm, 744/844/844S

1шт.

For version with hydr. brake

1шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER lock, , 744/844/844S 5/8"

1шт.

329-1410

JAM NUT,Jam, 5/8"-11, G8

744/844/844S

1шт.

35

3230854R1

O-RING

744/844/844S

2шт.

For version with hydr. brake

1шт.

36

3230853R1

O-RING,5.84mm Thk x 164.2mm ID, Cl 7, 70 Duro

744/844/844S

2шт.

For version with hydr. brake

1шт.

37

3223252R7

PISTON

744/844/844S

2шт.

For version with hydr. brake

1шт.

38

3145546R92

BRAKE DISC

DISC, BRAKE 744/844/844S

4шт.

For version with hydr. brake

1шт.

39

3145548R1

DISC

PLATE spacer, 744/844/844S

2шт.

For version with hydr. brake

1шт.

40

3145542R3

FLANGE

housing brake, 744/844/844S

2шт.

For version with hydr. brake

1шт.

41

3223257R2

RETAINER

WASHER thrust, (xxx-xxx), 744/844/844S

2шт.

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

744/844/844S

12шт.

42

3223255R1

SPACER

SEAT spring, (xxx-xxx), 744/844/844S

12шт.

43

934985R1

SPRING WASHER

(xxx-xxx), 744/844/844S

96шт.

44

3223254R1

RING

WASHER spring, (xxx-xxx), 744/844/844S

84шт.

45

3223253R1

STUD

PIN, (xxx-xxx), 744/844/844S

12шт.

46

3223256R1

SPACER

ROLLER, (xxx-xxx), 744/844/844S

12шт.

47

3230978R1

ADJUSTER

(xxx-), 744/844/844S

12шт.

48

3221968R1

RING, SNAP

RING SNAP CIRCLIP, (xxx-), 744/844/844S

48шт.

49

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

50

930009R1

BANJO BOLT,M10 x 1 x 23mm

hollow

2шт.

3225985R94

BRAKE ASSY.

KIT repair, with: 34 - 37 and 47, 744/844/844S

1шт.
