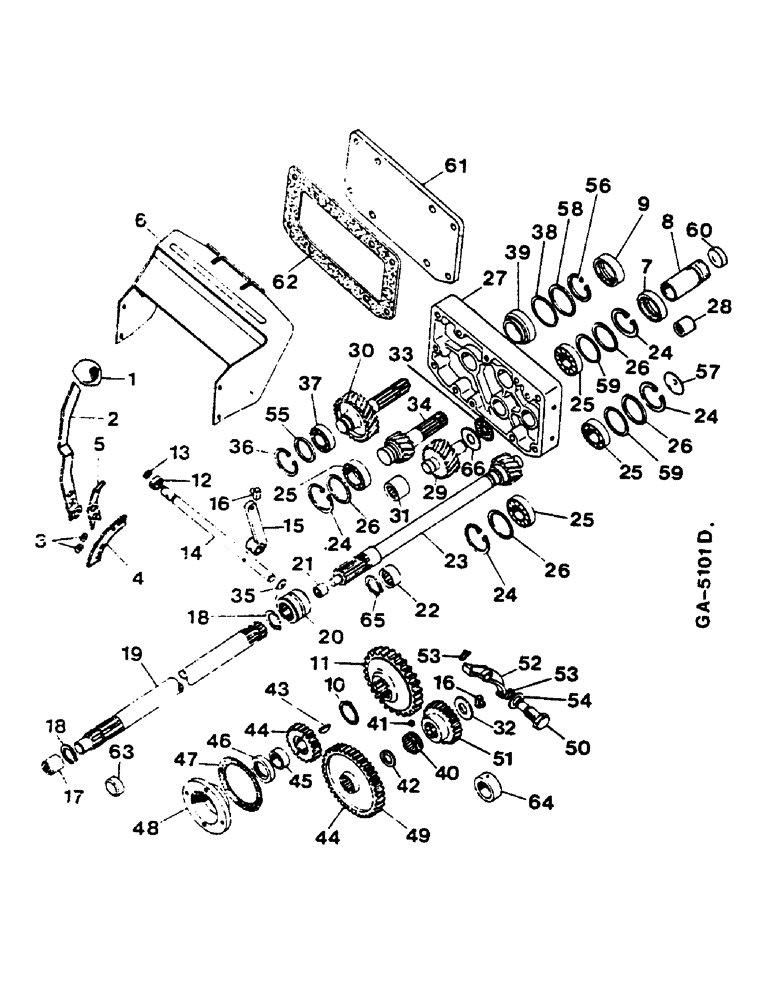

Запчасти Case IH 744 (1I15) - ENGINE PTO, GROUND SPEED PTO 644/744/844/844S (04) - Drive Train

1

3134919R2

KNOB

BALL shifter, lever

1шт.

1

3137539R2

KNOB

BALL shifter lever, for version with cab 2000

1шт.

2

3145866R94

LEVER

shifting, with: 5

1шт.

2

3229545R91

LEVER

shifting, with: 5, for version with cab 2000

1шт.

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

932738R1

LOCK PIN,3.5mm OD x 30mm L, Slotted

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16")

2шт.

4

3145864R2

SECTOR

SEGMENT

1шт.

5

3145868R1

PLATE

SPRING lock

1шт.

102684

RIVET,But Hd, 5/16" x 11/16"

2шт.

6

3230787R1

SHIELD

master

1шт.

6

1328017C1

SHIELD

master, version for Finland

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

7

3142411R91

OIL SEAL,40mm ID x 80mm OD x 10mm Thk

Order: 3142411R91

1шт.

8

3054841R2

TUBE

CAP pto guard, for splined shaft

1шт.

8

3054841R2

TUBE

CAP pto guard, for serrated shaft

1шт.

9

3142404R91

OIL SEAL

Order: 3142405R91

1шт.

10

J636303

RING, SNAP

RING SNAP CIRCLIP

1шт.

11

3057799R4

GEAR

ground speed pto, 54 teeth, see Figure: 1G2

1шт.

11

3147666R1

GEAR

ground speed pto, 54 teeth, see Figure: 1G2

1шт.

Version with speed reducer

1шт.

12

3145862R91

COLLAR

RING lock, with screw

1шт.

485-1258

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

1шт.

14

3145865R1

SHAFT

shifter pto

1шт.

15

3145023R91

LEVER

shifter

1шт.

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

932738R1

LOCK PIN,3.5mm OD x 30mm L, Slotted

1шт.

16

3057313R1

SLIDE

BLOCK

2шт.

17

3057316R91

CAGE

BEARING needle

1шт.

18

933075R1

SNAP RING,M40, Ext

CIRCLIP

2шт.

19

3145022R2

SHAFT

pto, front, 644 (A4430-B6350) G, 744-844S (A5385-B6350) G

1шт.

19

3223007R1

SHAFT

pto, front

1шт.

19

3224954R91

PACKAGE

KIT repair, with: 3145022R2, 3145028R3, 3145029R2, 644 (-A4429) G, 744-844S (-5384) G

1шт.

19

3223005R91

PACKAGE

KIT repair, with: 3145022R2, 3145019R3 3145029R2, 3145016R2 and 42, 644 (-A4429) G, 744-844S (-5384) G

1шт.

For four-wheel drive

1шт.

19

3217572R2

SHAFT

pto front for mower drive

1шт.

20

3145028R3

COUPLING

SHAFT, pto, (A4430-B6350) G, 744-844S (A5385-B6350) G

1шт.

20

3223006R1

COUPLING, BREAK AWAY

SHAFT, pto, 644-844S (B6351-) G

1шт.

20

3224954R91

PACKAGE

KIT repair, with: 3145022R2, 3145028R3, 3145029R2, 644 (-A4429) G, 744-844S (-5384) G

1шт.

20

3145019R3

COUPLING, BREAK AWAY

SHAFT, pto, (A4430-B6350) G, 744-844S (A5385-B6350) G

1шт.

For four-wheel drive

1шт.

20

3221042R1

COUPLING

SHAFT, pto, 644-844S (B6351-) G

1шт.

For four-wheel drive

1шт.

20

3223005R91

PACKAGE

KIT repair, with: 3145022R2, 3145019R3 3145029R2, 3145016R2 and 42, 644 (-A4429) G, 744-844S (-5384) G

1шт.

For four-wheel drive

1шт.

21

3057317R92

BEARING, NEEDLE,16mm ID x 20mm OD x 17mm W

1шт.

22

3057318R91

BEARING, NEEDLE,Needle, 39.99mm ID x 46.98mm OD x 19.9mm W

1шт.

23

3145029R2

SHAFT

pto, rear, (A4430-B6350) G, 744-844S (A5385-B6350) G

1шт.

23

3224441R1

SHAFT

pto, rear, 644-844S (B6351-) G

1шт.

23

3224954R91

PACKAGE

KIT repair, with: 3145022R2, 3145028R3, 3145029R2, 644 (-A4429) G, 744-844S (-5384) G

1шт.

23

3223005R91

PACKAGE

KIT repair, with: 3145022R2, 3145019R3 3145029R2, 3145016R2 and 42, 644 (-A4429) G, 744-844S (-5384) G

1шт.

For four-wheel drive

1шт.

24

3146818R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

25

1964252C1

TAPERED BEARING,40mm ID x 75mm OD x 26mm W

tapered

1шт.

26

3142413R1

RING

back-up

1шт.

27

3142325R2

HOUSING

pto 744 = (-B13229) G

1шт.

27

3225800R2

HOUSING

pto 744 = (B13230-) G

1шт.

61-36232

HEX SOC SCREW,5/8"-11 x 2"

1шт.

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

9406825

HEX SOC SCREW,1/2" - 13 x 2 1/2"

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

92-11062

LOCK WASHER,5/8"

3шт.

28

3232190R91

ROLLER BEARING,38.1 mm ID x 47.58 mm OD x 31.75 mm

1шт.

29

3142395R1

GEAR

intermediate, 38.10 mm "0" 744 = (-B13229) G

1шт.

29

3225802R2

GEAR

intermediate, 38.05 mm "0" 744 = (B13230-) G

1шт.

30

3142397R4

SHAFT

pto, 540 rpm

1шт.

31

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

needle

1шт.

32

3134194R1

WASHER,40mm ID x 60mm OD x 1mm Thk

Order: 3146247R1

1шт.

32

3221295R1

WASHER,40mm ID x 64mm OD x 1mm Thk

644-844S (B6351-) G

1шт.

33

3142432R91

NEEDLE BEARING,45mm ID x 58mm OD x 3mm W

needle

1шт.

33

3147274R91

BEARING, NEEDLE

with: 32

1шт.

34

3142401R2

PTO

POWER TAKE OFF SHAFT, 1000 rpm serrated

1шт.

34

3146377R91

GEAR-SET

SPARE PART SHAFT pto, 1000 rpm serrated with: 7 - 8, 24-26, 34 and 59

1шт.

34

3142418R2

SHAFT

pto, 1000 rpm splined

1шт.

34

3142503R91

CONVERSION PACKAGE

SHAFT pto, 1000 rpm splined with: 7 - 8, 24-26, 34 and 59

1шт.

35

41-13

GUARD,Exp, 13/16"

expansion

1шт.

36

3146817R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

37

1964246C1

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

tapered, Order: 3142399R91

1шт.

38

3142406R1

SHIM

0.1 mm (.004")

1шт.

38

3146815R1

SHIM

0.15 mm (.006")

1шт.

38

3142633R1

SHIM

0.2 mm (.008")

1шт.

38

3142634R1

SHIM

0.5 mm (.020")

1шт.

38

3142634R1

SHIM

1.0 mm (.040")

1шт.

39

1964245C1

TAPERED BEARING,45mm ID x 85mm OD x 20.75mm W

tapered, Order: 3142408R91

1шт.

40

3134195R1

NEEDLE BEARING CAGE,40mm ID x 45mm OD x 26.8mm W

needle, 644-844S (-B6350) G

1шт.

40

3221289R91

BEARING, NEEDLE

644-844S (B6351-) G

1шт.

41

211-1006

BALL,3/16" Dia

1шт.

42

3217217R2

RING

RING spacer, 5.00 mm

1шт.

42

3146058R2

WASHER

RING spacer, 5.60 mm

1шт.

42

3145020R1

WASHER

RING spacer, 6.10 mm, (A4430-B6350) G, 744-844S (A5385-B6350) G

1шт.

42

3146059R1

WASHER

RING spacer, 6.80 mm, (A4430-B6350) G, 744-844S (A5385-B6350) G

1шт.

42

3146060R1

WASHER

RING spacer, 7.50 mm, (A4430-B6350) G, 744-844S (A5385-B6350) G

1шт.

42

3223000R1

WASHER

RING spacer, 6.20 mm, 644 (-A4429) G, 744-844S (-5384) G

1шт.

42

3223001R1

WASHER

RING spacer, 6.80 mm, 644 (-A4429) G, 744-844S (-5384) G

1шт.

42

3223002R1

WASHER

RING spacer, 7.40 mm, 644 (-A4429) G, 744-844S (-5384) G

1шт.

42

3223003R1

WASHER

RING spacer, 7.62 mm, 644 (-A4429) G, 744-844S (-5384) G

1шт.

42

3224443R1

SPACER

RING spacer, 5.85 mm, 644-844S (B6351-) G

1шт.

42

3221043R1

SPACER

RING spacer, 6.50 mm, 644-844S (B6351-) G

1шт.

42

3221044R1

SPACER

RING spacer, 7.10 mm, 644-844S (B6351-) G

1шт.

42

3221045R1

SPACER

RING spacer, 7.70 mm, 644-844S (B6351-) G

1шт.

42

3221046R1

SPACER

RING spacer, 8.30 mm, 644-844S (B6351-) G

1шт.

43

218211

DRIVING SPROCKET

1шт.

44

3134541R91

GEAR-SET

of pto drive, 28/56 teeth (single clutch)

1шт.

45

3057315R1

SPACER

RING

1шт.

46

3131160R92

OIL SEAL

Order: 3145778R1

1шт.

47

3134518R1

GASKET,0.5mm Thk

1шт.

48

3057187R3

RETAINER

644/744

1шт.

48

3145775R1

FLANGE

RETAINER, 844/844S

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

49

3134542R92

GEAR-SET

drive, with hollow shaft, 56/28 teeth (double cl.)

1шт.

50

3057801R1

SCREW

lock

1шт.

51

3145016R2

PINION

GEAR shifter, ground speed pto, 30 teeth, (A4430-B6350) G, 744-844S (A5385-B6350) G

1шт.

51

3221041R1

PINION

GEAR shifter, ground speed pto, 30 teeth, 644-844S (B6351-) G

1шт.

51

3223005R91

PACKAGE

KIT repair, with: 3145022R2, 3145019R3 3145029R2, 3145016R2 and 42, 644 (-A4429) G, 744-844S (-5384) G

1шт.

For four-wheel drive

1шт.

52

3216412R1

LEVER

locking, see Figure: 1F7

1шт.

53

933120R1

SNAP RING,M15, Ext

CIRCLIP

2шт.

54

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.

55

3142409R3

DISC

RING back-up

1шт.

56

3146819R1

SNAP RING

1шт.

57

3142403R1

HOLE PLUG BUTTON

expansion, 744 = (-B13229) G

1шт.

57

3225803R1

PLUG

expansion, 744 = (B13230-) G

1шт.

58

3142412R1

RING

back-up

1шт.

59

3142414R1

SHIM

0.1 mm

1шт.

59

3146816R1

SHIM

0.15 mm

1шт.

59

3142630R1

SHIM

0.2 mm

1шт.

59

3142631R1

SHIM

0.5 mm

1шт.

59

3142632R1

SHIM

1.0 mm

1шт.

60

3225803R1

PLUG

COVER closing

1шт.

61

3133249R1

COVER

SPARE PART

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

92-11062

LOCK WASHER,5/8"

4шт.

62

3133250R1

GASKET

1шт.

63

3133251R1

PLUG

1шт.

64

3133252R1

SPACER

BUSHING, (in place of) 44

1шт.

3058102R1

PLUG

2шт.

65

3221294R1

RING, SNAP

RING SNAP CIRCLIP, 644-844S (B6351-) G

1шт.

65

933075R1

SNAP RING,M40, Ext

CIRCLIP, 644-844S (-B6350) G

1шт.

66

3134194R1

WASHER,40mm ID x 60mm OD x 1mm Thk

order: 3146247R1

1шт.
