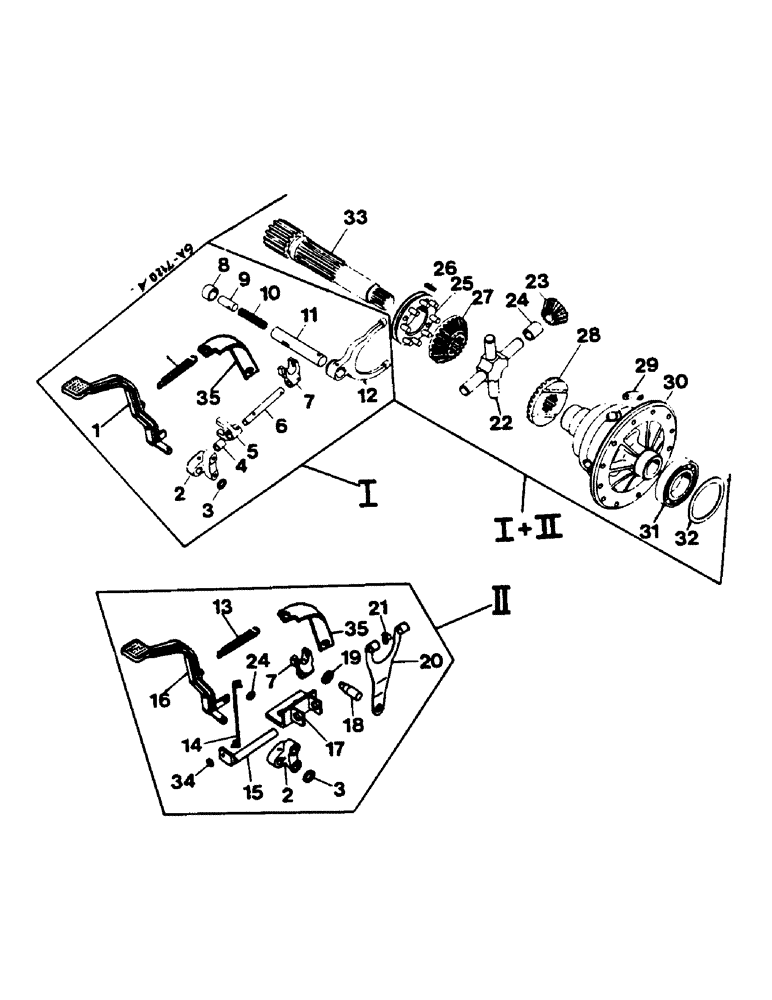

Запчасти Case IH 744 (1H18) - DIFFERENTIAL, DIFFERENTIAL LOCK (04) - Drive Train

1

3145071R91

PEDAL

for version with mech. brake

1шт.

Not for 844S

1шт.

718031R1

SET SCREW

BOLT, 5/16" x 45 mm, for version with mech brake

1шт.

Not for 844S

1шт.

425-105

NUT,5/16"-18, G5

For version with mech. brake

1шт.

Not for 844S

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

roll, 6 x 25 mm, for version with mech. brake

1шт.

Not for 844S

1шт.

934006R1

WASHER,M8 x 16 x 1.6

for version with mech. brake

1шт.

Not for 844S

1шт.

2

3057229R2

BRACKET

HOLDER, for version with mech. brake

1шт.

Not for 844S

1шт.

2

3145357R1

SUPPORT

HOLDER, version with hydr. brake

1шт.

Not for 644

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

1шт.

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

2шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

1шт.

3

495-81175

WASHER,21/32" x 1" x .120"

1шт.

4

3057213R1

BUSHING

for version with mech. brake

1шт.

Not for 844S

1шт.

5

3057228R1

CRADLE

LEVER, for version with mech. brake

1шт.

Not for 844S

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

roll, 6 x 25 mm, for version with mech. brake

1шт.

Not for 844S

1шт.

6

3147028R1

SHAFT

for version with mech. brake

1шт.

Not for 844S

1шт.

7

3057226R2

FORK

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

roll, 6 x 25 mm

1шт.

8

3057214R1

BUSHING

for version with mech. brake

1шт.

Not for 844S

1шт.

9

3057225R2

PIN

BOLT, for version with mech. brake

1шт.

Not for 844S

1шт.

932234R1

LOCK PIN,M6 x 40, Slotted

For version with mech. brake

1шт.

Not for 844S

1шт.

10

3057224R1

SPRING

for version with mech. brake

1шт.

Not for 844S

1шт.

11

3057072R21

SHAFT

for version with mech. brake

1шт.

Not for 844S

1шт.

12

3057223R2

FORK

for version with mech. brake

1шт.

Not for 844S

1шт.

932323R1

LOCK PIN,M6 x 45, Slotted

For version with mech. brake

1шт.

Not for 844S

1шт.

13

3233488R1

SPRING

return

1шт.

14

3145078R93

ROD

pedal, version with hydr. brake

1шт.

Not for 644

1шт.

14

3224604R91

ROD

pedal, version with hydr. brake

1шт.

On units with cab 2000

1шт.

Not for 644

1шт.

934791R1

COTTER PIN,M3.2 x 18

3.2 x 18 mm, version with hydr. brake

2шт.

Not for 644

1шт.

15

3145073R91

SHAFT

version with hydr. brake

1шт.

Not for 644

1шт.

16

3145080R91

PEDAL

version with hydr. brake

1шт.

Not for 644

1шт.

718031R1

SET SCREW

BOLT, 5/16" x 45 mm, version with hydr. brake

1шт.

Not for 644

1шт.

425-105

NUT,5/16"-18, G5

Version with hydr. brake

1шт.

Not for 644

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

roll 6 x 25 mm, version with hydr. brake

1шт.

Not for 644

1шт.

934006R1

WASHER,M8 x 16 x 1.6

version with hydr. brake

1шт.

Not for 644

1шт.

17

3145072R91

SUPPORT

shifter shaft, version with hydr. brake

1шт.

Not for 644

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

version with hydr. brake

2шт.

Not for 644

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

Version with hydr. brake

2шт.

Not for 644

1шт.

18

3145069R1

SHAFT

SPARE PART PIN, version with hydr. brake

1шт.

Not for 644

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Version with hydr. brake

1шт.

Not for 644

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

Version with hydr. brake

1шт.

Not for 644

1шт.

932234R1

LOCK PIN,M6 x 40, Slotted

Version with hydr. brake

1шт.

Not for 644

1шт.

19

3145060R91

OIL SEAL,30mm ID x 40mm OD x 8mm Thk

RING packing, version with hydr. brake

1шт.

Not for 644

1шт.

20

3145087R2

SPRING

leaf, fork shifter, version with hydr. brake

1шт.

Not for 644

1шт.

21

3145070R1

SLIDE

BLOCK, version with hydr. brake

2шт.

Not for 644

1шт.

22

3405564R1

GEAR-SET

SPIDER differential

1шт.

23

3405564R1

GEAR-SET

PINION differential bevel, set of: for version with mech. brake, Includes: Ref. 24

1шт.

Not for 844S

1шт.

24

3405564R1

GEAR-SET

PINION differential bevel, set of: for version with hydr. brake

1шт.

Not for 644

1шт.

25

3137118R12

COUPLING

shifter, for version with mech. brake

1шт.

Not for 844S

1шт.

25

3145067R92

COUPLING, BREAK AWAY

shifter, for version with hydr. brake

1шт.

Not for 644

1шт.

26

3057219R1

SPRING

pressure, for version with mech. brake

4шт.

Not for 844S

1шт.

27

3057068R1

PINION

GEAR differential bevel, 24 teeth

1шт.

28

3057069R1

PINION

GEAR differential bevel, 24 teeth

1шт.

29

713642R1

PLATE, LOCKING

bolt

4шт.

30

3137116R13

DIFFERENTIAL

HOUSING

1шт.

3137233R1

BOLT

1/2" x 26 mm

12шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

8шт.

31

1964142C1

BALL BEARING,70mm ID x 125mm OD x 24mm W

ball, for version with mech. brake

2шт.

Not for 844S

1шт.

31

787706R91

TAPERED BEARING,70mm ID x 125mm OD x 26.25mm W

for version with hydr. brake

2шт.

Not for 644

1шт.

32

3134980R1

SHIM

0.10 mm

1шт.

32

3134982R1

SHIM

0.14 mm

1шт.

32

3134984R1

SHIM

0.18 mm

1шт.

32

3134986R1

SHIM

0.50 mm

1шт.

32

3134987R1

SHIM

0.70 mm

1шт.

32

3134988R1

SHIM

1.00 mm

1шт.

33

3145091R1

GEAR

SHAFT differential, for version with mech. brake, 644

2шт.

Not for 844S

1шт.

33

3147700R91

PINION

SHAFT differential, for version with mech. brake, 744/844

2шт.

Not for 844S

1шт.

33

3145089R1

SHAFT

differential, for version with hydr. brake

2шт.

Not for 644

1шт.

34

714421R2

WASHER

for version with hydr. brake

2шт.

Not for 644

1шт.

35

3226412R1

ANGLE

1шт.
